Description

Product Introduction

The HIMA F8650X is a high-availability safety output module engineered for critical shutdown functions in SIL 3 certified safety instrumented systems. As a core component of HIMA’s F-series safety controllers, this digital output module drives final elements like emergency shutdown valves, fire dampers, and turbine trip solenoids with failsafe reliability. The F8650X features MOSFET-based switching technology that ensures arc-free operation in explosive atmospheres while providing real-time diagnostics for every output channel.

Designed for mission-critical applications, the HIMA F8650X implements redundant control paths with continuous cross-comparison to detect internal faults before they compromise safety functions. Its galvanic isolation (500V AC between field/controller) prevents fault propagation, while integrated short-circuit protection and thermal monitoring safeguard against field wiring issues. For oil refineries, power plants, and chemical facilities, the HIMA F8650X delivers deterministic response times under 15ms to execute safety actions when process limits are exceeded, preventing catastrophic incidents with TÜV-certified reliability.

Core Advantages and Technical Highlights

Ultra-reliable switching: Patented SafeMOS™ technology provides solid-state switching without contact wear, rated for >1 million operations at full load. Integrated snubber circuits suppress voltage spikes when de-energizing inductive loads.

Advanced diagnostics: Continuous channel health monitoring includes:

Load current measurement (±5% accuracy)

Open-circuit detection (no-load condition)

Short-circuit auto-shutdown with latching

MOSFET junction temperature supervision

Failsafe architecture: Implements De-energize-to-Trip philosophy. All outputs default to safe state on power loss, internal fault, or communication failure. Diagnostic faults trigger controller alerts without interrupting process.

Cross-monitoring: Dual microprocessors validate every output command. Mismatched commands trigger channel shutdown within 5ms and report detailed fault codes via HIMax bus.

Hazardous area ready: ATEX/IECEx Zone 2 certified. Compatible with intrinsically safe barriers for driving Zone 1/0 actuators. Reverse polarity protection withstands 80V DC miswiring.

Typical Application Scenarios

Emergency shutdown systems: In LNG terminals, the HIMA F8650X controls emergency isolation valves (EIVs) with SIL 3 reliability. Short-circuit detection prevents dangerous “fail-on” conditions during gas leaks.

Turbine protection: Executes steam turbine trip commands within 12ms when overspeed detected. Solid-state switching avoids contact welding risks inherent in relay-based systems.

Fire & gas systems: Activates smoke extraction dampers in offshore platforms. The module’s -40°C cold-start capability ensures operation in Arctic environments.

Chemical reactor safeguards: Controls quench system valves during runaway reactions. Load current monitoring verifies valve movement without additional instrumentation.

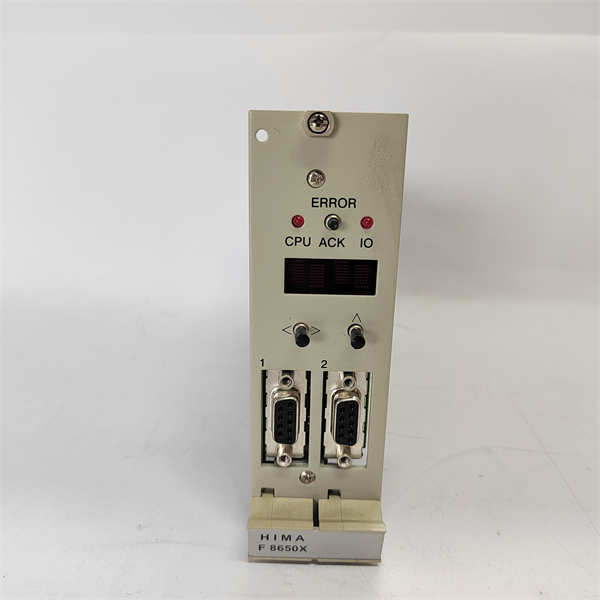

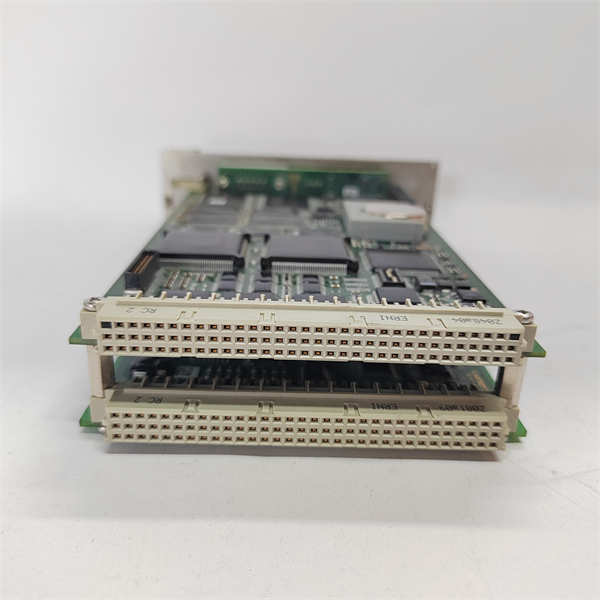

HIMA F8650X

Related Model Recommendations

F8650A: Redundant version (1oo2 architecture)

F8654X: Relay Output Module (for high-current loads)

F8621A: SIL 3 Digital Input Module (complementary)

F35 CPU: F-Series Processing Unit

F-I/O IS: Intrinsic Safety Interface

F8627X: Analog Input Module

PLX 42: Compact Safety PLC

Z7260-1000: IS Zener Barrier

Installation, Commissioning and Maintenance Instructions

Installation preparation: De-energize F-series rack before installation. Verify load compatibility (max 60V DC/2A). Use 16-18 AWG wiring for power connections. Install external fusing per local regulations (max 4A gG). Maintain 15mm clearance from heat sources.

Commissioning procedure: Configure channel properties in HIMatrix software. Perform forced output test to verify actuator response. Validate diagnostics by simulating faults:

Open-circuit test (disconnect load)

Short-circuit test (momentarily bridge output)

Overload test (150% load for 5s)
Confirm fault reporting in controller diagnostics.

Maintenance suggestions: Quarterly infrared scans to detect loose terminals. Annually verify load current readings against calibrated clamp meter. Replace after 500,000 operations or 15 years. Monitor status LEDs:

Green: Normal operation

Yellow: Warning (e.g., thermal derating)

Red: Critical fault (channel disabled)
Always replace with identical hardware revision.
