Description

Product Introduction

The ALSTOM MLU VER.A01 serves as the computational core of Speedtronic™ Mark IV turbine control systems, executing critical protection and sequencing logic for gas/steam turbines. This triple-redundant Main Logic Unit implements 2-out-of-3 voting architecture to achieve fault-tolerant control with zero single-point failure modes. The MLU VER.A01 processes analog inputs (temperature, pressure, speed), executes PID control loops, and manages turbine startup/shutdown sequences while continuously cross-validating results across three independent processor channels.

Designed for 24/7 power generation applications, this module coordinates with I/O cards like VTCC and CMU to implement API 670-compliant machinery protection. The A01 revision features enhanced electromagnetic compatibility with MIL-STD-461F filtering, critical for surviving electrical noise near turbine generators. As the “brain” of Mark IV systems, the ALSTOM MLU VER.A01 delivers deterministic sub-100ms response for trip events while maintaining precise control of fuel valves, inlet guide vanes, and auxiliary systems through all operating regimes.

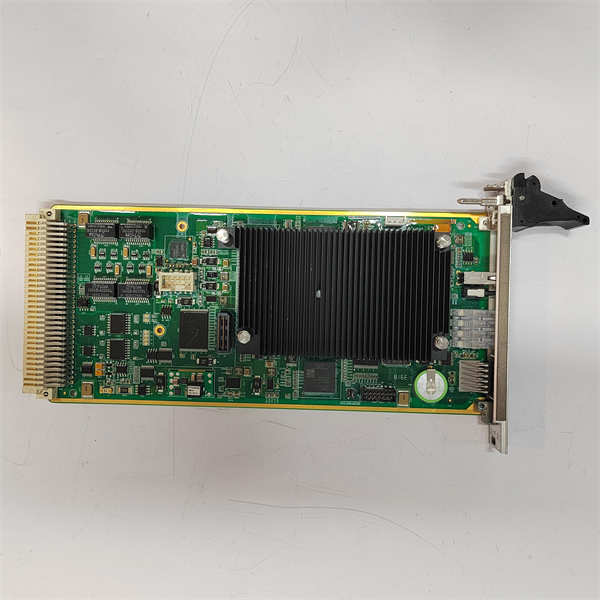

ALSTOM MLU VER.A01

Core Advantages and Technical Highlights

Ultra-reliable architecture: Triple 68040 processors execute identical code with hardware-based voter comparison. Mismatched outputs trigger automatic channel isolation while maintaining control via consensus. Mean Time Between Failure (MTBF) exceeds 250,000 hours.

Deterministic performance: Guarantees 50ms control loop execution even during complex sequencing (e.g., turbine roll). Watchdog timers detect processor hangs within 100ms, initiating failover.

Legacy compatibility: Direct replacement for earlier MLU versions with pin-compatible design. Supports Mark IV application code migration via PCMCIA transfer cards (AL-TRANS-01).

Advanced diagnostics: Continuous memory scrubbing detects/corrects bit errors. Channel health monitoring tracks:

Processor load (≤85% threshold)

Voter mismatch counts

Temperature gradients

Power supply ripple

Cyber-resilient design: Physical keylock prevents unauthorized code changes. Checksum validation at boot blocks corrupted firmware execution. No open TCP/IP ports eliminate network vulnerabilities.

Typical Application Scenarios

Gas turbine control: Manages fuel split between combustion chambers during load changes. The MLU VER.A01‘s triple redundancy prevents overspeed during generator decoupling events.

Steam turbine sequencing: Coordinates HP/IP/LP valve positioning during startup. Cross-channel validation ensures position feedback consistency before permitting speed ramp-up.

Hydroelectric governing: Controls wicket gates and runner blades with 20ms response. Voter logic rejects erroneous sensor signals during grid frequency disturbances.

Compressor anti-surge: Executes PID loops for recycle valves. Automatic channel failover maintains protection during processor maintenance.

Related Model Recommendations

MLU VER.00: Original version without EMC hardening

TREG-3: Turbine Regulator Controller (successor system)

VTCC Rack: Vibration Terminal Card Cage (I/O interface)

CMU 42015-115-00: Central Monitor Unit (vibration processing)

IS200TBCIH1C: GE Mark VIe equivalent controller

TK3-2E: Termination board for field wiring

PSU-MKIV-01: Redundant power supply unit

AL-PCMCIA-02: Code transfer memory card

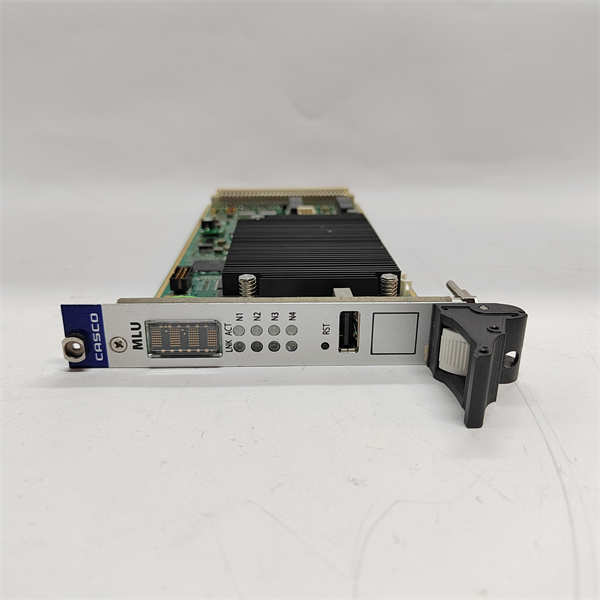

ALSTOM MLU VER.A01

Installation, Commissioning and Maintenance Instructions

Installation preparation: Disconnect all rack power sources and wait 10 minutes for capacitor discharge. Verify anti-static matting and grounded wrist straps. Inspect backplane pins for deformation. Confirm firmware compatibility with existing I/O cards. Prepare code transfer PCMCIA card pre-loaded with application logic.

Commissioning procedure: Insert module using alignment rails until backplane connectors seat firmly. Initialize processors sequentially (Channel A→B→C). Load application code via engineering port. Perform voter test by injecting deliberate processor errors. Validate trip response times using signal injection at 110% setpoints.

Maintenance suggestions: Biannual compressed air cleaning (≤15psi) of heat sinks. Annual verification of:

Power supply voltages (±2% tolerance)

Processor clock synchronization

Voter mismatch logs

Battery-backed RAM voltage (>3.0V)
Replace cooling fans every 3 years. Maintain duplicate MLU VER.A01 modules with synchronized firmware. Never mix hardware revisions in redundant channels.
