Description

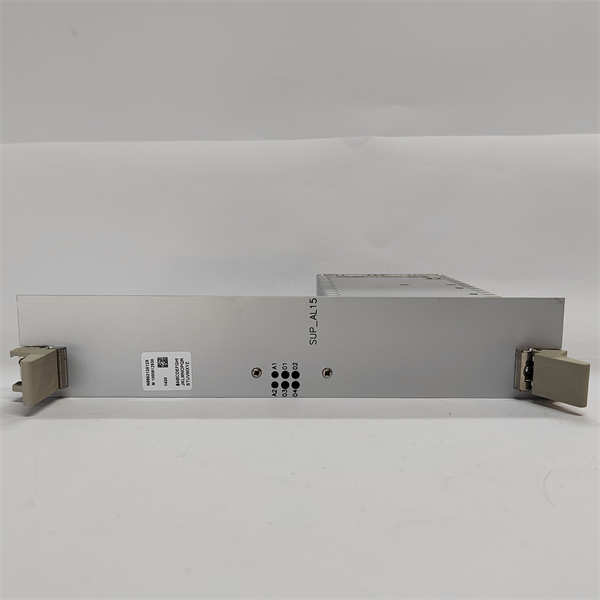

The ALSTOM N895313512X N95313012D SUP-AL  N895313000R constitute a high-redundancy vital processor pair for railway signaling systems within Alstom’s Smartlock SRS platform. These safety-certified modules form the computational core for critical track-side interlocking and Automatic Train Supervision (ATS) applications, processing complex logic while ensuring SIL4 compliance per CENELEC standards. Designed as complementary processing units, the N895313512X typically serves as the primary controller while the N95313012D SUP-AL acts as a hot-standby or voter unit, enabling continuous operation even during hardware faults. Their architecture employs triple-modular redundancy (TMR) principles with synchronized parallel processing and cyclical self-diagnostics to detect and mitigate failures instantaneously.

Engineered for 24/7 operation in harsh trackside environments, these modules deliver deterministic performance for vital functions like route setting, track vacancy detection, signal control, and level-crossing management. The N895313512X integrates with Alstom’s proprietary SAFE-bus communication system for secure data exchange with peripheral I/O modules and adjacent interlockings. When deployed with the base interface module N895313000R, the system achieves seamless backplane integration and power management. For rail operators, this combination provides uncompromising safety, minimized service disruptions through hardware redundancy, and backward compatibility with existing Smartlock SRS installations. The N95313012D SUP-AL specifically enhances supervision capabilities, enabling real-time health monitoring of the entire vital processing subsystem.

Technical Specifications

Main Features and Advantages

Ultra-High Safety Assurance: The N895313512X and N95313012D SUP-AL implement rigorous hardware/software diversity with continuous cross-comparison, achieving SIL4 certification for life-critical railway control. Mismatches trigger automatic fail-safe transitions to the healthy channel or predefined safe state within milliseconds.

Deterministic Performance: Engineered for real-time operation, these modules execute signaling logic cycles with microsecond precision, ensuring timely response to track events and train movements. The N95313012D SUP-AL actively supervises the primary processor’s execution timing and memory integrity, adding an extra layer of fault detection.

Extreme Environmental Robustness: Conforming to EN 50155 TX standards, the system operates flawlessly in temperatures from -40°C to +70°C and withstands severe humidity, dust, and electromagnetic interference (EMI) common in rail corridors. Conformal coating protects PCBs from condensation and corrosive atmospheres.

Integrated Diagnostics: Both modules generate detailed event logs and fault reports accessible via Ethernet. The N95313012D SUP-AL provides live status of the N895313512X, including processor load, memory usage, and synchronization health, enabling predictive maintenance.

Hot-Redundancy Support: The pair supports hitless switchover during failures. Maintenance or replacement of the N895313512X can be performed without interrupting active train movements, as the N95313012D SUP-AL assumes control seamlessly. The base module N895313000R simplifies field replacements with slide-in design and keyed connectors.

Application Field

The N895313512X/N95313012D SUP-AL combination is indispensable in safety-critical rail infrastructure worldwide. It serves as the core processing unit in Computer-Based Interlockings (CBI) for metro systems, managing complex track layouts, points/switches, and signal aspects to prevent collisions and derailments. In Mainline Railway Networks, these modules control station throat areas, junctions, and level crossings, processing axle counter or track circuit inputs to enforce movement authorities.

The N95313012D SUP-AL extends functionality to Automatic Train Supervision (ATS), where it monitors train schedules, regulates dwell times, and enforces energy-saving speed profiles in driverless metro lines like Alstom’s Urbalis solutions. Freight Corridors utilize this system for centralized traffic control across remote territories, leveraging its environmental resilience. High-Speed Rail installations depend on its deterministic response for moving-block signaling (ERTMS Level 2/3). Port and industrial shunting yards deploy this technology for conflict-free routing of rolling stock. Essentially, any application requiring fail-safe processing of vital railway logic under extreme conditions relies on the N895313512X and its supervision counterpart.

Related Products

N895313512A: Previous-generation vital processor with lower processing speed.

N895314000R: Enhanced base module with additional diagnostic LEDs.

N895210100R: Vital digital input module (16-channel) for track circuits.

N895220100R: Vital digital output module (8-channel) for signal lamps/point machines.

N895320000R: SAFE-bus optical repeater for extended backplane topologies.

N895350000R: Power supply module with redundancy support.

N95313512D SUP-AL: Supervision module compatible with older N89531351* series.

N895315000R: Non-vital communication gateway for SCADA integration.

N895300000R: Chassis/rack for module mounting.

Installation and Maintenance

Pre-installation preparation: De-energize the signaling rack and verify grounding per EN 50122-1. Inspect the N895313000R base for physical damage. Confirm firmware compatibility between the N895313512X and N95313012D SUP-AL using Alstom’s configuration tools. Prepare ESD-safe handling equipment. Review interlocking configuration files to ensure hardware mapping aligns with the new modules. Validate environmental conditions (temperature/humidity) meet EN 50155 requirements before power-up.

Maintenance recommendations: Monitor the N95313012D SUP-AL’s diagnostic webpage weekly for fault counters or synchronization warnings. Perform annual cleaning of optical SAFE-bus connectors using approved fiber-optic cleaning kits. Every 3 years, conduct a full functional safety test using Alstom’s test suite to validate SIL4 compliance. Replace backup batteries (if present) per manufacturer intervals. When swapping the N895313512X or N95313012D SUP-AL, always use Alstom-approved static-safe packaging and follow sequenced insertion/removal procedures to avoid bus contention. Archive configuration files before any hardware intervention.
