Description

The ALSTOM N897092520B vital processing module, integrated with the N897092057Y TRENO train occupancy detector and N897092500E interface base, forms a high-reliability SIL4 train detection subsystem for Alstom’s Smartlock 400 platform. This solution provides failsafe tracking of train positions through axle counting and track circuit technologies, enabling critical functions like block occupancy verification and level crossing activation. The N897092057Y TRENO employs dual-channel frequency-based sensors with adaptive signal processing to distinguish trains from environmental interference, while the N897092520B executes safety-certified occupancy algorithms with triple modular redundancy (TMR). The N897092500E base delivers galvanic isolation (>3000V AC) and surge protection, ensuring signal integrity in electrified rail corridors.

Designed for extreme environments, this subsystem achieves <20ms>N897092057Y TRENO features self-monitoring transceivers that compensate for ballast resistance variations and rail contamination. When paired with the N897092520B‘s cybersecurity-hardened processor, it prevents spoofing attacks through encrypted challenge-response authentication. The solution supports seamless integration with legacy track circuits via the N897092500E‘s configurable interface cards. For rail operators, this delivers uncompromising safety for train separation, reduces false occupancy alerts, and enables predictive maintenance through embedded degradation analytics.

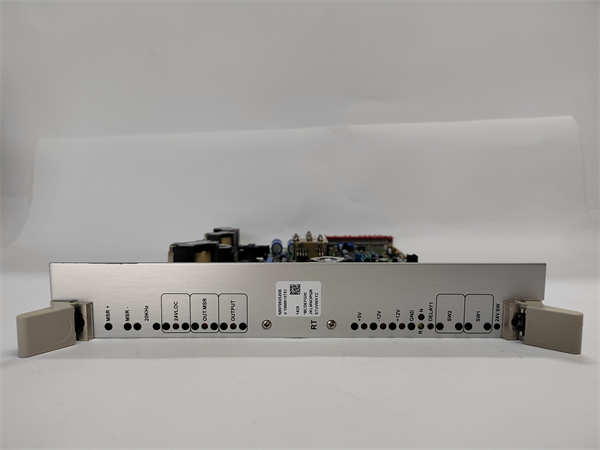

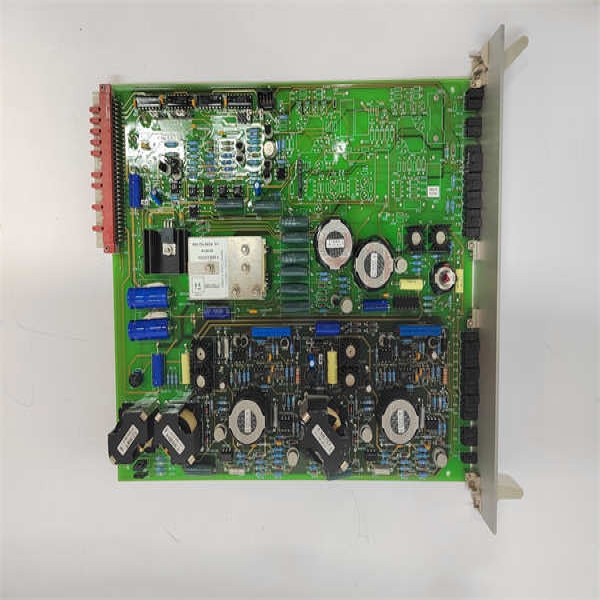

ALSTOM N897092520B N897092057Y TRENO N897092500E

Technical Specifications

Main Features and Advantages

Adaptive Signal Processing: The N897092057Y TRENO dynamically adjusts transmission power and frequency modulation to overcome ballast leakage resistance (up to 5Ω·km) and rail contamination. Real-time FFT analysis distinguishes train signatures from EMI noise in electrified zones.

Cyber-Resilient Detection: Implements challenge-response authentication between the N897092057Y TRENO and N897092520B using AES-256 encryption. Unauthorized access attempts trigger security logs and SIL4-safe state activation within 50ms.

Predictive Diagnostics: Continuous monitoring of track circuit parameters (impedance, attenuation, SNR) enables early detection of degradation trends. The N897092520B generates maintenance alerts for ballast contamination >3Ω·km or cable capacitance drift >10%.

High-Immunity Design: Triple-shielded transformers in the N897092500E reject >140dB traction harmonics. Galvanic isolation barriers prevent ground loops in mixed AC/DC rail networks. Conformal coating withstands salt fog (ISO 9227).

Redundancy Management: Hot-swappable modules support N+1 configurations. The N897092057Y TRENO provides dual-redundant sensor channels with automatic cross-validation. Mismatch triggers <15ms>

Legacy Interoperability: The N897092500E accepts interface cards for 50Hz/60Hz AC track circuits, DC track circuits, and third-party axle counters, enabling phased migration.

Application Field

This subsystem is deployed where failsafe train detection is critical. In high-density metro networks, it provides moving-block occupancy data for CBTC systems, with the N897092057Y TRENO‘s precise positioning enabling 90-second headways. For mainline railways, it secures level crossings by verifying track section clearance before barrier activation.

Freight corridors leverage its ballast immunity to maintain detection reliability in poorly maintained tracks. Tunnel evacuation systems depend on the N897092520B to confirm track vacancy before activating emergency walkway lighting. In mixed-traffic hubs, the solution distinguishes between trains and maintenance vehicles using signature analysis.

Coastal railways benefit from corrosion-resistant enclosures that withstand salt spray. Mining operations utilize the subsystem for heavy-haul train tracking, where the N897092500E‘s surge protection handles locomotive-generated transients. The cybersecurity features make it ideal for border crossings and nuclear transport routes where detection spoofing could have catastrophic consequences.

ALSTOM N897092520B N897092057Y TRENO N897092500E

Related Products

N897092521B: Enhanced processor with integrated SIL4 cybersecurity module

N897092058Y TRENO+: Detector with 5G interference rejection

N897092501E: Interface base with integrated battery backup

N897093100R: Axle counter evaluation module

N897095200A: Track circuit tuning unit

N897090000D: Weatherproof trackside junction box

N897092057X TRENO: Legacy version for 1.5kV DC systems

N897098800C: Fiber-optic extension kit

N897099000B: Diagnostic HMI panel
