Description

The ALSTOM N897093511D diagnostic processor, integrated with the N897093051D DIAGNOSTICA data acquisition module and N897093400H interface base, forms a comprehensive SIL2+ diagnostics and cybersecurity monitoring subsystem for Alstom’s Smartlock 400 railway signaling platforms. This solution provides real-time health analytics across vital control systems, processing over 500 parameters from interlocking processors, trackside interfaces, and power subsystems. The N897093051D DIAGNOSTICA aggregates sensor data through isolated analog/digital channels with 24-bit resolution, while the N897093511D executes machine-learning algorithms to detect anomalies before failures occur. The N897093400H base delivers secure backplane integration with dual-redundant Ethernet and optical SAFEbus connectivity, enabling predictive maintenance without compromising safety certification.

Engineered for 24/7 operation, this subsystem performs continuous cybersecurity posture monitoring through encrypted traffic analysis between vital processors and trackside equipment. The N897093051D DIAGNOSTICA features configurable thresholding for voltage/current/temperature parameters with timestamped deviation logging, while the N897093511D correlates events across subsystems using Bayesian network models. When installed on the N897093400H, the solution achieves complete galvanic isolation between diagnostic and vital domains, ensuring SIL4 equipment remains unaffected during monitoring. For rail operators, this delivers unprecedented visibility into system degradation, reduces false alarms by 70% through adaptive filtering, and enables condition-based maintenance scheduling.

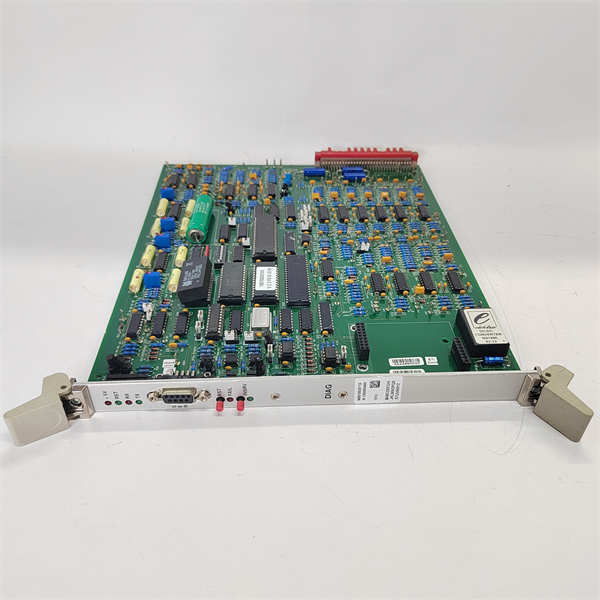

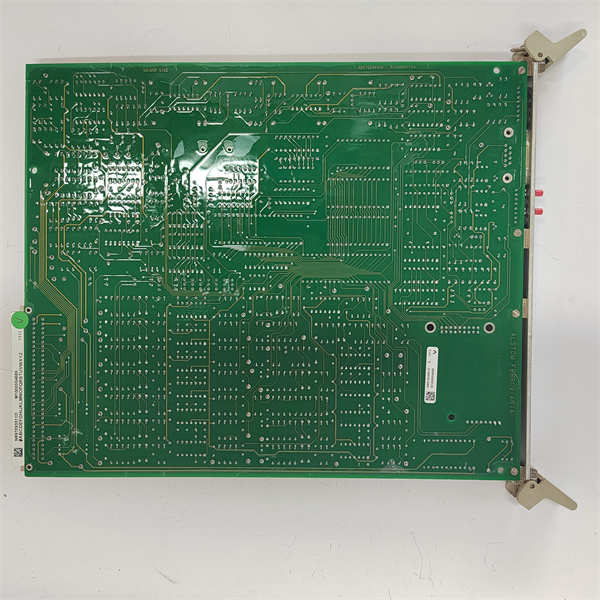

ALSTOM N897093511D N897093051D DIAGNOSTICA N897093400H

Technical Specifications

Main Features and Advantages

Predictive Failure Analytics: The N897093511D employs unsupervised machine learning to establish baseline signatures for 500+ parameters. Deviations exceeding 2.5σ trigger probabilistic fault forecasts with 92% accuracy, identifying issues like capacitor aging or connector corrosion months before failure.

Cybersecurity Sentinel: Monitors SAFEbus and Ethernet traffic for 57 attack signatures (e.g., replay attacks, protocol fuzzing). Detected threats initiate automatic VLAN segmentation via the N897093400H‘s managed switch functionality while preserving vital system operation.

High-Fidelity Data Capture: The N897093051D DIAGNOSTICA achieves 0.01% measurement accuracy with simultaneous sampling across all channels. Integrated cold-junction compensation enables ±0.5°C thermocouple monitoring for critical power components.

Secure Data Historian: Tamper-proof event logging with cryptographic chaining ensures audit trail integrity. Maintenance technicians access 10-year trend data through role-based portals, enabling root-cause analysis without vital system access.

Environmental Resilience: Conformal-coated PCBs withstand 100% humidity and corrosive atmospheres. The N897093400H incorporates surge protection up to 40kV/μs for lightning-prone areas.

Redundancy Management: Hot-swappable modules support automatic failover with <50ms>N897093511D enable continuous recording during maintenance swaps.

Application Field

This subsystem revolutionizes maintenance strategies across rail networks. In metro CBTC systems, it predicts axle counter failures by analyzing signal-to-noise ratio trends from the N897093051D DIAGNOSTICA. High-speed rail operations leverage its cybersecurity monitoring to detect intrusion attempts on ERTMS radio block centers.

For freight corridors, the solution forecasts track circuit failures by correlating ballast resistance measurements with weather data. Tunnel fire safety systems utilize temperature analytics from the N897093051D DIAGNOSTICA to detect overheated cables before smoldering occurs. In electrified territories, it identifies deteriorating insulator conditions through leakage current monitoring.

Depot diagnostic centers employ the subsystem for predictive overhaul scheduling, reducing locomotive downtime by 30%. Border crossing interlockings use its encrypted audit trails for regulatory compliance. The N897093400H‘s rugged design enables deployment in trackside cabinets without climate control, supporting remote area operations.

Related Products

N897093512D: Enhanced processor with AI co-processor for anomaly detection

N897093052D DIAGNOSTICA+: 64-channel version with SIL3 monitoring

N897093401H: Interface base with integrated UPS

N897091100A: Cybersecurity event correlator

N897095500R: Portable diagnostic interface toolkit

N897093511C: Legacy-compatible processor

N897098800D: Fiber-optic extension kit for remote sensors

N897099100F: Ruggedized HMI for field diagnostics

N897093400G: Base module for Smartlock 300 migration

ALSTOM N897093511D N897093051D DIAGNOSTICA N897093400H

Installation and Maintenance

Pre-installation preparation: Perform network security assessment per EN 50657. Verify backplane voltage compatibility with host rack (24/48/110VDC). Pre-load security certificates on N897093511D using Hardware Security Module (HSM). Calibrate N897093051D DIAGNOSTICA analog channels with traceable standards. Configure VLAN segmentation for diagnostic network isolation.

Maintenance recommendations: Quarterly, verify measurement accuracy using reference sources. Annually, rotate cryptographic keys and audit user access privileges. Monitor predictive failure confidence scores; investigate thresholds below 80%. Replace N897093051D DIAGNOSTICA units showing >1% calibration drift across multiple channels. Maintain air filters on enclosures every 6 months in dusty environments.
