Description

The Alstom TRVC062105000, TRVC070938000,  TRVC070938005.A belong to Alstom’s Track-Rail Vital Controller (TRVC) series, designed for fail-safe train detection and interlocking control in complex railway networks. These ruggedized modules serve as the computational core for trackside signaling systems, processing real-time data from track circuits, axle counters, and balises to enforce safe train separation and route locking. The Alstom TRVC070938005.A (a revision-enhanced variant) incorporates hardware-level cybersecurity features compliant with EN 50657, while the TRVC062105000 excels in legacy network integration. Engineered for SIL-4 (Safety Integrity Level) performance per EN 50129, these controllers operate with deterministic sub-100ms response times, ensuring uninterrupted service in extreme temperatures (-40°C to +85°C) and high-EMI environments like electrified corridors.

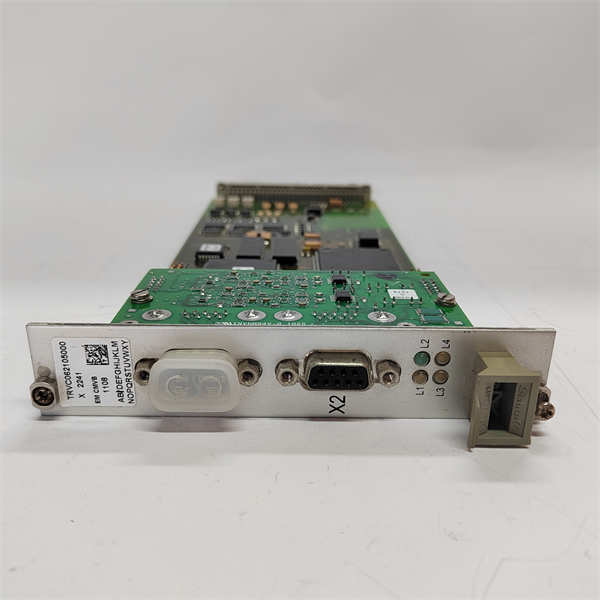

ALSTOM TRVC062105000 TRVC070938000 TRVC070938005.A

Technical Specifications

Note: Common specifications for TRVC series; variations noted where applicable.

Main Features and Advantages

Safety-Critical Determinism: All three Alstom TRVC models execute SIL-4 certified logic with hardware-enforced separation between safety and non-safety partitions. The TRVC070938005.A adds runtime intrusion detection, quarantining malicious commands without disrupting train movements.

Legacy and Future Integration: The TRVC062105000 supports relay-emulation modes for seamless upgrades of electromechanical interlockings, while TRVC070938000/005.A feature TSN (Time-Sensitive Networking) Ethernet for µs-level synchronization in CBTC (Communications-Based Train Control) systems.

Environmental Hardening: Exclusive to the TRVC070938005.A, nano-coated PCBs resist salt fog and humidity—critical for coastal or tunnel deployments. All models include surge protection up to 4kV on I/O lines.

Maintenance Optimization: Hot-swappable I/O cards (supported in TRVC070938xxx variants) allow component replacement during operations. Predictive algorithms analyze capacitor aging trends, triggering alerts 500+ hours before failure.

Application Field

High-Density Metro Networks: The TRVC070938005.A manages moving-block calculations in driverless metros (e.g., Singapore Circle Line), processing data from 200+ track sensors per minute.

Freight Classification Yards: TRVC062105000 controls hump yard retarders and switches, integrating with RFID wagon identification systems.

Cross-Border Corridors: TRVC070938000 dynamically switches signaling protocols (ETCS to PTC) at national borders using geofencing.

Tunnel Safety Systems: All TRVC variants interface with CO/fire sensors, initiating emergency ventilation sequences and blocking train entry during incidents.

Heavy Mining Railways: IP68-rated TRVC070938005.A operates in iron ore dust environments, monitoring axle loads on steep gradients.

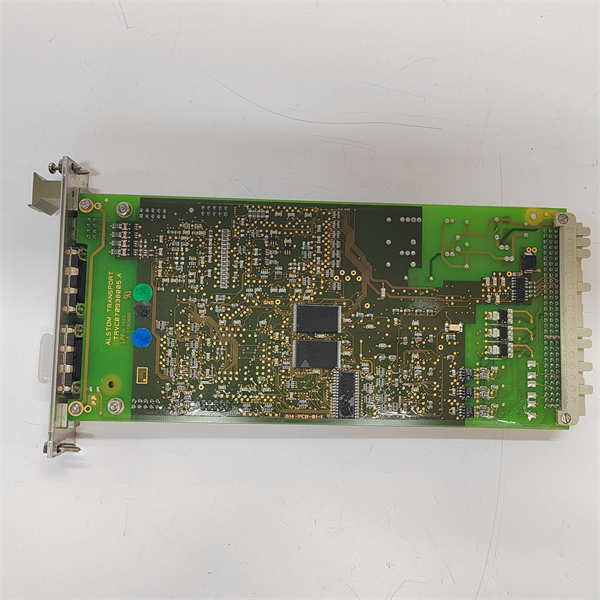

ALSTOM TRVC062105000 TRVC070938000 TRVC070938005.A

Related Products

Alstom TRVC070938010: Successor model with integrated 5G FRMCS support.

Alstom BACS-5000: Balise Access Control System for TRVC series integration.

Alstom SPS-8800: SIL-4 Power Supply Unit for redundant 24VDC input.

Alstom TMS-R: Remote diagnostics gateway for TRVC070938xxx health monitoring.

Alstom RIO-44: Rugged 16-channel I/O expansion module.

Alstom SDIAG-Pro: Configuration tool for all TRVC variants.

Installation and Maintenance

Pre-installation preparation: Verify DIN rail (35mm) or wall-mount clearance. For TRVC070938005.A, use shielded Cat7 cables with M12-X connectors for Ethernet. Ground chassis to traction earth grid (<0>

Maintenance recommendations: Quarterly compressed-air cleaning (max 0.2 bar) for dust-prone sites. For TRVC070938005.A, conduct annual dielectric strength tests on I/O isolation barriers. Replace cooling fan modules every 3 years in temperatures >60°C. Use only Alstom-approved firmware bundles for updates.
