Description

The ABB 5SHY3545L0009 3BHB013085R0001 3BHE009681R0101/GVC750BE101  is a high-power asymmetric Integrated Gate-Commutated Thyristor (IGCT) device engineered for ultra-reliable switching in medium-voltage drives and power conversion systems. As part of ABB’s industry-leading 5SHY 35xx series, this 91mm press-pack IGCT delivers 6.5 kV blocking voltage and 4 kA surge current capability, enabling efficient energy control in demanding applications like HVDC transmission, industrial drives, and renewable energy integration. The 5SHY3545L0009 features integrated gate-drive technology with low-inductance clamping, allowing turn-off times under 3 μs and reducing switching losses by 30% compared to GTO alternatives. Its hermetic, pressure-contact design ensures uniform thermal distribution and enables direct liquid cooling for operation up to 125°C junction temperature. Precisely matched to ABB’s GVC750BE101 gate unit, this IGCT provides fail-safe performance in series-stacked configurations for multi-megawatt systems, cementing its role as a cornerstone in ABB’s ACS 6000 drive platform for mission-critical power management.

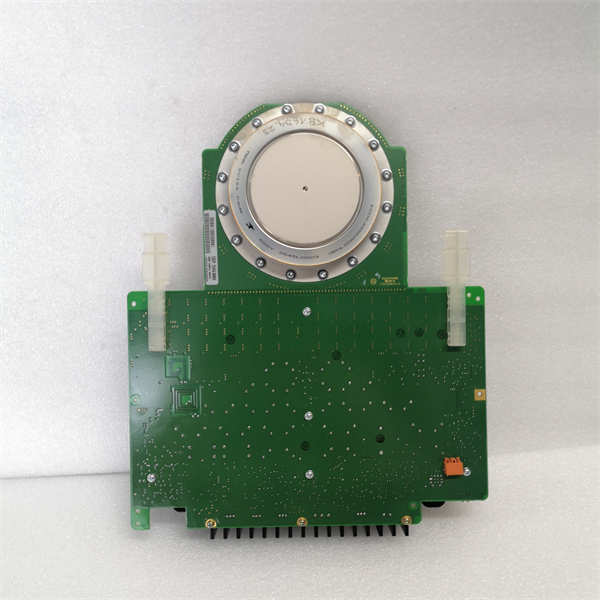

ABB 5SHY3545L0009 3BHB013085R0001 3BHE009681R0101 GVC750BE101

Technical Specifications

Main Features and Advantages

Ultra-Fast Switching Performance: The 5SHY3545L0009 achieves <3>GVC750BE101 gate unit, minimizing switching losses and enabling 500+ Hz operation in multi-level converters.

Robust Press-Pack Design: Hermetic ceramic-metal sealing eliminates bond wires, enhancing thermal cycling endurance. The 35kN uniform clamping force ensures low thermal resistance (0.015 K/W junction-to-coolant) for 150% overload capability.

Integrated Protection: Built-in di/dt control (1,000 A/μs) and dv/dt immunity (5 kV/μs) prevent destructive failures. The GVC750BE101 gate unit provides real-time monitoring of anode voltage and temperature for predictive maintenance.

Series-Stacking Capability: Precise parameter matching (±5%) allows series connection of up to 12 devices for 80 kV+ systems without external voltage balancing networks, reducing system complexity in HVDC applications.

Lifecycle Reliability: 50,000+ power cycling capability at ΔTj=80°C and MTBF > 300,000 hours, validated by ABB’s accelerated aging tests for 20-year service life.

Application Field

The ABB 5SHY3545L0009/GVC750BE101 dominates high-power conversion scenarios requiring fault-tolerant operation. In HVDC transmission, it enables voltage-sourced converter (VSC) stations for cross-grid interconnections, handling bidirectional power flows up to 1,500 MW with <0>

In marine propulsion, the IGCT powers Azipod® electric thrusters in icebreakers, withstanding -40°C cold starts. Renewable energy integrators use it in STATCOMs for grid stabilization at solar/wind farms, achieving 5 ms reactive power response. Steel mills leverage its surge capability for 15 MW rolling mill drives, while chemical plants depend on its corrosive-gas resistance for critical compressor VFDs.

Related Products

5SHY5045L0002: 10 kV/5.5 kA variant for ultra-high-voltage applications

5SGT40H4502: Symmetrical IGCT for current-source inverters

GVC750AE101: Gate unit for 4.5 kV IGCT series

5SDF10H4503: Snubber capacitor module for 5SHY3545L0009 protection

5SXE10-0181: Liquid-cooled heatsink for single-device mounting

ACS 6000 MV Drive: Primary application platform for this IGCT

3BHE039203R0101: IGCT test/reconditioning kit

5STP26N6500: Freewheeling diode complement

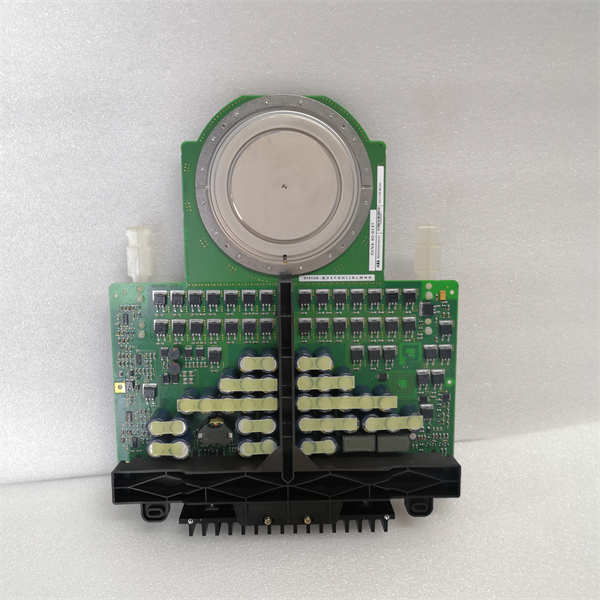

ABB 5SHY3545L0009 3BHB013085R0001 3BHE009681R0101 GVC750BE101

Installation and Maintenance

Pre-installation preparation: Verify coolant purity (≤0.5 μS/cm conductivity) and flow rate (≥6 L/min). Use calibrated torque wrench for 35 kN clamping force application. Perform dielectric test (10 kV AC/1 min) before power-up. Gate unit GVC750BE101 must be pre-tested with ABB’s HVDC Toolbox.

Maintenance recommendations: Monitor junction temperature via optical sensors monthly. Replace coolant every 24 months. After 10,000 operating hours, check clamping force and re-apply contact paste (ABB OxGard No. 1). Test gate unit trigger circuits annually with 5STP26N6500 dummy load. Never hot-swap – de-energize series stacks fully before servicing.
