Description

The ABB PFEA111-20 3BSE050090R20 is a high-performance Profibus DP communication interface module designed for ABB’s S800 I/O system, serving as a critical gateway between the Control Network and field devices in distributed automation architectures. This module enables seamless integration of Profibus DP networks (up to 126 devices) with ABB’s 800xA or AC 800M control systems, supporting real-time data exchange for process monitoring and control. The PFEA111-20 features dual-port functionality with integrated optical isolation (500V AC) to protect against ground loops and electrical noise in harsh industrial environments. With configurable baud rates up to 12 Mbps and automatic device replacement without re-addressing, it significantly reduces commissioning time. Compliant with PROFIBUS DP-V1 standard, this module delivers deterministic communication for time-critical applications while its hot-swappable design ensures minimal disruption during maintenance. As a cornerstone of ABB’s industrial networking ecosystem, the PFEA111-20 provides robust connectivity for power generation, oil & gas, and continuous process industries.

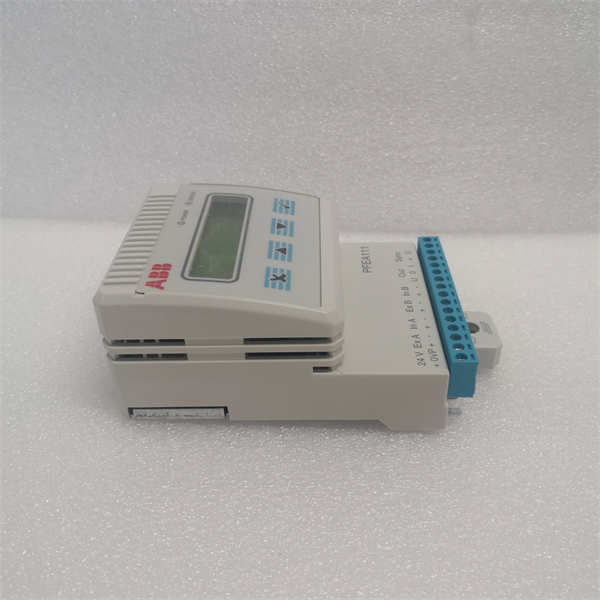

ABB PFEA111-20 3BSE050090R20

Technical Specifications

Main Features and Advantages

Dual-Port Reliability: Features two independent Profibus ports allowing segment separation or redundant network topologies. Optical isolation eliminates ground loop interference in electrically noisy environments like substations.

Plug-and-Play Configuration: Automatic baud rate detection and GSD file integration in Control Builder M engineering tools enable rapid commissioning. Automatic device replacement retains slave addresses during module swaps.

Advanced Diagnostics: Real-time monitoring of bus load, station status, and telegram errors through 800xA Asset Health Center. Front LEDs provide instant visual status (green=operational, red=fault).

Deterministic Performance: Supports PROFIBUS DP-V1 with 1 ms update cycles for time-critical applications like safety interlocks and motor control. Cyclic data exchange up to 244 bytes input/output.

Robust Design: Conformal-coated PCB withstands 95% non-condensing humidity. ATEX/IECEx certification (Ex nA IIC T4 Gc) enables deployment in Zone 2 hazardous areas.

Application Field

The ABB PFEA111-20 3BSE050090R20 excels in industries requiring deterministic Profibus connectivity. In power plants, it interfaces turbine governors and excitation systems with DCS, enabling millisecond-level synchronization for grid stability. Oil refineries deploy it for safety-critical applications like flame detection and emergency shutdown systems across classified zones.

For water treatment, the module connects remote pump stations with SCADA via Profibus PA through DP/PA couplers. In pharmaceutical manufacturing, it integrates weigh scales and filling machines under GMP data integrity requirements. Automotive production lines leverage its 12 Mbps speed for robotic weld controllers and conveyor encoder networks. Mining operations benefit from its vibration resistance (5g @ 10-150Hz) in crushing plant controls.

Related Products

PFEA112-20: Redundant Profibus DP module with cross-communication

CI854A: Profibus Master for AC 800M controllers

TB811: Terminal unit for PFEA111-20 wiring

SD822: S800 I/O station controller

SA801F: Fieldbus power supply module

TA516: Mounting rack for S800 I/O modules

3BSE020510R1: Profibus connector kit with terminators

PM864: AC 800M controller pairing

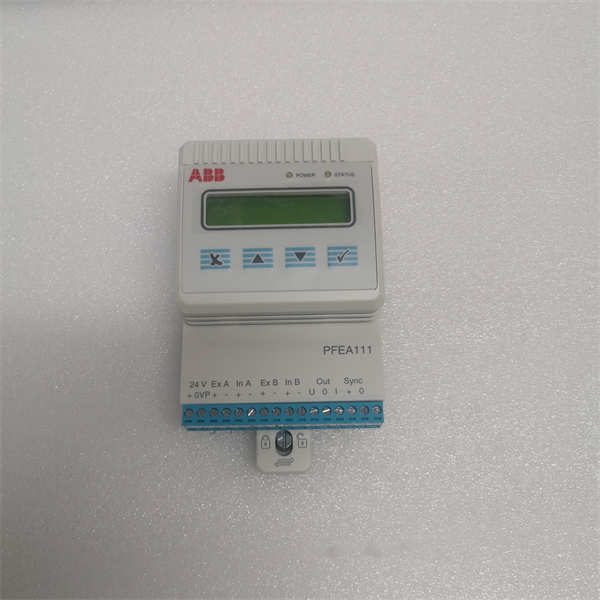

ABB PFEA111-20 3BSE050090R20

Installation and Maintenance

Pre-installation preparation: Verify S800 I/O rack compatibility (slot width ≥57mm). Configure GSD files in Control Builder M before hardware installation. Use shielded twisted-pair cables (Type A) with proper grounding. Set terminating resistors at segment ends.

Maintenance recommendations: Monitor bus load (<60>
