Description

The GE Grid Solutions N897164610L (legacy ALSTOM designation) is a precision servo valve driver module for the Mark VIe Speedtronic™ turbine control system, engineered to deliver ultra-reliable hydraulic actuator control in critical turbine applications. This high-integrity interface converts control signals from TMR processors into precise current outputs (4-20mA) to manage fuel, steam, or gas valves with millisecond response times. The N897164610L features triple-redundant signal conditioning and on-board diagnostics to detect open/short circuits while operating in extreme turbine deck conditions (-40°C to +85°C). Its SIL-2 certified design ensures fail-safe position control during overspeed events or emergency shutdowns, with galvanic isolation (1500V AC) protecting controllers from hydraulic system transients. As a core component in GE’s turbine management architecture, this module enables deterministic control for Frame 7/9HA gas turbines, steam turbines, and aeroderivative units while supporting HART communication for valve diagnostics.

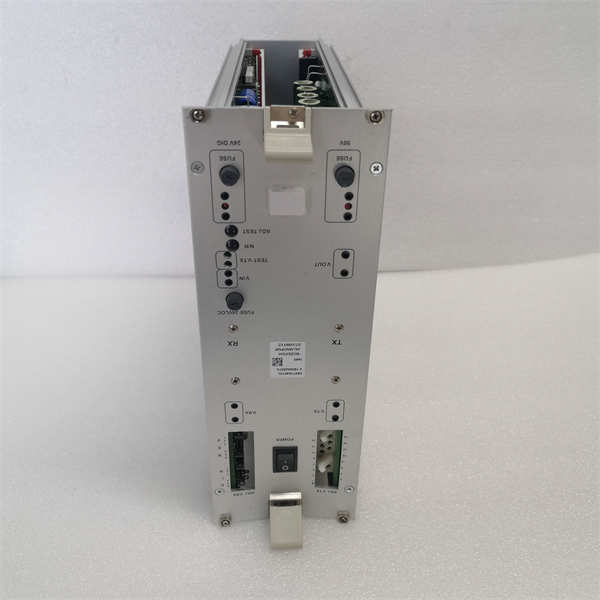

ALSTOM N897164610L

Technical Specifications

Main Features and Advantages

Triple-Redundant Safety Architecture: Three independent output channels with continuous cross-monitoring ensure valve control integrity. Voting logic initiates safe shutdown if channel deviation exceeds ±0.5mA.

Adaptive Current Control: Auto-compensation for cable resistance (up to 600Ω) maintains ±0.1% setpoint accuracy. HART digital overlay enables real-time valve health monitoring without signal interruption.

Transient Protection: Integrated TVS diodes and RC filters suppress 2kV surge transients per IEC 61000-4-5. Optical isolation prevents ground loops in hydraulic systems.

Predictive Diagnostics: Tracks valve hysteresis and step-response characteristics to detect sticking or wear. Triggers maintenance alerts when response time exceeds thresholds.

Hot-Replacement Capability: Module swap without turbine shutdown using Mark VIe’s live insertion tooling. Retains calibration data via non-volatile memory.

Application Field

The N897164610L is mission-critical for turbine hydraulic control:

Gas Turbine Fuel Systems: Positions main stop/control valves during load transients with 0.5% linearity

Steam Turbine Governing: Controls EH actuators for HP/IP/LP valves with <10ms>

Compressor Anti-Surge: Modulates IGV and blow-off valves during fast-recycle events

Hydroelectric Governors: Drives servo-proportional valves for wicket gate/pressure regulation

Aeroderivative Units: Manages fuel metering valves in LM2500/LM6000 for flame stability

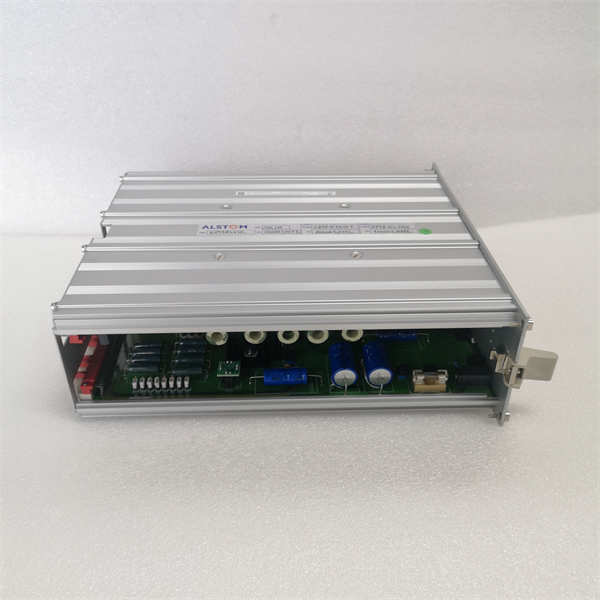

ALSTOM N897164610L

Related Products

IS215VCMCH2B: VME controller for servo loop closure

DS200DCFBG1B: Foundation Fieldbus interface module

DSVA133: Servo valve test station for calibration

TKISR3: Mark VIe simulation test kit

HVD632A: High-pressure hydraulic servo valve

IC754VSI12CTD: HART communicator for diagnostics

Siemens 6DR5210: Comparable SIPART PS2 positioner

GE EX2100e: Excitation system interface

Installation and Maintenance

Pre-installation preparation: Verify hydraulic valve impedance (20-600Ω). Disable turbine start sequence before installation. Use shielded twisted pairs with drain wires grounded at chassis. Calibrate using DSVA133 test station per GE Procedure GEI-100532.

Maintenance recommendations: Perform quarterly step-response tests via ToolboxST software. Clean MIL-DTL connectors annually with electronic contact cleaner. Monitor HART variables (valve travel, friction) monthly. Replace after 8 years service or 100,000 cycles.
