ALSTOM N897164624A Digital Output Module – Fast Response, Accurate Drive!

The GE Grid Solutions N897164624A (legacy ALSTOM designation) is a high-density vibration monitoring module for the Mark VIe Speedtronic™ turbine control system, engineered for precision machinery protection in critical power generation assets. This specialized interface acquires and processes signals from accelerometers and proximity probes across 16 channels with 100 kHz sampling rates, enabling real-time detection of bearing faults, shaft misalignment, and rotor imbalance in gas/steam turbines. The N897164624A integrates dual-path signal conditioning with IEPE constant-current excitation and dynamic range switching (0-20V/±5V), supporting industry-standard sensors from Bently Nevada and Vibro-Meter. Its SIL-2 certified architecture performs FFT analysis (up to 10,000 lines) and implements API 670-compliant protection logic including trip/alert thresholds with <3ms>

Get a Quote
Manufacturer:
Our extensive catalogue, is available now for dispatch to the worldwide.
  • Email: sales@slxytech.com
  • WhatsApp / Wechat：8617062388866
  • Phone：+86 17062388866

Description

The GE Grid Solutions N897164624A (legacy ALSTOM designation) is a high-density vibration monitoring module for the Mark VIe Speedtronic™ turbine control system, engineered for precision machinery protection in critical power generation assets. This specialized interface acquires and processes signals from accelerometers and proximity probes across 16 channels with 100 kHz sampling rates, enabling real-time detection of bearing faults, shaft misalignment, and rotor imbalance in gas/steam turbines. The N897164624A integrates dual-path signal conditioning with IEPE constant-current excitation and dynamic range switching (0-20V/±5V), supporting industry-standard sensors from Bently Nevada and Vibro-Meter. Its SIL-2 certified architecture performs FFT analysis (up to 10,000 lines) and implements API 670-compliant protection logic including trip/alert thresholds with <3ms>

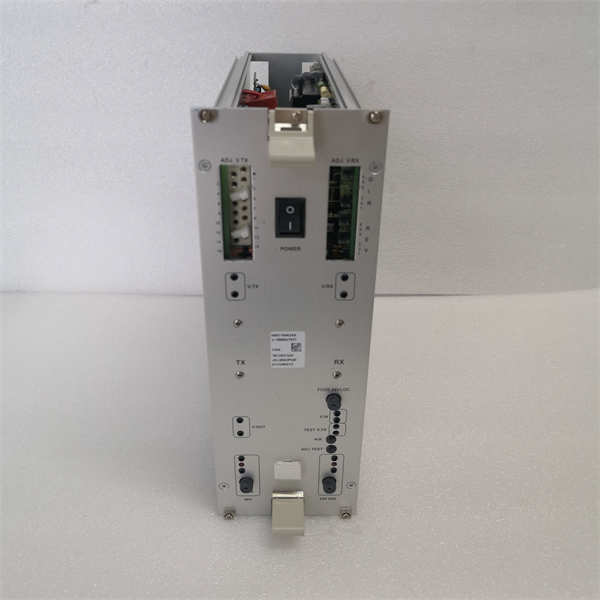

ALSTOM N897164624A

ALSTOM N897164624A

Technical Specifications

Parameter Name Parameter Value
Product Model N897164624A
Manufacturer GE Grid Solutions (formerly ALSTOM)
Product Type Vibration Monitoring Module
Input Channels 16 (configurable as 8x differential or 16x single-ended)
Input Types IEPE accelerometers, Eddy-current probes (mV/mm), Velocity sensors
Sampling Rate 100 kHz per channel
Frequency Range 0.5 Hz – 25 kHz (±0.1 dB)
Dynamic Range Switchable 0-20V/±5V with auto-scaling
Signal Conditioning IEPE constant current (4mA), Overload protection (30V)
Protection Functions Alert/Trip thresholds, Phase reference tracking, Gap voltage monitoring
FFT Resolution 100 to 10,000 lines (user-selectable)
Safety Integrity SIL 2 (IEC 61508)
Operating Temperature -40°C to +85°C (-40°F to +185°F)
Power Supply 24V DC ±10% (dual redundant)
Communication IEEE 1588 PTP time sync, Modbus TCP via backplane
MTBF > 220,000 hours

Main Features and Advantages

Multi-Technology Sensor Support: Auto-detects and configures IEPE accelerometers (0.5-25kHz), eddy-current probes (0.5-10kHz), and seismic velocity sensors (5-1000Hz) without manual jumper settings.

Advanced Diagnostic Algorithms: Embedded orbit analysis, waterfall plots, and demodulated bearing envelopes detect incipient faults like:



Imbalance (1x RPM)



Misalignment (2x RPM)



Bearing spalling (BPFO/BPFI frequencies)



Rubbing (sub-synchronous harmonics)



Dual-Speed Protection Logic: Implements independent slow-roll protection (<10>

Synchronized Multi-Channel Acquisition: IEEE 1588 Precision Time Protocol (±1µs accuracy) enables cross-machine phase analysis for coupled train diagnostics.

Cybersecurity Hardened: Secure firmware validation with encrypted bootloader prevents unauthorized parameter modifications in critical protection settings.

Application Field

The N897164624A safeguards rotating machinery across energy sectors:



Gas Turbine Generator Trains: Monorses combustion dynamics in DLN-2.6+ systems and detects blade passing frequencies during load transients



Steam Turbine Criticals: Tracks bearing wear in HP/IP/LP sections and detects steam-induced rotor instabilities



Hydroelectric Units: Identifies wicket gate torque pulsations and draft tube surges



Offshore Compressors: Detects subsea gearbox tooth failures and misalignment in motor-driven trains



Nuclear Feed Pumps: SIL-2 certified monitoring of RCP vibration during seismic events

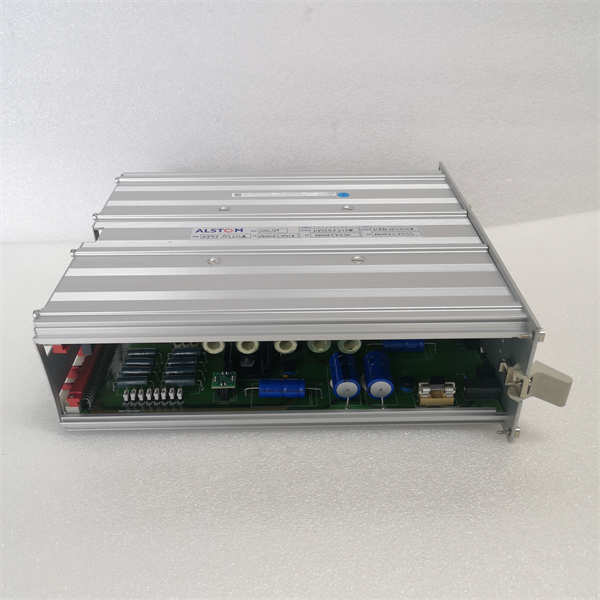

ALSTOM N897164624A

ALSTOM N897164624A

Related Products



N897164611M: SIL-3 servo driver for vibration-triggered trip systems



IS200VPROH1B: Proximitor signal conditioner module



Bently Nevada 3500/42M: Standalone vibration monitor for integration



TKIV1: Vibration calibration test kit



DS200DCFBG1B: Foundation Fieldbus gateway for data export



Vibro-Meter VM600: Compatible signal processing platform



Siemens 7ML5830: Comparable vibration monitoring system



GE Bently Nevada ADAPT.Wind: Analytics software for pattern recognition



Installation and Maintenance

Pre-installation preparation: Verify sensor compatibility (IEPE: 2-10mA bias; Eddy-current: -24V DC excitation). Route cables away from high-voltage sources (>1m separation). Apply conductive shielding paste to TNC connectors. Configure channel types in ToolboxST before backplane insertion.

Maintenance recommendations: Perform quarterly sensor calibration with TKIV1 test kit. Validate FFT alignment using reference shaker table annually. Replace electrolytic capacitors after 7 years service. Monitor baseline vibration spectra monthly for deviation trends.
