Description

The ABB UFC762AE101 3BHE006412R0101 is a high-performance PROFINET I/O Controller module for ABB’s 800xA distributed control system, enabling deterministic real-time communication between AC 800M controllers and industrial networks. Designed for mission-critical automation, this ruggedized module implements PROFINET Conformance Class C (IRT) with sub-100μs synchronization accuracy, supporting precise coordination of motion control, safety systems, and process sequencing. Its dual-port switch architecture allows line, star, or ring topologies with seamless media redundancy (MRP) for fault-tolerant operation in power generation, oil & gas, and manufacturing applications. The UFC762AE101 integrates cybersecurity features including MAC address filtering, VLAN segmentation, and signed firmware validation while operating reliably in extreme conditions (-40°C to +70°C). As a core component of ABB’s industrial IoT ecosystem, this module bridges IT/OT domains with OPC UA Pub/Sub capability for cloud analytics without compromising real-time control integrity.

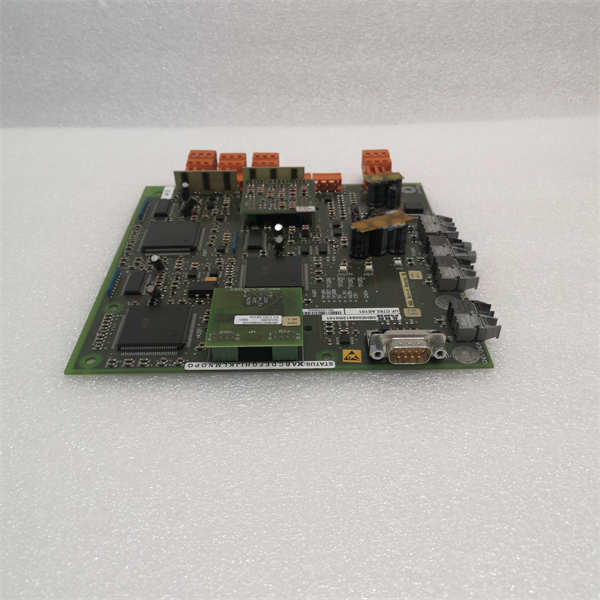

ABB UFC762AE101 3BHE006412R0101

Technical Specifications

Main Features and Advantages

Deterministic IRT Performance: Hardware-assisted isochronous real-time (IRT) processing enables microsecond-level synchronization for motion control applications like turbine governors and robotic assembly lines.

Fault-Tolerant Networking: Media Redundancy Protocol (MRP) guarantees <200ms>

Integrated Cybersecurity: Hardware-enforced MAC whitelisting prevents unauthorized device access. VLAN segmentation isolates safety traffic (PROFIsafe) from standard data streams.

Seamless 800xA Integration: Auto-discovers AC 800M controllers via Control Builder. Embedded OPC UA server (Pub/Sub) streams process data to ABB Ability™ cloud without additional gateways.

Ruggedized Design: Conformal-coated PCB and corrosion-resistant connectors (M12 option) withstand vibration (5g) and humidity (95% non-condensing) in offshore/substation environments.

Application Field

The UFC762AE101 3BHE006412R0101 excels in time-sensitive industrial networks:

Power Generation: Synchronizes gas turbine governors with excitation systems using PROFINET IRT for <2ms>

Automotive Manufacturing: Coordinates robotic welding cells and conveyors with 250μs cycle times

Oil & Gas Platforms: Implements safety instrumented functions (SIF) via PROFIsafe for emergency shutdown valves

Pharmaceutical Packaging: Enables GMP-compliant batch tracking with OPC UA data diarization

Water Treatment: Manages pump station synchronization during flood events with MRP ring topology

Related Products

PM864AK01: AC 800M controller for UFC762AE101 integration

CI871K01: PROFIBUS DP-V1 communication module

UFC760BE101: PROFINET I/O Device counterpart

SD822: S800 I/O station controller

3BSE050090R20 (PFEA111): Legacy PROFIBUS module upgrade path

ABB Ability™ Edge Gateway: Cloud connectivity extension

Siemens SCALANCE XC-200: Comparable industrial switch

Hirschmann RSP35: Alternative rugged PROFINET switch

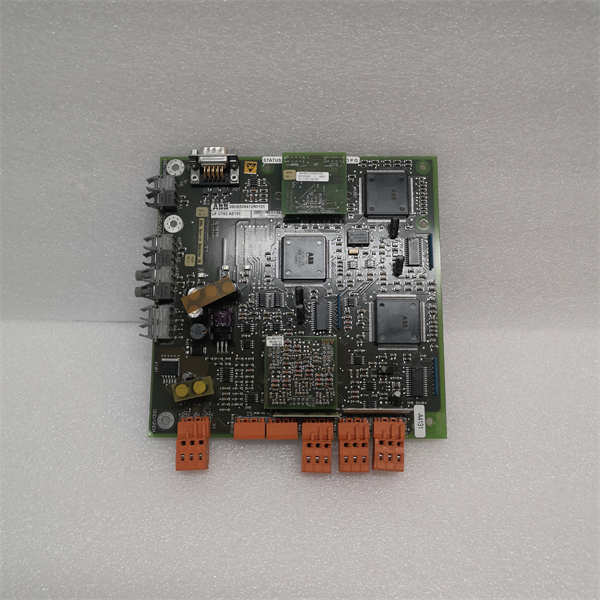

ABB UFC762AE101 3BHE006412R0101

Installation and Maintenance

Pre-installation preparation: Verify 800xA system compatibility (v6.1.1+). Pre-configure device names and IP addresses in Control Builder. Use shielded CAT6A cables with 360° grounding for EMI immunity.

Maintenance recommendations: Monitor network load (<70>50°C environments. Validate IRT synchronization annually with precision time protocol analyzers.
