Description

The ABB PCD235B1101 3BHE032025R1101 represents the cutting edge of generator protection within ABB’s Relion® 600 series. This Intelligent Electronic Device (IED) is engineered to safeguard medium-to-large synchronous generators across utility, industrial, and renewable energy facilities, delivering comprehensive fault detection, advanced monitoring, and seamless grid integration. As a core component of the REG670 platform, the ABB PCD235B1101 3BHE032025R1101 integrates multiple protection functions – including high-speed differential (87G), stator earth fault (64G/27TN), loss-of-excitation (40), and reverse power (32) – into a single, robust unit. Its modular design supports flexible configuration for complex generator-transformer block schemes, while dual Ethernet ports and native IEC 61850 Ed 2.0 communication ensure interoperability within modern digital substations.

Positioned as a mission-critical asset, the ABB PCD235B1101 3BHE032025R1101 minimizes unplanned downtime through precise fault discrimination and predictive diagnostics. Its advanced algorithms handle challenging scenarios like generator breaker failure (50BF) or inadvertent energization (50/27), while synchrocheck (25) and voltage regulation support enable safe reconnection to the grid. Designed for harsh environments, this IED delivers unmatched reliability, making the ABB PCD235B1101 3BHE032025R1101 the cornerstone of generator protection strategies demanding cybersecurity resilience (IEC 62443), operational excellence, and lifecycle cost efficiency.

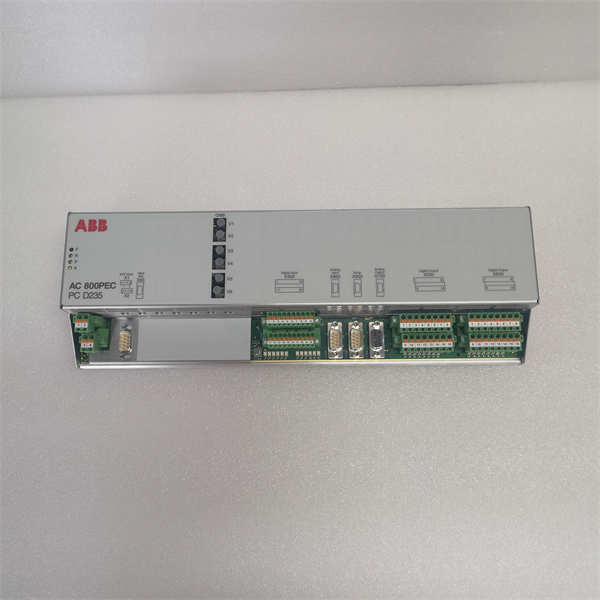

ABB PCD235B1101 3BHE032025R1101

Technical Specifications

Main Features and Advantages

The ABB PCD235B1101 3BHE032025R1101 excels through its multi-layered protection philosophy. Adaptive Differential Protection dynamically compensates for CT saturation during external faults, preventing spurious tripping while maintaining <15>

Cybersecurity is embedded throughout the device lifecycle. Secure engineering via PCM600 software enforces role-based access control, while hardware-level security modules support encrypted firmware updates and audit trails compliant with IEC 62351. The ABB PCD235B1101 3BHE032025R1101 further reduces complexity through its Logic Manager tool, allowing custom protection schemes without coding. For maintenance teams, the 5.7″ color LCD provides intuitive event replay and disturbance recording (up to 256 events with COMTRADE files), accelerating root-cause analysis. Compared to legacy solutions, this IED cuts wiring by 70% using process bus (IEC 61850-9-2LE) and slashes commissioning time via pre-configured application templates.

Application Field

The ABB PCD235B1101 3BHE032025R1101 is indispensable in environments where generator failure carries catastrophic financial or safety consequences. In thermal power plants, it protects 300+ MVA turbo-generators against winding faults, loss-of-synchronism, and overfluxing during startup/shutdown. For hydroelectric facilities, its under-frequency (81U) and overvoltage (59) functions prevent runaway turbine scenarios, while voltage-controlled overexcitation (24) safeguards during grid voltage dips.

Industrial cogeneration plants leverage the ABB PCD235B1101 3BHE032025R1101 for anti-motoring protection (32), isolating generators during steam supply failures to avoid mechanical damage. In offshore wind farms, its wide-temperature tolerance (-40°C) and corrosion-resistant housing ensure reliability in salt-spray environments, synchronizing doubly-fed induction generators (DFIGs) during grid reconnection. The relay’s arc-flash detection support (optional) makes it critical for personnel safety in compact generation modules. Increasingly, the ABB PCD235B1101 3BHE032025R1101 is deployed in black-start installations, where its load encroachment algorithms prevent false trips during islanded recovery operations.

Related Products

REG670 3BHE047041R1101 – Enhanced variant with arc protection card slot

REG615 3BHE020745R0101 – Feeder protection relay for generator step-up transformers

REC670 3BHE041294R0101 – Generator control unit for voltage regulation & synchronization

RTD670 3BHE029110R0101 – Redundant termination unit for busbar protection

SRE650-2 – Standalone synchrocheck relay for backup synchronization

CMC256 – Test kit for REG670 functional validation

SDM670A – Substation data manager for centralized logging

FCIx400 – Fiber optic communication interface for IEC 61850-9-2LE

DCP10 – Dual DC/DC converter for redundant power supply

PCD232A101 – Hardware key for firmware license activation

ABB PCD235B1101 3BHE032025R1101

Installation and Maintenance

Pre-installation preparation: Verify environmental conditions (humidity <95>ABB PCD235B1101 3BHE032025R1101 via the dedicated M6 terminal. Use shielded, twisted-pair cables for analog inputs with separation ≥100mm from power circuits. Prior to energization, confirm firmware version via PCM600 software and back up configuration files.

Maintenance recommendations: Perform annual dielectric tests (2kV AC for 1min) on isolated circuits. Monitor relay self-supervision alarms (LED indicators) and analyze disturbance records quarterly. Update firmware during planned outages using ABB’s Secure Maintenance Tool to prevent cyber vulnerabilities. Calibrate analog inputs every 4 years via CMC256 test set; verify differential protection stability after major grid disturbances. For the ABB PCD235B1101 3BHE032025R1101, always maintain battery backup (if equipped) per ABB Technical Note 1MRS756404.
