Description

The FOXBORO FCP270 P0917YZ is a high-performance process controller within the EcoStruct™ architecture, engineered for mission-critical automation in demanding industrial environments. As part of Foxboro’s Distributed Control System (DCS) solutions, this FCP270 variant delivers deterministic control with microsecond-level loop execution for complex refining, chemical, and power generation processes. Its dual-core ARM Cortex-A9 processor runs the Control Core Services (CCS) platform, supporting 128+ control loops per module with native redundancy. The P0917YZ model specifically features expanded I/O capacity and SIL 3 compliance (IEC 61511), enabling safety instrumented functions alongside regulatory control. With integrated cybersecurity (IEC 62443 Level 2) and dynamic process optimization algorithms, this controller ensures operational integrity in hazardous areas while reducing lifecycle costs through modular hot-swappable components.

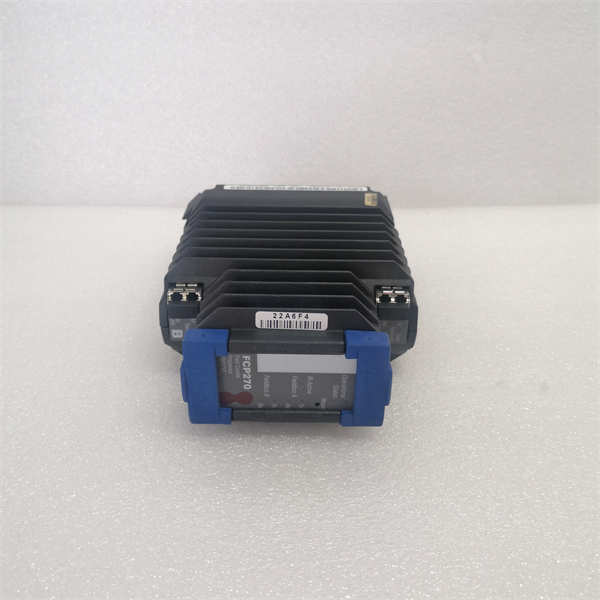

FOXBORO FCP270 P0917YZ

Technical Specifications

Main Features and Advantages

Deterministic Control Architecture: The FOXBORO FCP270 P0917YZ executes PID loops with 10 ms resolution, utilizing predictive algorithms for cascade control in distillation columns or reactor trains. Its dual-CPU design with “vote-before-execute” logic prevents erroneous outputs during faults.

Unified Safety & Control: SIL 3 certification allows safety logic (ESD) and process control to coexist on one platform. The P0917YZ implements hardware-fault tolerance with<100>

Cyber Resilience: Embedded Trusted Platform Module (TPM) 2.0 enforces secure boot, while application whitelisting blocks unauthorized firmware. Role-based access integrates with Active Directory for audit-compliant operations.

Scalable I/O Integration: Direct support for 32+ FBM I/O modules (e.g., FBM242 analog input) without gateways. Live firmware updates maintain process continuity during expansion.

Application Areas

The FOXBORO FCP270 P0917YZ excels in continuous processes requiring fault tolerance. In LNG liquefaction plants, it controls cryogenic heat exchangers with SIL 3 interlocks for methane detection. Refineries deploy it for FCCU reactor-regenerator control, where millisecond response prevents catalyst carryover. Power utilities use it for boiler-turbine coordination, synchronizing fuel/air ratios during load swings. For pharmaceutical batch processes, the P0917YZ enforces FDA 21 CFR Part 11 electronic signatures via integrated audit trails. In pulp mills, its acid circulation loop control prevents digester overpressurization, with ATEX certification allowing installation in Zone 1 areas.

Related Products

FOXBORO FBM242: 8-channel analog input module for FCP270 integration

FOXBORO CFP20: Field processor for remote I/O clusters

FOXBORO FCP280: Next-gen controller with 2x processing power

FOXBORO SCD5200: Safety logic solver for SIL 3 applications

FOXBORO FBM247: HART-enabled analog output module

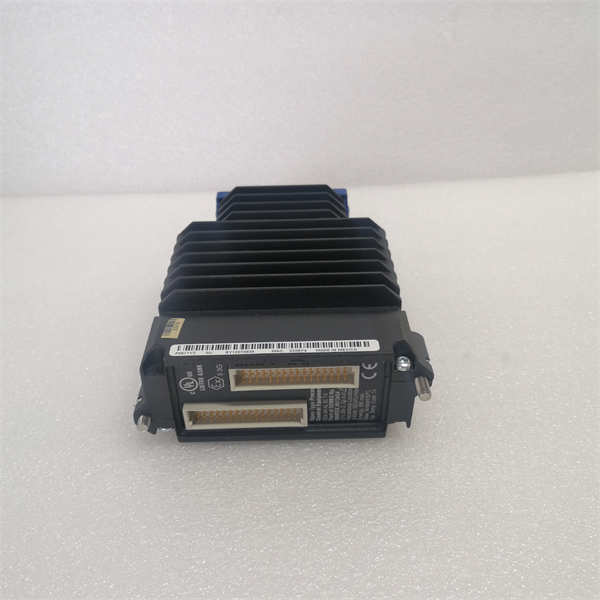

FOXBORO FCP270 P0917YZ

Installation and Maintenance

Pre-installation preparation: Verify DIN rail (EN 60715) clearance ≥100 mm for heat dissipation. Pre-configure controller via Foxboro Control Software (FCS) v14.2 using EDDL templates. Implement star-topology grounding (<1>

Maintenance recommendations: Monitor CPU load via Foxboro I/A Series Diagnostics; maintain<70>FCP270 P0917YZ for critical processes.
