Description

The GE IS220UCSAH1A is a high-density HART communication module for GE’s Mark VIe turbine and process control systems. Designed as part of the Speedtronic™ series, this module bridges intelligent field devices with controllers, enabling bidirectional HART 7 protocol communication across 32 channels simultaneously. The IS220UCSAH1A integrates directly into Mark VIe I/O packs, converting analog signals (4–20 mA) into digital process variables while extracting diagnostic data from valves, transmitters, and actuators without additional wiring. Its dual-port architecture supports simultaneous controller network (ICM) and I/O network (PDH) connectivity, ensuring real-time data flow for asset optimization. Engineered for critical environments like power generation and oil & gas, the module features -40°C to +70°C operation, SIL 2 functional safety compliance (IEC 61508), and dynamic reconfiguration capabilities. With native integration into GE’s Proficy™ Asset Management software, the GE IS220UCSAH1A transforms raw HART data into predictive maintenance insights, reducing unplanned downtime by up to 30%.

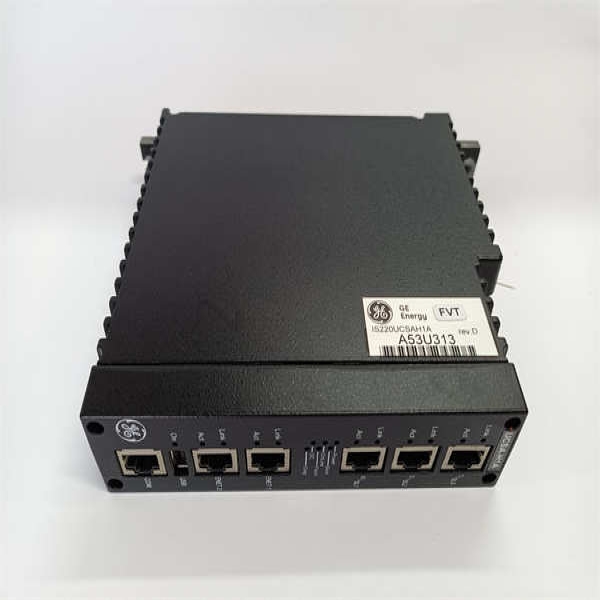

GE IS220UCSAH1A

Technical Specifications

Main Features and Advantages

High-Density HART Multiplexing: The GE IS220UCSAH1A consolidates 32 HART streams into a single module, eliminating external multiplexers and reducing cabinet footprint by 60%. Parallel data extraction enables simultaneous PV (process variable), SV (secondary variable), and device diagnostics.

Cybersecurity Hardened: Implements GE’s CyberSentry™ protocols with encrypted HART command tunneling, role-based access control, and firmware signature verification compliant with NERC CIP and IEC 62443-3-3.

Seamless System Integration: Auto-discovers field devices via ToolboxST™ software and embeds HART data directly into Mark VIe control logic. Dual Ethernet ports allow daisy-chaining to adjacent I/O modules without switches.

Predictive Maintenance Ready: Monitors device health parameters (e.g., valve stiction, sensor drift) and triggers Proficy™ alerts for calibration advisories. “Hot-swap” capability enables module replacement during turbine operation.

Application Areas

The GE IS220UCSAH1A excels in energy and process industries requiring mass device diagnostics. In combined-cycle power plants, it monitors HART-enabled gas turbine fuel valves for stiction during load ramps. Refineries deploy it across crude distillation units to track corrosion via smart pressure transmitters’ PV/SV trends. For compressor stations, the module detects bearing degradation in motor-driven fans through vibration secondary variables. Water treatment facilities leverage its 32-channel capacity for plant-wide pH/ORP analyzer calibration management. In offshore platforms, ATEX compliance allows deployment in Zone 2 areas for choke valve positioner diagnostics.

Related Products

GE IS215VCMIH2C: Mark VIe controller for turbine sequencing

GE IS200ERPGH1A: Excitation control module

GE IC693ALG390: Analog input module (legacy support)

GE DS200DCFBG1B: Communication gateway

GE IS220PDIAH1A: Digital input module for redundant systems

GE IS220PVIBH1A: Vibration monitoring interface

Installation and Maintenance

Pre-installation preparation: Verify Mark VIe rack compatibility (supports VME64x backplanes). Update firmware via ToolboxST™ v8.0+. Ensure HART devices are ≤500 m from module using 22 AWG shielded twisted pairs.

Maintenance recommendations: Perform annual HART command validation using Proficy™ calibration templates. Monitor “communication error” counters monthly; replace if >5% CRC faults occur. Clean backplane connectors every 24 months with IPA wipes.
