The HIMA F3237 984323702 is a high-integrity safety controller module from HIMA’s F35 series, engineered for mission-critical safety instrumented systems (SIS) in hazardous processes. Designed to achieve SIL 3 certification per IEC 61508/61511, this robust processor executes deterministic safety logic with a dual-channel, diverse architecture that eliminates common-cause failures. The F3237 984323702 integrates two independent CPUs (PowerPC and ARM Cortex-R) running in parallel, performing continuous cross-comparison to detect discrepancies within 50 ms. Its modular design supports hot-swap maintenance and features 4 MB FRAM memory for fail-safe data retention during power loss. With built-in HART protocol support and redundant Ethernet interfaces (Ethernet/IP PROFIsafe), the HIMA F3237 seamlessly interfaces with DCS/PLC systems while maintaining <99>

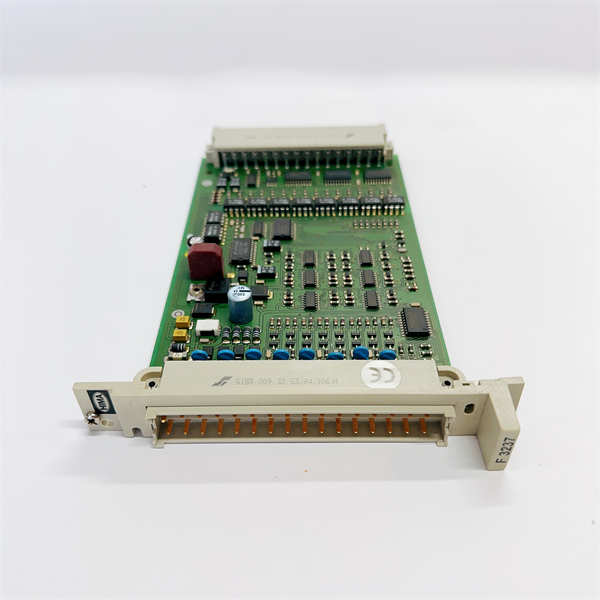

HIMA F3237 984323702
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | F3237 984323702 |
| Manufacturer | HIMA |
| Product Type | Safety Controller Module |
| Safety Certification | SIL 3 (IEC 61508/61511), AK6 (TÜV) |
| Processor Architecture | Dual diverse: PowerPC + ARM Cortex-R4 |
| Logic Execution Time | ≤10 ms (typical) |
| Memory | 4 MB FRAM (non-volatile) |
| Communication Ports | 2× Ethernet (100 Mbps), PROFIsafe, HART |
| I/O Capacity | Up to 1,024 points (via F35 I/O modules) |
| Redundancy | 1:1 or 2oo4 voting configurable |
| Watchdog Response | <50> |
| Operating Temperature | -40°C to +70°C |
| Power Supply | 24 V DC ±10% (dual redundant) |
| Power Consumption | 8 W (max) |
| MTBF | >250,000 hours |
| Certifications | ATEX/IECEx Zone 2, cQPSus, DNV GL |
| Dimensions | 185 mm × 125 mm × 45 mm |
Main Features and Advantages
Diverse Redundant Processing: Dual heterogeneous processors execute identical logic on separate hardware/software paths, providing inherent fault detection without third-party diagnostics. Mismatched results trigger immediate safe state transitions.
Cyber-Secure by Design: Hardware-enforced security includes immutable bootloader, encrypted firmware updates (AES-256), and role-based access compliant with IEC 62443-3-3. Physical keys prevent unauthorized configuration changes.
Predictive Diagnostics: Continuous monitoring of CPU load, memory integrity, and I/O health. Event logs with 0.1 ms timestamp resolution enable forensic analysis of trip sequences.
Legacy Migration Ready: Emulation mode supports migration from older HIMA systems (e.g., H41q). Automatic conversion tools in HIMatrix software reduce revalidation effort by 70%.
Application Areas
The HIMA F3237 984323702 dominates safety-critical applications:
Refineries: ESD for fluid catalytic cracking units with 2oo3 voting logic
Chemical Plants: Toxic gas leak detection and burner management systems (BMS)
Offshore Platforms: Subsea wellhead emergency valve closure
Power Generation: Turbine overspeed protection (>110% trip)
Pharmaceutical: Pressure relief interlocking in API reactors
Rail Systems: SIL 4-capable signaling control (with redundant pairs)

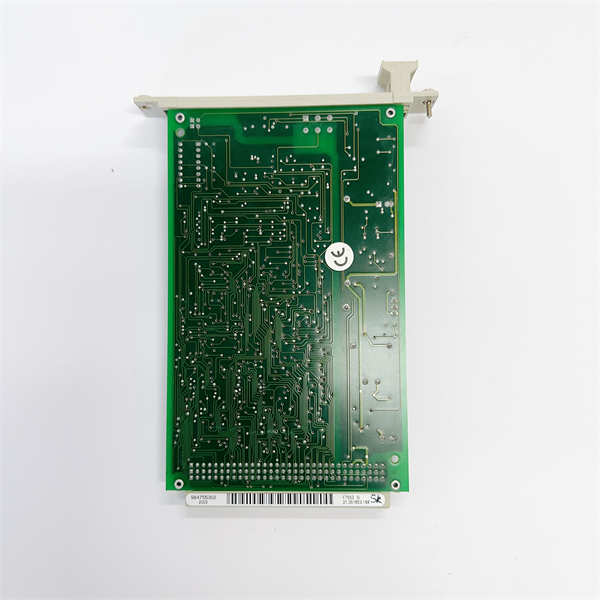

HIMA F3237 984323702
Related Products
HIMA F8650E: Ethernet communication module for F3237
HIMA F35 DI 16/8: 16-channel digital input module
HIMA F87 AI 8H: HART-enabled analog input
HIMA H41q: Legacy controller for migration projects
HIMA F-CPU 6151: Next-gen SIL 3 controller
HIMA Z7136: Redundant power supply unit
HIMA F35 AO 4: 4-channel analog output
Installation and Maintenance
Pre-installation preparation: Verify rack grounding <0>200 mm from power lines.
Maintenance recommendations: Quarterly diagnostic report generation via HiCloud. Replace cooling fans at 60,000 hours. Perform full functional safety test every 3 years per IEC 61511. Never hot-swap during SIL 3 operation.
