The ABB UBC717AE01 HIEE300927R0101 is a high-reliability PROFIBUS DP Master Communication Module for ABB’s Advant Controller 800 series and 800xA Distributed Control Systems. Designed as a critical fieldbus interface, this module enables deterministic data exchange between controllers and PROFIBUS DP-compliant field devices (sensors, drives, I/O systems) in time-sensitive industrial processes. The UBC717AE01 HIEE300927R0101 supports up to 124 nodes per segment with configurable baud rates (9.6 Kbps to 12 Mbps), ensuring seamless integration in complex automation architectures like refinery units or power plant control systems.
Featuring galvanic isolation (1500V AC) and redundant power inputs, this module maintains communication integrity in electrically noisy environments. Its hot-swappable design allows replacement without system shutdown, minimizing production losses during maintenance. The UBC717AE01 HIEE300927R0101 implements ABB’s proprietary “Cable Redundancy Management” (CRM) technology for automatic failover in ring topologies – a critical feature for safety-critical applications. Compatible with AC800M controllers, this module extends legacy Advant OCS systems while bridging to modern 800xA architectures, making it indispensable for brownfield upgrades.

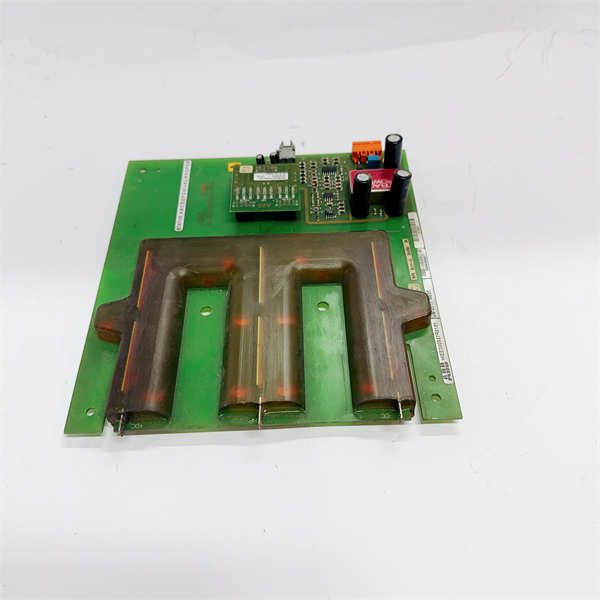

ABB UBC717AE01 HIEE300927R0101
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | UBC717AE01 HIEE300927R0101 |
| Manufacturer | ABB |
| Product Type | PROFIBUS DP Master Module |
| PROFIBUS Standard | EN 50170 Vol. 2 (DP-V1) |
| Max Nodes Supported | 124 per segment |
| Baud Rate | 9.6 Kbps – 12 Mbps (auto-negotiating) |
| Isolation Voltage | 1500V AC (field-to-controller) |
| Redundancy Support | Cable Redundancy Management (CRM) |
| Hot-Swap Capable | Yes |
| Power Supply | 24V DC ±10% (dual redundant inputs) |
| Power Consumption | 1.8W (typical) |
| Operating Temperature | -25°C to +70°C |
| Communication Ports | 2x PROFIBUS (9-pin D-sub) |
| Protocol Extensions | DPV1 diagnostics, SYNC/FREEZE |
| Certifications | UL, CE, ATEX Zone 2 |
| MTBF | >250,000 hours |
| Dimensions | 125 mm x 75 mm x 40 mm (H x W x D) |
Main Features and Advantages
Deterministic Fieldbus Performance: The UBC717AE01 HIEE300927R0101 guarantees cycle times down to 1 ms for critical I/O updates through hardware-assisted token management. Integrated DPV1 diagnostics provide real-time slave health monitoring, reducing troubleshooting time by up to 70% compared to basic DP modules.
Fault-Tolerant Connectivity: Proprietary Cable Redundancy Management (CRM) creates self-healing ring topologies – if a cable break occurs, the UBC717AE01 HIEE300927R0101 automatically reroutes data within 100 ms without controller intervention. Dual power inputs with reverse polarity protection ensure continuous operation during supply fluctuations.
Seamless System Integration: Native compatibility with ABB’s Control Builder M enables plug-and-play configuration. Pre-defined PROFIBUS GSD libraries support 5000+ devices from vendors like Siemens, Festo, and Endress+Hauser. The module acts as a protocol translator for legacy Advant OCS systems migrating to 800xA.
Industrial Resilience: Conformal-coated electronics withstand 95% humidity and corrosive atmospheres. Electromagnetic compatibility (EMC) meets IEC 61000-6-2/6-4 for operation near VFDs. Hot-swap capability allows module replacement without rebooting controllers.
Application Field
The UBC717AE01 HIEE300927R0101 excels in process industries requiring robust field-level communication. In oil refineries, it connects distributed I/O for tank farm level monitoring and pump control. Power plants use it to interface turbine protection systems with PROFIBUS-enabled vibration sensors and smart valves. Chemical facilities deploy it for reactor temperature cascade controls and batching scale integration.
Manufacturing applications include automotive paint shop conveyor synchronization and robotic cell safety interlocks. For water/wastewater treatment, the module networks pump VFDs and flow meters across large campuses. In pharmaceutical plants, the UBC717AE01 HIEE300927R0101’s deterministic performance ensures FDA-compliant batch recipe execution. Its ATEX Zone 2 rating suits hazardous areas like LNG compressor stations.
Related Products
UFC921A101: PROFIBUS DP slave module for remote I/O expansion.
CI871 3BSE056767R1: PROFIBUS interface for AC800M controllers.
TA523 3BSE013226R1: Termination assembly for module mounting.
SD822 3BSE018294R1: Digital input module for field signal integration.
KUC711AE101: Control processor leveraging UBC717AE01 HIEE300927R0101 data.
PROFIBUS Repeaters: Signal amplifiers for network extension beyond 100m.
CP635 HMI: Local operator panel for network diagnostics.

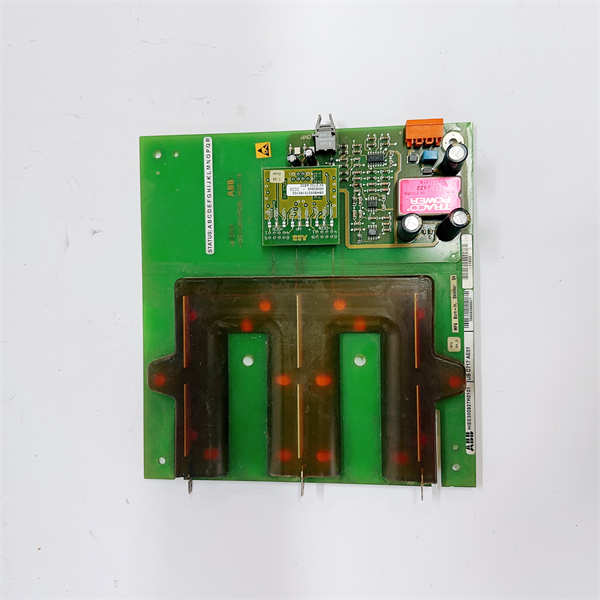

ABB UBC717AE01 HIEE300927R0101
Installation and Maintenance
Pre-installation preparation: Verify controller compatibility (AC800M PM864/PM866). Configure PROFIBUS address via DIP switches before mounting. Ensure grounding integrity (≤1Ω) to prevent communication noise. Use shielded PROFIBUS cables with proper bus termination.
Maintenance recommendations: Monitor slave diagnostics through Control Builder M software. Clean connectors annually with electronic contact cleaner. Replace backup battery (BB810) every 3 years to preserve configuration. Update firmware during planned shutdowns using ABB-signed packages. For hot-swap, deactivate CRM redundancy before extracting the UBC717AE01 HIEE300927R0101.
