Description

The ICS Triplex T8461 represents the pinnacle of safety-critical control technology within the Tricon platform, now under Rockwell Automation’s stewardship. This triple modular redundant (TMR) digital input module is engineered for mission-critical applications where failure is not an option, providing unparalleled fault tolerance and diagnostic coverage. As a core component of the Tricon v9/v10 safety instrumented systems (SIS), the ICS Triplex T8461 processes discrete 24VDC signals from emergency shutdown valves, fire/gas detectors, or turbine overspeed sensors, executing 2-out-of-3 voting logic to prevent spurious trips while ensuring failsafe operation. Its architecture features three isolated input channels per point, with independent microprocessors cross-validating data in real-time to detect discrepancies as low as 4µs.

Designed for extreme environments, the ICS Triplex T8461 integrates seamlessly into existing Tricon racks (e.g., TMR A3000 chassis) while supporting hot-swap maintenance to maximize uptime. Positioned for SIL 3 applications per IEC 61508, this module reduces operational risk in refineries, offshore platforms, and power generation facilities through its patented “Fault Tolerance to a Single Component Failure” design. The ICS Triplex T8461 delivers value by combining rigorous third-party certification (TÜV, exida) with Rockwell’s global lifecycle support, making it the benchmark for process safety integrity.

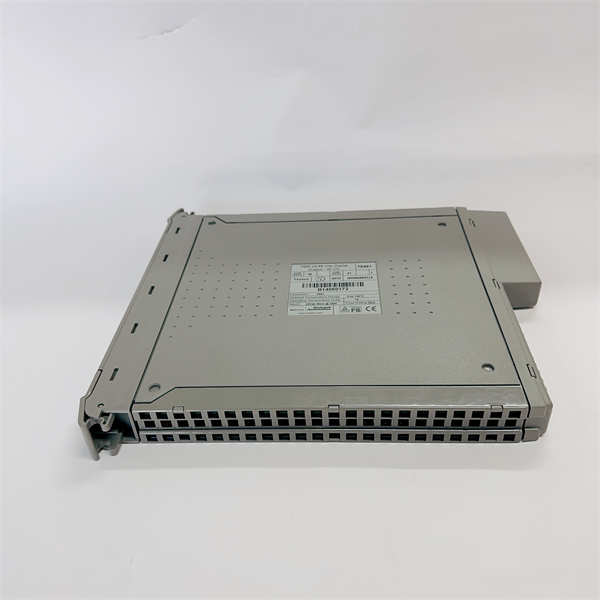

ICS TRIPLEX T8461

Technical Specifications

Main Features and Advantages

Triple Modular Redundancy: The ICS Triplex T8461 employs three independent input processing chains with continuous cross-comparison. This architecture detects and isolates faulty signals while maintaining system operation without interruption – critical for emergency shutdown systems.

Advanced Diagnostics: Every channel features real-time health monitoring, detecting open wires, short circuits, and field device degradation. The module’s “Pulse Test” function injects micro-currents to verify sensor circuit integrity, significantly reducing undetected failure rates.

Hot-Swappability: Field-replaceable without system shutdown, the ICS Triplex T8461 uses keyed connectors and live insertion logic. Front-panel LEDs provide instant visual status (OK/Fault/Bypass) for all 16 points, accelerating troubleshooting.

Environmental Robustness: With an extended -40°C to +70°C operating range and conformal-coated PCBs, the module withstands vibration, humidity, and corrosive atmospheres common in offshore/oil & gas installations. Its galvanic isolation (channel-to-channel and field-to-backplane) prevents ground loop interference.

Legacy System Integration: As a Tricon v9/v10 series module, the ICS Triplex T8461 maintains backward compatibility with existing installations while supporting migration paths to modern ControlEdge safety systems.

Application Field

The ICS Triplex T8461 dominates safety-critical sectors requiring zero tolerance for control failures. In oil & gas, it orchestrates emergency shutdown (ESD) systems for offshore platforms, processing high-integrity signals from pressure safety valves (PSVs) and gas detection arrays. Petrochemical plants deploy the ICS Triplex T8461 in burner management systems (BMS), where it monitors flame detectors and fuel valves to prevent furnace explosions.

Power generation facilities rely on this module for turbine protection, tripping steam inlets upon overspeed detection (>110% RPM). Its SIL 3 rating makes the ICS Triplex T8461 ideal for nuclear safety applications, including reactor coolant pump monitoring. In liquefied natural gas (LNG) terminals, the module safeguards loading arms by initiating emergency release upon detecting over-pressurization or leakage. Even in pharmaceutical batch processes, it ensures sterile containment integrity by triggering isolation when environmental monitors detect contamination.

Related Products

T8462: Analog input counterpart to the T8461, supporting 4-20mA/HART signals for SIL 3 process monitoring

T8110B: Main processor module coordinating TMR logic across T8461 and other I/O modules

T9451/T9452: Redundant communication modules linking Tricon to DCS/SCADA

3503E: Enhanced chassis housing T8461 modules with improved heat dissipation

T8461C: Later variant with extended temperature range (-60°C to +85°C)

4329: Marshalling cabinet for field wiring termination to T8461

T8431: Digital output module for executing safety actions processed by T8461

ControlEdge HC900: Modern safety controller offering migration path from legacy Tricon

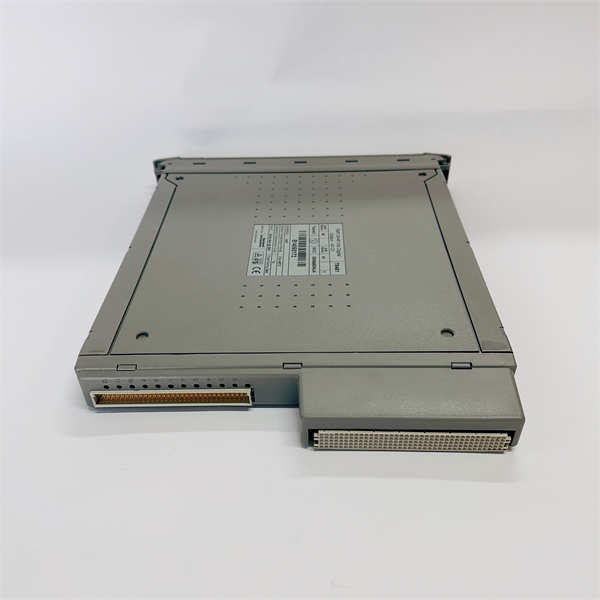

ICS TRIPLEX T8461

Installation and Maintenance

Pre-installation preparation: Verify chassis slot compatibility (supports Series 3007/3503E racks) and confirm firmware revision alignment with other TMR modules. Ensure proper grounding per NEC Class I Div 2 guidelines using 14 AWG copper conductors. Prepare field wiring with 0.5–2.5mm² stranded copper cables, avoiding parallel runs with AC power lines to prevent EMI.

Maintenance recommendations: Perform quarterly “Simulated Fault Insertion Tests” (FIT) to validate diagnostic coverage. Replace modules showing persistent fault LEDs after verifying backplane connector integrity. Utilize TriStation 1131 software’s “Force & Monitor” function for troubleshooting without bypassing safety logic. Maintain 75mm clearance above/below the ICS Triplex T8461 for thermal management in high-density racks.
