Description

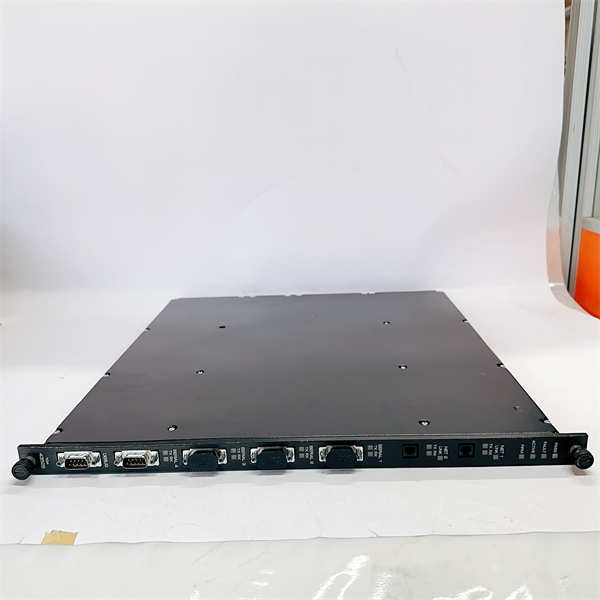

The TRICONEX 4352B is a high-reliability analog input module within the Tricon v11 safety instrumented system (SIS), engineered for precision measurement in critical process safety applications. As part of Schneider Electric’s Triconex platform, this triple modular redundant (TMR) module converts 4-20mA field signals into digital data with SIL 3 certification per IEC 61508/61511 standards. Designed for hazardous environments, the TRICONEX 4352B features three independent input channels per point that continuously cross-validate measurements, providing fault tolerance against sensor failures, wiring faults, or internal component degradation. Its architecture enables <0>

The TRICONEX 4352B serves as the sensory backbone for safety-critical processes in oil refineries, chemical plants, and power generation facilities. It supports HART 7 protocol pass-through for advanced device diagnostics without compromising safety functions. When integrated with Tricon chassis (e.g., 3008/3503E), the module automatically compensates for thermocouple cold junction effects and provides open-wire detection for all analog inputs. The TRICONEX 4352B delivers operational confidence through its patented “Fault Tolerance to a Single Component Failure” design and hot-swappable architecture, enabling module replacement without process shutdown.

Technical Specifications

Main Features and Advantages

Triple-Channel Validation: Each input point uses three isolated measurement circuits that vote on validity before data transmission. The TRICONEX 4352B automatically compensates for drift in individual channels while triggering alarms on measurement divergence >0.25%.

Advanced Diagnostics: Continuous monitoring detects open circuits, short-to-power, and signal degradation. The module’s patented “Pulse Test” injects micro-currents to verify loop integrity without affecting the 4-20mA signal.

HART Transparency: Bi-directional HART communication coexists with safety signals, enabling predictive maintenance through device diagnostics (e.g., pressure transmitter plugging indicators) without additional wiring.

Environmental Hardening: Conformal-coated PCBs withstand corrosive atmospheres in sulfur recovery units. Vibration-resistant connectors (tested to 5g @ 10-500Hz) ensure reliability in compressor stations.

Legacy Integration: Compatible with Tricon v9-v11 systems, the TRICONEX 4352B enables phased modernization of existing installations while supporting migration to ControlEdge safety platforms.

Application Field

The TRICONEX 4352B is deployed where measurement accuracy directly impacts safety integrity. In offshore platforms, it monitors wellhead pressure safety valves (PSVs) and gas detection transmitters for emergency shutdown (ESD) systems. Refineries utilize this module for furnace temperature monitoring in crude distillation units, where thermocouple failures could lead to tube rupture.

Power generation facilities rely on the TRICONEX 4352B for steam turbine overspeed protection by processing bearing vibration signals. Chemical plants implement it for reactor batch temperature control during exothermic reactions. In liquefied natural gas (LNG) facilities, the module safeguards cryogenic storage tanks by monitoring temperature stratification. Pharmaceutical manufacturers use it for sterilizer SIP (Steam-in-Place) temperature verification to meet FDA 21 CFR Part 11 compliance.

Related Products

3503E: Enhanced chassis for housing 4352B modules

3706A: HART multiplexer for high-density installations

4351B: Digital input counterpart to 4352B

T8461: Digital input module for same safety system

MP3004: Redundant power supply for chassis

Triconex TMCi: Communication interface for DCS integration

4353B: Analog output module for safety actuation

Trident: Next-gen safety controller platform

Installation and Maintenance

Pre-installation preparation: Verify chassis slot compatibility (supports 3008/3503E racks). Calibrate field instruments before connection using certified sources. Use twisted-pair shielded cables (18-22 AWG) with maximum 100Ω loop resistance. Maintain 50mm clearance from high-voltage cables.

Maintenance recommendations: Perform quarterly “Simulated Fault Insertion Tests” via TriStation 1131 software to validate diagnostic coverage. Replace modules showing persistent “VOTE FAULT” LEDs after verifying terminal block integrity. Calibrate analog inputs biennially using 0.05% accuracy reference standards. For the TRICONEX 4352B, always use factory-supplied calibration constants during configuration.
