Description

The WINGREEN 03ZSTL6-00-201-RS represents the pinnacle of intelligent valve positioning technology, engineered for critical safety and control applications demanding SIL 3 (Safety Integrity Level 3) compliance per IEC 61511. This microprocessor-based positioner converts 4–20mA control signals into precise pneumatic output for linear/rotary valves while offering simultaneous HART 7 and RS485/Modbus RTU communication. As the flagship model in WINGREEN’s ZSTL6 safety series, the 03ZSTL6-00-201-RS integrates advanced diagnostics, partial stroke testing (PST), and cyber-security features. Its ruggedized stainless-steel housing (IP68) withstands extreme offshore, mining, and chemical environments. The WINGREEN 03ZSTL6-00-201-RS optimizes valve response through AI-driven adaptive tuning, reducing process variability by up to 40% while providing auditable safety data for regulatory compliance.

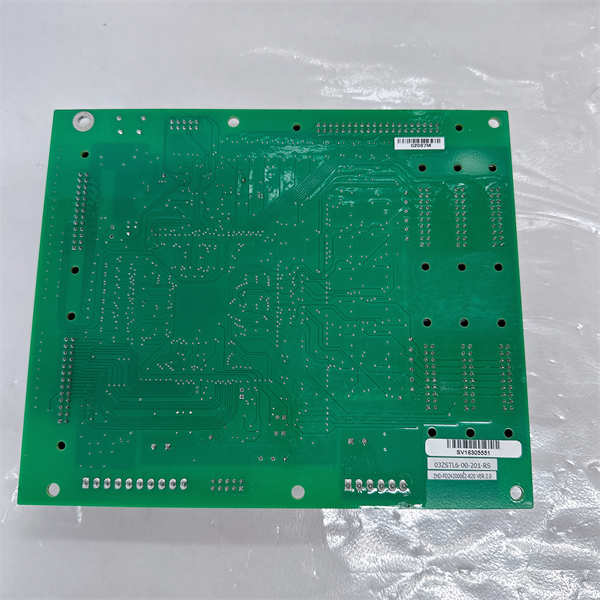

WINGREEN 03ZSTL6-00-201-RS

Technical Specifications

Main Features and Advantages

Safety-Critical Performance: The WINGREEN 03ZSTL6-00-201-RS achieves SIL 3 certification through redundant processors, watchdog circuits, and fail-safe algorithms. Continuous self-monitoring detects >98% of dangerous failures within 1 hour, enabling its use in emergency shutdown (ESD) and fire protection systems.

Dual-Protocol Intelligence: Simultaneous HART 7 and Modbus RTU connectivity allows real-time valve health monitoring via control systems (DCS/PLC) while enabling mobile diagnostics. Predictive maintenance data – including stem friction trends and seat wear analytics – reduces downtime by 30%.

Extreme Environment Robustness: With IP68 sealing and extended temperature range (-40°C to +100°C), the 03ZSTL6-00-201-RS operates reliably in subsea, Arctic, or desert installations. ATEX/IECEx Zone 0 certification permits use in continuous hazardous gas/dust atmospheres.

Operational Efficiency: AI-based “Active Response Tuning” dynamically adjusts gain/response for optimal control under load changes. Ultra-low air consumption (<0>

Application Field

The WINGREEN 03ZSTL6-00-201-RS is deployed where valve failure could cause catastrophic safety/environmental incidents:

Oil & Gas: Controls HIPPS (High-Integrity Pressure Protection) valves, subsea Christmas tree actuators, and refinery flare knockout drums. SIL 3 certification meets IEC 61511 requirements for safety instrumented functions (SIFs).

Chemical/Petrochemical: Manages reactor emergency quench valves, toxic gas isolation systems, and high-pressure polymer discharge, with Zone 0 suitability for hydrogen/ethylene oxide service.

Power Generation: Governs turbine steam admission valves (SIL 3) and nuclear plant coolant isolation, with radiation-resistant components.

Mining: Controls tailings dam emergency discharge valves and acid leaching shutdown systems in pH<1>

LNG Terminals: Operates cryogenic (-162°C) BOG (Boil-Off Gas) compressor recycle valves with frost-proof design.

Related Products

03ZSTL6-00-101-RS: SIL 3 positioner with 0.14–0.7 MPa output for standard actuators.

03ZSTJ3-00-105: SIL 2 positioner (cost-optimized for non-critical apps).

WINGREEN PST-2000: Partial stroke tester for automated 03ZSTL6-00-201-RS validation.

05ZSC-300HP: High-purity air filter (0.01µm) for SIL 3 supply air.

WINGREEN VDM-500: Valve diagnostics software for 03ZSTL6 series predictive analytics.

03ZSTL6-00-202-FF: Foundation Fieldbus version for greenfield projects.

WINGREEN FSM-100: Fail-safe module for air-fail close/open logic.

02ZSP-300: SIL 3 solenoid manifold for on/off redundancy.

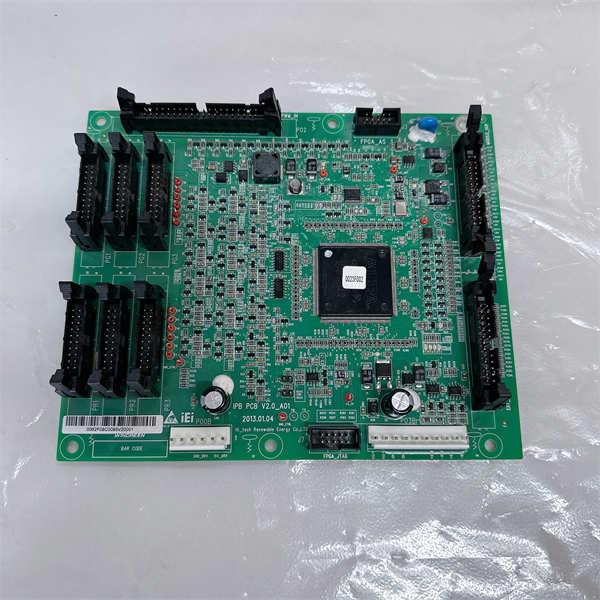

WINGREEN 03ZSTL6-00-201-RS

Installation and Maintenance

Pre-installation preparation: Verify valve actuator compatibility (ISO 5211 F10-F16 mounting). Ensure supply air meets ISO 8573-1 Class 2 (oil/particle-free) and install upstream filters. For SIL 3 loops, calibrate using WINGREEN’s certified PST-2000 tool. Isolate all power/pneumatic sources before wiring. Use shielded twisted-pair cables for RS485/Modbus with 120Ω termination.

Maintenance recommendations: Conduct quarterly partial stroke tests via integrated PST function to verify response time/positioning accuracy. Monitor “Valve Performance Index” (VPI) in diagnostics for early wear detection. Annually inspect diaphragm/seals in corrosive service. Update firmware only with WINGREEN-authenticated files to maintain SIL 3 certification. For Modbus networks, validate CRC checksum integrity monthly.
