Description

The GE IS220PAICH2A (alternate p/n 336A4940CSP11) is a high-density 16-channel Analog Input Module from GE’s Mark VIe Speedtronic™ turbine control system, engineered for precision signal acquisition in critical power generation and industrial processes. This rugged module conditions field signals from transmitters, RTDs, and thermocouples with 0.05% accuracy, supporting 4–20mA, ±10V, TC (J/K/E/T), and RTD (Pt100/1000) inputs. Designed for extreme environments, the IS220PAICH2A operates at -40°C to +70°C with Class I Div 2/ATEX Zone 2 certification. Its dual-redundant PDH (Process Data Highway) interfaces and hot-swappable architecture ensure 99.999% availability for turbine control loops, compressor monitoring, and safety systems. Integrated HART 7.0 communication enables smart instrument configuration without disrupting control processes.

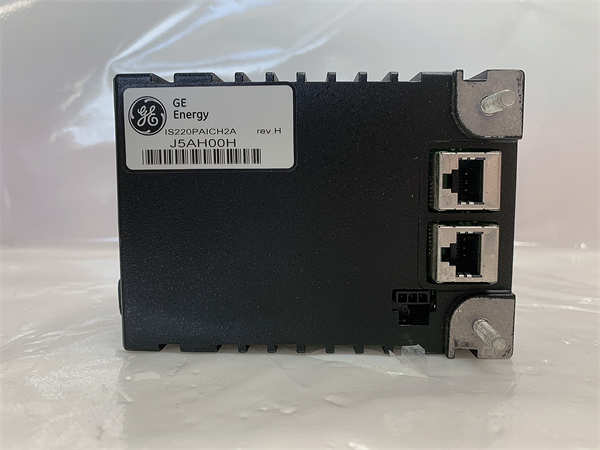

GE IS220PAICH2A 336A4940CSP11

Technical Specifications

Main Features and Advantages

Precision & Flexibility:

Universal Input Channels: Each channel auto-ranges between mA/volt/RTD/TC signals via ToolboxST™ configuration, eliminating jumpers.

Advanced Diagnostics: Real-time monitoring detects open wires, signal saturation, and drift beyond ±0.1%, triggering alarms in CIMPLICITY HMI.

HART Multi-drop: Communicates with up to 16 HART devices per module while maintaining 4–20mA control.

Mission-Critical Reliability:

Dual PDH Ports: Redundant 100Mbps optical networks ensure zero data loss during fiber cuts.

Hot-Swap Capability: Replace IS220PAICH2A modules without turbine shutdown using EnerVista™ software guidance.

Conformal Coating: Protects PCB against humidity, dust, and corrosive gases in coastal power plants.

Cybersecurity & Integration:

Secure Firmware Validation: SHA-256 signed firmware prevents tampering.

Legacy Compatibility: Interfaces with Mark V systems via IS200DSPX boards.

SIL 2 Ready: When used with triple-redundant controllers (e.g., IS215VCMCT), meets IEC 61511 requirements.

Application Field

The IS220PAICH2A is indispensable in high-reliability energy and industrial sectors:

Gas/Steam Turbines: Monitors bearing temperatures (RTD), fuel valve positions (4–20mA), and exhaust TCs in >300MW units.

Hydroelectric Plants: Tracks generator winding temperatures (Pt100) and cooling water pressures with ±0.05% accuracy.

Compressor Stations: Controls anti-surge loops via HART-enabled pressure transmitters in natural gas pipelines.

Offshore Platforms: Operates in ATEX Zone 2 hazardous areas for crude oil separation vessel level control.

Cogeneration: Manages district heating supply temperatures with RTD inputs.

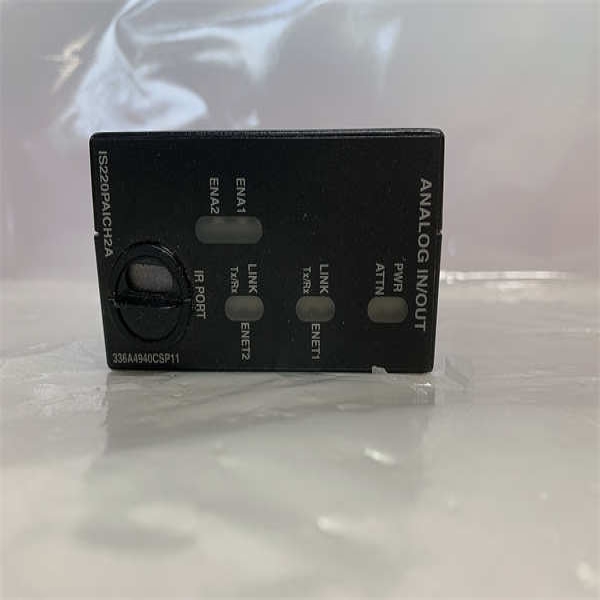

GE IS220PAICH2A 336A4940CSP11

Related Products

IS220PAIH1A: 32-channel analog input variant for high-density applications.

IS215VCMCT: Triple-redundant controller for SIL 2 safety loops.

IS200TDBTH1C: Terminal board for IS220PAICH2A field wiring.

IS220PDIAH1A: 32-channel digital input module for ESD status.

DS200DCFBG1B: I/O communication gateway.

IS220PTURH1B: Turbine overspeed protection module.

IC693ALG392: Analog output module for valve control.

Installation and Maintenance

Pre-installation preparation: Verify I/O pack compatibility (e.g., IC693CMM321). Ground analog shields at single-point earth. Use twisted-pair cables for TC/RTD signals. Configure signal types in ToolboxST™ before power-up.

Maintenance recommendations: Perform bi-annual calibration checks with precision source. Monitor “Signal Quality Index” in EnerVista™ monthly. Replace modules after 10+ hot-swap cycles. Apply firmware updates during planned outages. Clean optical PDH connectors annually with approved cleaners.
