Description

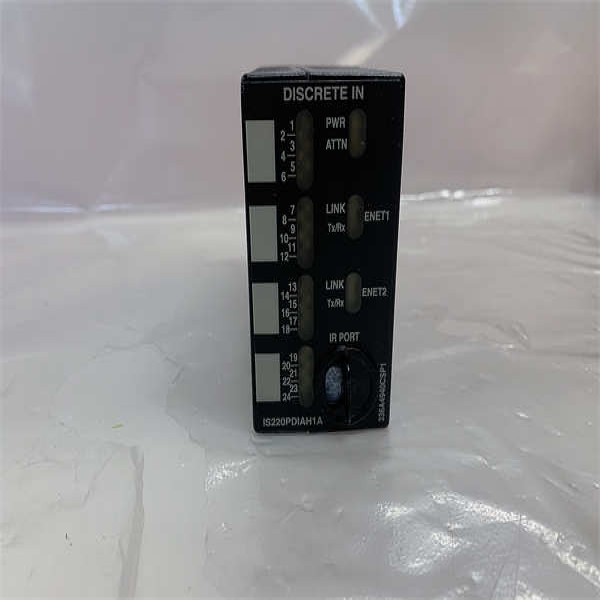

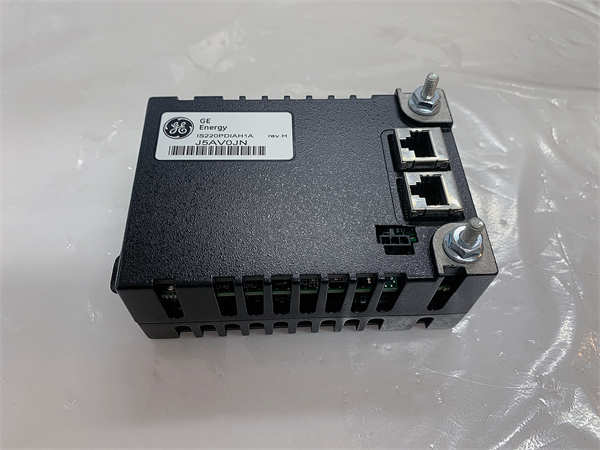

The GE IS220PDIAH1A (alternate part number 336A4940CSP1) is a high-density 32-channel Digital Input Module engineered for GE’s Mark VIe Speedtronic™ turbine control and safety systems. Designed for mission-critical industrial applications, this module interfaces with dry contacts, proximity switches, and voltage-free signals to monitor discrete field device status with sub-millisecond response times. The IS220PDIAH1A features robust channel-to-channel isolation (1,500V AC) and operates reliably across extreme temperatures (-40°C to +70°C) with Class I Div 2/ATEX Zone 2 certification. Its dual-redundant PDH (Process Data Highway) communication ensures deterministic data transfer to control processors, while hot-swappable architecture enables maintenance without turbine shutdown. As a core component in safety instrumented systems (SIS), the GE IS220PDIAH1A provides fail-safe monitoring for ESD valves, flame detectors, and vibration switches in power generation and heavy industries.

GE IS220PDIAH1A 336A4940CSP1

Technical Specifications

Main Features and Advantages

Ultra-Fast Monitoring:

Sub-millisecond Response: Detects contact state changes in<1>

Wide Voltage Compatibility: Supports 24-125V DC field signals without external converters, simplifying integration with legacy systems.

Intelligent Diagnostics: Continuous monitoring detects broken wires, contact degradation, and field power failures, triggering ToolboxST™ alerts.

Mission-Critical Reliability:

Galvanic Isolation: 1,500V AC isolation per channel prevents ground loops and protects control systems from voltage transients.

Hot-Swap Capability: Replace IS220PDIAH1A modules during turbine operation using EnerVista™ guided procedures.

Dual PDH Networks: Redundant optical/copper communication ensures zero data loss during fiber cuts or electrical interference.

Advanced Engineering:

Predictive Maintenance: Logs contact actuation cycles and bounce counts to forecast switch failures before critical events.

Secure Configuration: Cryptographic firmware signing prevents unauthorized modifications to protection logic.

Mark V Compatibility: Interfaces with legacy Speedtronic™ systems via IS200DSPX gateway modules.

Application Field

The GE IS220PDIAH1A delivers uncompromising reliability in safety-critical monitoring:

Power Plants: Monovers flame detection, lube oil pressure switches, and turbine trip contacts in 300MW+ gas/steam units.

Offshore Platforms: Reads ESD valve positions and fire/gas detector status in ATEX Zone 2 hazardous areas.

Compressor Stations: Detects surge control valve limits and emergency shutdown requests along gas pipelines.

Hydroelectric Facilities: Interfaces with wicket gate end switches and bearing temperature alarms.

Industrial Safety Systems: Processes safety interlock signals for rotating equipment guards and conveyor emergency stops.

GE IS220PDIAH1A 336A4940CSP1

Related Products

IS220PDOAH1A: 32-channel digital output module for actuating shutdown solenoids.

IS215VCMCT: Triple-redundant controller for SIL 3 safety logic execution.

IS200DTBH1A: Terminal board for field wiring to IS220PDIAH1A.

IS220PPDAH1A: High-speed pulse input module for turbine speed monitoring.

DS200DCFBG1B: I/O communication gateway for legacy Mark V integration.

IC693CMM321: I/O pack carrier for VME chassis mounting.

IS220PAICH2A: Analog input module for temperature/pressure monitoring.

Installation and Maintenance

Pre-installation preparation: Verify I/O pack compatibility (e.g., IC693CMM321). Ground shield wires at DCS cabinet only. Use 18-22 AWG shielded twisted-pair cables. Configure channel filtering in ToolboxST™ to reject contact bounce. Validate field voltage compatibility before energizing.

Maintenance recommendations: Perform annual contact resistance checks on critical inputs. Monitor “Contact Actuation Count” diagnostics quarterly. Replace modules after 15+ hot-swap cycles. Apply firmware updates during planned outages. Clean optical PDH connectors with fiber-optic cleaner annually.
