Description

The GE IS420UCSCH2A-C-V0.1-A is a high-performance communication hub within GE’s Mark VIe series of distributed control systems (DCS), engineered for critical turbine and process control applications. This ruggedized module serves as the central nervous system for Mark VIe controllers, enabling seamless data exchange between I/O modules, safety systems, and plant networks. Designed for extreme reliability in power generation environments, the GE IS420UCSCH2A-C-V0.1-A supports deterministic communication with sub-millisecond latency, ensuring precise coordination of high-speed control loops. Its dual-redundant Ethernet architecture provides fault-tolerant connectivity for up to 32 I/O packs while integrating with PROFINET, Modbus TCP, and OPC UA protocols. The GE IS420UCSCH2A-C-V0.1-A features industrial-grade components rated for 24/7 operation in vibration-intensive settings, making it indispensable for gas/steam turbine control, compressor anti-surge systems, and grid synchronization applications where zero communication failure is mandatory.

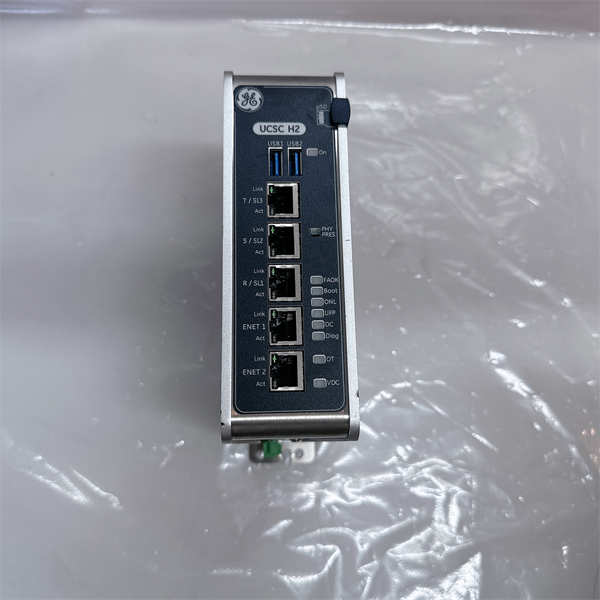

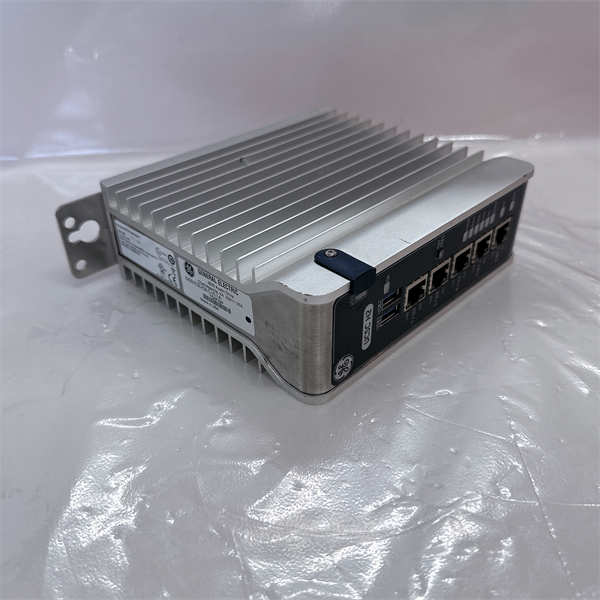

GE IS420UCSCH2A-C-V0.1-A

Technical Specifications

Main Features and Advantages

Deterministic Network Performance: The GE IS420UCSCH2A-C-V0.1-A delivers time-synchronized data transmission with<500>

Multi-Protocol Integration: Uniquely supports simultaneous operation of PROFINET for third-party PLC integration, Modbus TCP for legacy systems, and OPC UA for enterprise data historians. The embedded firewall provides cybersecurity hardening against unauthorized access.

Ruggedized Design: Featuring MIL-spec connectors and conformal-coated PCBs, the module withstands 5g vibration (10-500Hz) and 95% non-condensing humidity. The “-C” suffix indicates enhanced corrosion resistance for coastal installations.

Hot-Swap Capability: Field-replaceable without system shutdown using positive-lock extraction handles. Automatic configuration recovery from paired modules reduces restart time by 90% compared to traditional DCS components.

Advanced Diagnostics: Real-time health monitoring of all connected I/O modules via embedded web server. Predictive failure alerts for temperature, voltage deviations, and signal integrity loss enable proactive maintenance.

Application Field

The GE IS420UCSCH2A-C-V0.1-A dominates mission-critical control applications in energy infrastructure. In combined-cycle power plants, it orchestrates communication between Mark VIe turbine controllers, HRSG safety systems, and balance-of-plant PLCs, enabling coordinated start-up sequencing and load sharing. For offshore platforms, its corrosion-resistant design manages compressor anti-surge systems while integrating with fire/gas detection networks.

Hydroelectric facilities deploy this hub for governor control synchronization across multiple units, using its deterministic networking for precise frequency regulation. In industrial cogeneration, the module bridges turbine control with process DCS (e.g., paper mills/refineries), enabling steam header pressure optimization. The GE IS420UCSCH2A-C-V0.1-A is equally vital for black-start capability in grid stability applications, where millisecond-level communication ensures seamless transfer between island mode and grid synchronization.

Related Products

IS420ESWBH3A : 16-channel analog input module

IS215VCMH2B : Mark VIe controller module

IS420PDOAH1A : PROFIBUS DP-V1 interface

DS200DCFBG1B : Fiber-optic terminal board

IC698CPE040 : RX3i redundant CPU

IS200TBAIH1C : Thermocouple input terminal

EX2100e : Excitation control module

ToolboxST : Configuration software suite

IS420UCSCH2A-C-V0.1-A

Installation and Maintenance

Pre-installation preparation: Verify rack compatibility (Mark VIe IC200 series) and ensure ESD protection during handling. Confirm firmware version compatibility with existing controllers using ToolboxST v9.0+. Route fiber-optic cables away from high-voltage sources (>200mm clearance).

Maintenance recommendations: Perform annual fiber-optic connector cleaning with approved LC-type cleaning kits. Monitor hub temperature via embedded web interface (alarm if >65°C). Cycle redundant GE IS420UCSCH2A-C-V0.1-A modules quarterly during planned outages. Replace after 10 years service or 60,000 power cycles.
