Description

The ICS TRIPLEX T8310 is a critical Safety Network Interface Module (SNIM) designed for Schneider Electric’s Tricon CX series of Safety Instrumented Systems (SIS). This advanced communication gateway enables secure, high-speed data exchange between the triple modular redundant (TMR) safety controllers and external systems such as DCS, SCADA, or asset management platforms. As the communication backbone of modern Tricon installations, the T8310 supports multiple protocols including Modbus TCP/IP and OPC DA/UA while maintaining the system’s SIL 3 integrity. Its primary function is to bridge the isolated TMR architecture with plant networks without compromising safety, providing real-time process data, diagnostics, and event sequences to operators. The module features dual-redundant Ethernet ports with built-in firewall protection and protocol conversion capabilities, making it indispensable for integrated safety solutions in hydrocarbon processing, power generation, and chemical manufacturing. The ICS TRIPLEX T8310 ensures cybersecurity compliance per IEC 62443 while delivering deterministic performance for mission-critical applications.

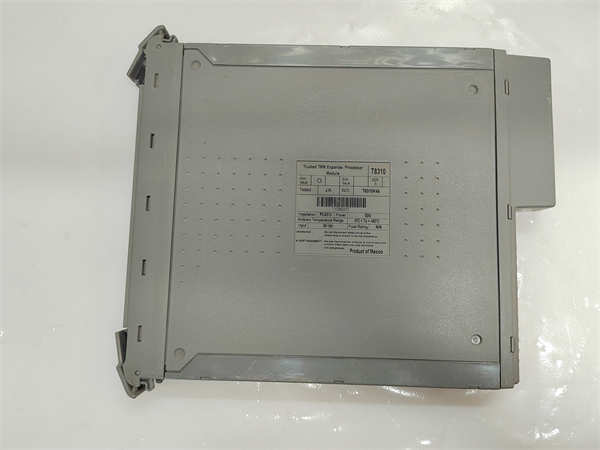

ICS TRIPLEX T8310

Technical Specifications

Main Features and Advantages

Secure TMR Integration: The T8310 maintains physical and logical separation between safety-critical TriBus networks and plant Ethernet, using hardware-enforced unidirectional data paths to prevent external threats from reaching the TMR controllers. Its dual-armored firewall configuration meets IEC 62443 Level 2 requirements.

Deterministic Data Exchange: With sub-100ms protocol processing latency, the module ensures real-time synchronization of process values between Tricon CX processors and host systems. The dual-redundant architecture provides bumpless failover during network disruptions or module failure.

Comprehensive Protocol Support: Native Modbus TCP mapping allows direct DCS integration without additional gateways. Optional OPC UA support (with firmware upgrade) enables secure, standardized data access for enterprise systems while preserving metadata context.

Advanced Diagnostics: Continuous health monitoring checks Ethernet PHY integrity, memory status, and communication queues. Detailed diagnostics are available through TriStation 1131 software, including packet error counts and connection status for predictive maintenance.

Future-Ready Design: Supports firmware updates without system shutdown and features configurable data grouping to optimize network bandwidth. The module’s DIN-rail mountable form factor simplifies retrofitting in legacy Tricon v11 systems.

Application Field

The ICS TRIPLEX T8310 is deployed where safety systems require seamless integration with operational networks. In offshore oil platforms, it connects Tricon CX ESD systems to central control rooms, transmitting real-time valve status and fire/gas alarms to DCS consoles. Refineries utilize the T8310 for FCCU unit shutdown coordination, synchronizing safety logic with APC systems via OPC UA.

Power plants rely on this module for turbine protection systems, streaming vibration trip signals and burner management data to historians for regulatory compliance reporting. Chemical facilities implement it for batch reactor safety interlocks, enabling recipe synchronization between SIS and PLCs. The T8310‘s hazardous area certification makes it ideal for gas compressor stations and LNG loading terminals where Zone 2 networking is required. Pharmaceutical manufacturers leverage its secure data tunneling for FDA audit trails in sterilization process safety systems.

Related Products

ICS TRIPLEX T8461: Legacy SNIM Module – Predecessor to T8310 for Tricon v11 systems.

ICS TRIPLEX 3721N: Network Communication Module – Complementary module for peer-to-peer T8310 networking.

ICS TRIPLEX T8832: Enhanced SNIM – Successor with gigabit Ethernet and TSN support.

ICS TRIPLEX 4000093-310: Control Network Module – Provides additional communication paths for T8310.

ICS TRIPLEX T8110B: Main Processor – Primary TMR controller interfaced by T8310.

ICS TRIPLEX 4000103-510: Power Supply – Provides conditioned power to T8310 chassis.

Triconex TCM: Termination Module – Field wiring interface for T8310-connected systems.

TriStation 1131: Configuration Software – Essential for T8310 setup and diagnostics.

ICS TRIPLEX T8310

Installation and Maintenance

Pre-installation preparation: Verify chassis compatibility (Tricon CX only). Pre-configure IP addresses/VLANs per network security policies. Use shielded CAT6 cables with proper grounding.

Maintenance recommendations: Monitor SNIM diagnostics via TriStation for packet errors or synchronization faults. Apply firmware updates during planned turnarounds using Schneider-supplied packages. Replace units showing persistent Ethernet link failures. Maintain 40°C maximum ambient temperature around module.
