Description

The ICS Triplex T9432 is a high-performance, multi-protocol communication gateway module engineered for Schneider Electric’s Triconex® Trident/Tricon V11 Safety Instrumented Systems (SIS). Designed for mission-critical integration, the T9432 bridges the gap between proprietary TriBus safety networks and open industrial Ethernet protocols, enabling deterministic data exchange with third-party control systems. As the most advanced communication module in the Triconex V11 series, it supports simultaneous PROFINET, EtherNet/IP, and Modbus TCP/IP connectivity while maintaining SIL 2 integrity per IEC 61508. The ICS Triplex T9432 features dual-redundant Gigabit Ethernet ports with built-in switch functionality, allowing daisy-chaining of devices to reduce cabling complexity. Its hardware-accelerated protocol processing ensures sub-millisecond jitter for time-critical safety interlocks, while advanced cybersecurity features including IPsec VPN and TLS 1.3 encryption protect against unauthorized access. The module operates reliably in extreme conditions (-40°C to +70°C) and is essential for modern industrial IoT implementations where safety data must seamlessly integrate with analytics platforms and cloud-based monitoring systems.

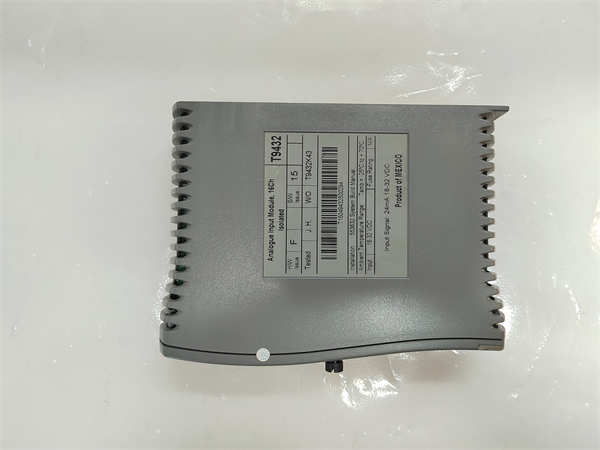

ICS TRIPLEX T9432

Technical Specifications

Main Features and Advantages

Multi-Protocol Concurrency: The T9432 uniquely processes PROFINET, EtherNet/IP, and Modbus TCP simultaneously on independent hardware engines, enabling seamless integration with Siemens, Rockwell, and Schneider PLCs without gateway cascading.

Deterministic Performance: Hardware time-stamping and IEEE 1588v2 support achieve ≤100µs synchronization accuracy for motion safety applications. The module’s non-blocking architecture ensures 95% bandwidth utilization at <1ms>

Cybersecurity Fortification: Implements end-to-end IPsec VPN tunnels with AES-256 encryption between safety networks and process control zones. Certificate-based device authentication and configurable firewall rules comply with IEC 62443-3-3.

Zero-Downtime Architecture: Dual active/active Ethernet ports with millisecond-level failover maintain communication during network disruptions. Hot-swappable design allows module replacement without system shutdown.

Advanced Diagnostics: Real-time monitoring of network jitter, packet loss, and protocol errors via embedded web server. Safety-critical alarms are prioritized with configurable QoS (DSCP tagging).

Application Field

The ICS Triplex T9432 revolutionizes hybrid safety-process integration across complex industrial ecosystems. In automotive manufacturing, it synchronizes safety-rated robots (PROFINET) with assembly line PLCs (EtherNet/IP) while feeding torque data to MES via Modbus TCP. Power generation facilities deploy the T9432 to integrate turbine trip systems with balance-of-plant DCS, enabling unified turbine protection logic across GE Mark VIe and Siemens T3000 platforms.

For pharmaceutical freeze-drying processes, the module maintains 21 CFR Part 11 compliance by securely transferring sterility-critical alarms to batch records systems. Oil refineries leverage its IPsec VPN capabilities to connect distributed safety systems across tank farms while isolating safety networks from process control zones. In semiconductor fabs, the T9432 achieves nanosecond-level timing coordination between toxic gas monitoring and vacuum system interlocks. Water treatment plants utilize it for secure remote access to safety controllers across flood-prone pump stations via encrypted tunnels.

Related Products

T9402: Basic communication gateway with Modbus TCP/OPC UA support

T9452: Fiber-optic communication module for EMI-intensive environments

T8832: Legacy Ethernet module for Tricon V10.5 systems

Triconex A4400: Industrial managed Ethernet switch

T8110E: Enhanced power supply for high-load communication chassis

Tricon CX: Compact controller with embedded multi-protocol support

TriStation 1131 v4.9: Engineering suite for T9432 configuration

TMR Analog Output Module T8431: For safety-critical actuation control

ICS TRIPLEX T9432

Installation and Maintenance

Pre-installation preparation: Verify chassis compatibility (Tricon V11 communication bay). Pre-configure network parameters (IP addresses, VLANs, firewall rules) in TriStation offline project. Ensure precision time protocol (PTP) grandmaster clock is available for synchronization-critical applications.

Maintenance recommendations: Monitor network utilization via embedded web interface (keep <80>T9432 by deactivating in software first, then extract vertically using extraction tool. Perform semi-annual cybersecurity audits including certificate renewal and access log analysis.
