Description

The GE IC693CPU374-GU is a high-performance CPU module for GE’s PACSystems RX3i platform, designed as a strategic migration path for legacy Series 90-30 systems. This ruggedized processor combines modern computing power with backward compatibility, featuring a 700 MHz PowerPC processor and 32MB user memory for complex automation tasks. The IC693CPU374-GU supports mixed control architectures by executing both ladder logic and C/C++ code simultaneously, making it ideal for brownfield upgrades. With dual embedded Ethernet ports (10/100 Mbps) and serial interfaces, it enables seamless integration of HMI, SCADA, and enterprise systems while maintaining deterministic control cycles down to 1 ms. The module operates reliably in extreme industrial environments (-40°C to +70°C) and includes built-in cybersecurity features like role-based access control and communication encryption. As the cornerstone of RX3i systems, the GE IC693CPU374-GU delivers future-proof processing for applications ranging from discrete manufacturing to critical infrastructure.

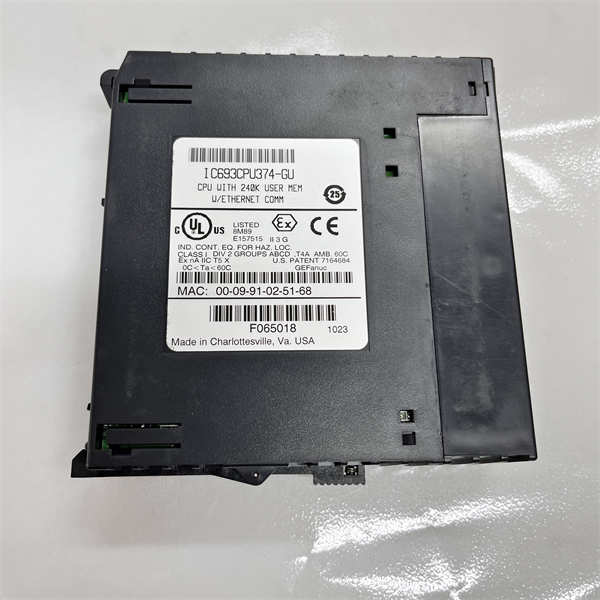

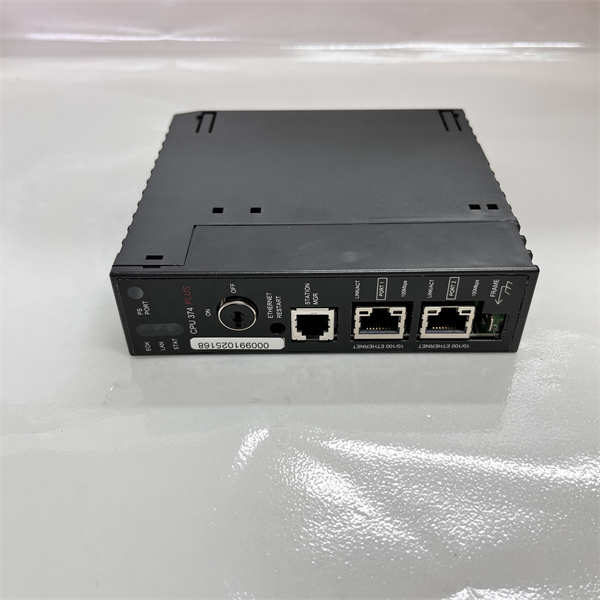

GE IC693CPU374-GU

Technical Specifications

Main Features and Advantages

Hybrid Processing Architecture: Executes traditional ladder logic alongside C/C++ in real-time through GE’s Machine Edition Logic Developer software, enabling advanced algorithms like predictive maintenance routines.

Legacy Integration Capability: Directly interfaces with Series 90-30 I/O modules via RX3i backplane, eliminating rewiring during system upgrades. Supports import of 90-30 programs with automatic conversion.

Cybersecurity Hardening: Implements IEEE 802.1X port authentication, IP address filtering, and SSL/TLS encryption for secure remote access. Audit trails log configuration changes with user ID and timestamp.

Deterministic Performance: Dedicated motion control ASIC achieves ≤10 µs jitter for synchronized axis control. Dual Ethernet ports support device-level ring (DLR) topology for fault-tolerant networks.

Advanced Diagnostics: Built-in oscilloscope function captures signal transients. Predictive failure analysis monitors capacitor health and memory error rates.

Application Field

The GE IC693CPU374-GU enables modernization across diverse industries. In automotive assembly lines, it synchronizes robotic welders while maintaining legacy conveyors. Water treatment plants leverage its DNP3 protocol for pump station control compliant with AWWA standards. Food processing facilities utilize the CPU’s -40°C cold-start capability for freezer automation.

For oil pipeline SCADA systems, the IC693CPU374-GU‘s SIL 2 rating ensures safe pump control with integrated surge protection logic. Mining operations deploy it for hoist motor control using C-based dynamic braking algorithms. In pharmaceutical packaging, the CPU’s real-time clock synchronizes batch reporting with 21 CFR Part 11 requirements. Power substations benefit from its hardware timestamping (IEEE 1588) for sequence-of-events recording.

Related Products

IC695CPE310: Higher-end RX3i CPU with 80MB memory

IC693CMM321: Communication module for Profibus DP

IC694ACC307: RX3i power supply for redundant systems

IC693ALG390: Analog input module for legacy integration

IC695ETM001: Gigabit Ethernet expansion module

Series 90-30 IC693MDL645: 32-point digital input module

VersaMax IC200CPUE05: Compact controller for distributed I/O

Proficy Machine Edition 9.0: Programming software suite

GE IC693CPU374-GU

Installation and Maintenance

Pre-installation preparation: Verify rack compatibility (IC693CHS397/398). Install backup battery before power-up. Configure IP addresses via USB port using Proficy ME software. Ensure firmware version ≥ 8.20 for security patches.

Maintenance recommendations: Monitor capacitor health indicator in diagnostics menu. Replace battery every 5 years (IC693ACC302). Perform quarterly memory checks using built-in diagnostics. For firmware updates, use boot mode (hold OK button during power cycle). Always discharge static electricity before handling the IC693CPU374-GU.
