Description

The ABB COM0011 2RAA005844A0007J is a high-reliability serial communication module designed for ABB’s Advant Controller 410/450 distributed control systems, serving as a critical gateway for legacy device integration. This module enables robust data exchange between AC 400-series controllers and third-party PLCs, instruments, and SCADA systems via industry-standard protocols. The COM0011 2RAA005844A0007J features dual configurable RS-232/485 ports with galvanic isolation (1500V AC) and surge protection, ensuring signal integrity in electrically noisy industrial environments. Supporting Modbus RTU/ASCII, DNP3, and IEC 870-5-101 protocols, it bridges ABB’s proprietary MB300 fieldbus with open networks while maintaining deterministic communication cycles. Engineered for 24/7 operation in extreme conditions (-25°C to +70°C), this module includes diagnostic LEDs for real-time channel status monitoring and supports hot-swapping during system operation. Its seamless integration with ABB’s S+ Engineering environment simplifies configuration for complex master/slave architectures in power generation and process industries.

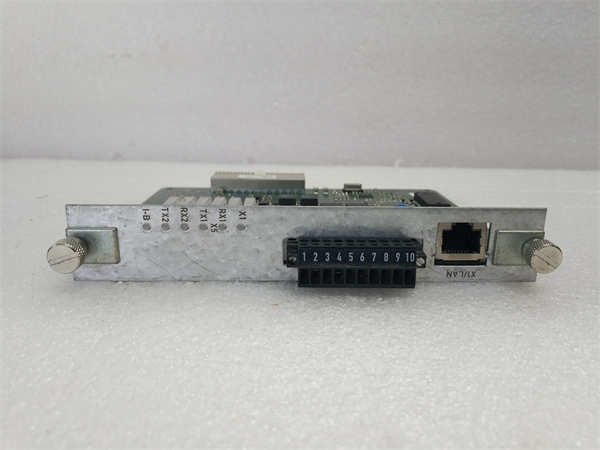

ABB COM0011 2RAA005844A0007J

Technical Specifications

Main Features and Advantages

Multi-Protocol Flexibility: Each port independently configures as Modbus master/slave or DNP3 outstation, enabling simultaneous integration of diverse devices like weigh scales and flow computers.

Deterministic Performance: Hardware-assisted protocol processing ensures ≤10ms response time for critical status points, with configurable timeout settings (100ms–10s) to prevent system hangs.

Robust Electrical Protection: Triple-stage surge suppression (gas discharge tube + TVS diodes + filtering) withstands 4kV electrical fast transients. Galvanic isolation eliminates ground loops in substations.

Seamless Legacy Integration: Direct mapping of Modbus registers to AC 410 I/O database via S+ Engineering software. Supports automatic slave polling with dead device detection.

Maintenance-Friendly Design: Hot-swappable without tools using front extraction lever. Configuration retention during power loss via non-volatile FRAM. Transparent mode for protocol analysis simplifies troubleshooting.

Application Field

The ABB COM0011 2RAA005844A0007J enables critical data integration:

Power Plants: Connects turbine governors (Modbus) and protection relays (IEC 870-5-101) to DCS for unified monitoring

Water Treatment: Bridges pump station RTUs (DNP3) with central SCADA across wide-area networks

Oil Refineries: Interfaces tank gauging systems and fire/gas panels via RS-485 multidrop networks

Cement Industry: Integrates weigh feeders and analyzer instruments in high-dust environments

Pharmaceuticals: Facilitates 21 CFR Part 11-compliant data logging from legacy batch controllers

Related Products

ABB SPA0001: 24V DC power supply for AC 410 racks

ABB KF1001: MB300 fieldbus coupler for network expansion

ABB AIM0006: Analog input module for sensor integration

ABB HIM013: HART interface module for smart instruments

Advant Controller 450: Main control unit for system hosting

ABB CI867: Modern PROFIBUS interface upgrade path

S+ Engineering 6.1: Configuration software suite

ABB COM0011 2RAA005844A0007J

Installation and Maintenance

Pre-installation preparation: Verify rack slot compatibility (requires AC 410 communication bay). Configure protocol parameters offline in S+ Engineering. Ensure termination resistors (120Ω) for RS-485 networks. Separate communication cables from power lines (>200mm).

Maintenance recommendations: Monitor port error counters monthly via S+ Diagnostics. Clean DB9 connectors annually with contact cleaner. Replace after >15,000 insertion cycles or if RX/TX LEDs show inconsistent activity. For firmware updates, use boot mode (jumper JP1).
