The HIMA X-BLK01 632590802 is a certified termination and interface module designed exclusively for HIMA’s HIMax® safety systems, ensuring signal integrity in critical safety instrumented functions (SIF). This DIN-rail-mounted block provides secure, fault-tolerant connections between field devices (sensors/actuators) and HIMA’s safety I/O modules (e.g., LM002_MAX). Engineered to maintain SIL 3 compliance per IEC 61511, the X-BLK01 632590802 features galvanic isolation, short-circuit protection, and spring-cage terminals for vibration-resistant wiring. Its compact design simplifies cabinet layout while enabling seamless integration with HIMax® backplanes. The module supports intrinsically safe (Ex i) and non-incendive circuits, making the HIMA X-BLK01 632590802 indispensable for maintaining safety loop integrity in explosive environments where reliable signal transmission is non-negotiable.

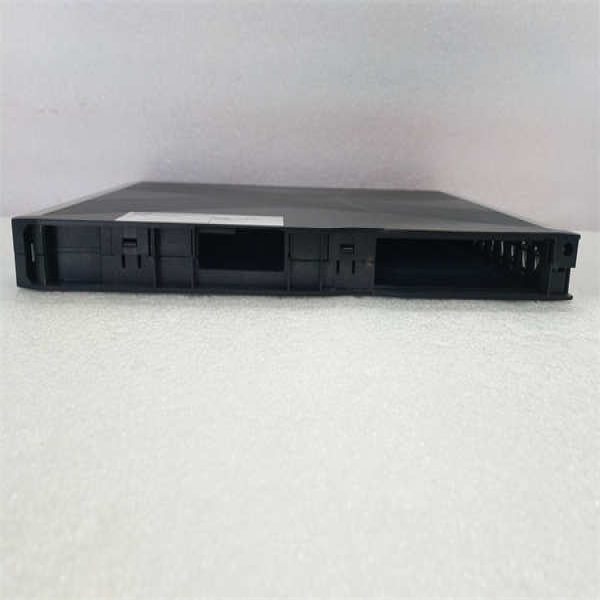

HIMA X-BLK01 632590802
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | X-BLK01 632590802 |
| Manufacturer | HIMA Paul Hildebrandt GmbH |
| Product Type | Safety Termination/Interface Module |
| Compatibility | HIMax® I/O Modules (e.g., LM0xx_MAX series) |
| Terminal Type | Spring-cage clamp (0.2–2.5 mm² / AWG 24–12) |
| Isolation Voltage | 1500 VAC channel-to-channel & channel-to-backplane |
| Max Field Voltage | 250 VAC/VDC (Non-Ex); 30 VDC (Ex i) |
| Max Current per Channel | 2 A (Non-Ex); 0.1 A (Ex i) |
| Short-Circuit Protection | Integrated per channel |
| Hazardous Area Certification | ATEX/IECEx Ex ia IIC (for Ex i circuits) |
| Safety Certification | SIL 3 (IEC 61511) |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Connection Direction | Front (field side) to rear (system side) |
| Mounting | DIN rail EN 60715 |
| Material | UL 94 V-0 polycarbonate |
Main Features and Advantages
Safety-Certified Signal Integrity: The X-BLK01 632590802 preserves SIL 3 loop integrity via galvanic isolation between channels and the backplane, preventing cross-talk and ground loops. Integrated current limitation protects downstream safety modules during field wiring faults.
Explosion Protection: Certified for ATEX/IECEx Ex ia IIC, this module eliminates the need for external barriers when connecting intrinsically safe sensors/actuators in Zone 0/1, reducing installation costs by up to 40%.
High-Density & Modular Design: Twelve channels in a 25mm width save panel space. Modules snap together laterally for expandability without tools. Color-coded terminals prevent wiring errors during maintenance.
Vibration Resilience: Spring-cage terminals maintain contact pressure under 15g vibration (IEC 60068-2-6), crucial for offshore platforms and rotating machinery.
Zero Configuration: The X-BLK01 632590802 requires no software setup. Its plug-and-play design allows hot swapping during operation without safety validation reset.
Application Field
The HIMA X-BLK01 632590802 is deployed where safety signals must be isolated and protected:
Oil & Gas Platforms: Interfaces ESD valve positioners, gas detectors, and pressure transmitters in Ex i circuits on FPSOs and refineries.
Chemical Processing Plants: Terminates SIL 3 loops for reactor temperature sensors, emergency vent valves, and flame scanners in corrosive atmospheres.
Power Generation: Connects turbine overspeed sensors (≥ SIL 3) and hydrogen leak detectors in Ex i areas of gas/coal-fired plants.
Pharmaceutical Manufacturing: Isolates signals for pressure relief systems in API synthesis, ensuring data integrity for FDA 21 CFR Part 11 compliance.
Mining & Material Handling: Protects conveyor belt emergency stop circuits in dusty/explosive (Group IIC) environments.
Related Products
LM002_MAX 985020002: 8-channel SIL 3 I/O module for direct connection to X-BLK01.
X-BLK02 632590803: 24-channel termination block for high-density cabinets.
BU08-MAX: Base unit for mounting LM002_MAX modules with integrated backplane.
PS960 HIMax® Power Supply: Certified 24VDC supply for safety systems.
HS4 Max Remote I/O Head: Extends HIMax® I/O to hazardous zones.
F35 DI/DO Module: Legacy module compatible via adapter plates.
HIMatrix® Engineering Suite: Configures connected I/O modules.
H50q HIMax® CPU: Central safety controller.

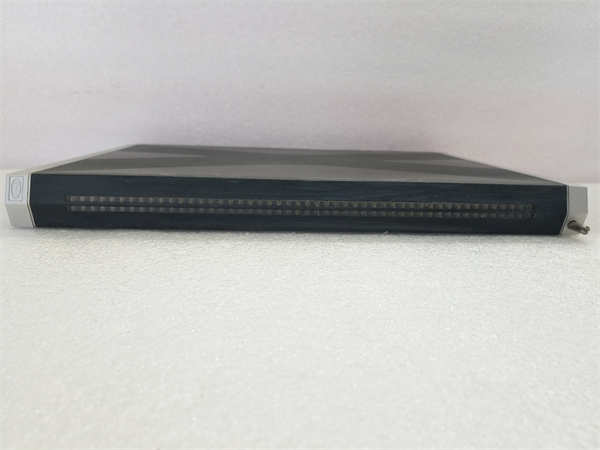

HIMA X-BLK01 632590802
Installation and Maintenance
Pre-installation preparation: Verify X-BLK01 632590802 compatibility with connected I/O modules (e.g., LM002_MAX). De-energize the system. Mount on 35mm DIN rail (EN 60715) with ≥20mm clearance above/below. Use HIMA-recommended crimp terminals (e.g., Phoenix Contact A-DFK 1.5). For Ex i circuits, ensure field device parameters (Ui, Ii, Pi) match module certifications.
Maintenance recommendations: Inspect terminals quarterly for corrosion or loosening (retorque to 0.6 Nm if needed). Verify isolation resistance (>100 MΩ at 500VDC) annually. Replace immediately if LED indicators (on connected I/O modules) show channel faults. Never mix non-Ex and Ex i circuits on the same X-BLK01 632590802.
