Description

The HIMA X-DI1601 985210222 is a SIL 3-certified 16-channel digital input module designed for HIMax® safety systems, specializing in high-density acquisition of critical status signals in safety instrumented functions (SIF). Engineered to IEC 61508/61511 standards, this module processes discrete signals from emergency stops, limit switches, and pressure/temperature switches with ultra-reliable fault detection. Each channel features dual-path diagnostics with galvanic isolation (1500V) and integrated short-circuit/open-circuit monitoring. The X-DI1601 985210222 supports both dry contact and 24VDC wet contact inputs, enabling direct integration into hazardous areas via ATEX/IECEx Ex ia intrinsic safety certification. With its hot-swappable design and real-time diagnostics accessible through HIMatrix® software, this module delivers uncompromising safety integrity for emergency shutdown (ESD) and fire & gas (F&G) systems where signal reliability directly impacts personnel and asset protection.

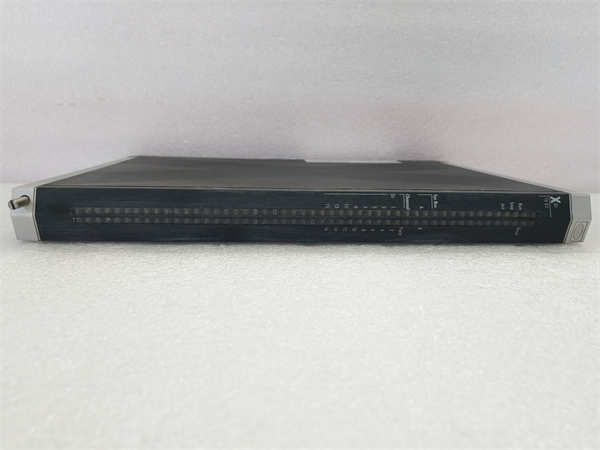

HIMA X-DI1601 985210222

Technical Specifications

Main Features and Advantages

Dual-Channel Diagnostic Architecture: Each input incorporates parallel signal paths with continuous cross-comparison, detecting dangerous faults (e.g., stuck-at-0/1) within 1 scan cycle. Integrated pulse testing validates sensor wiring integrity every 500ms.
Explosion-Protected Design: Certified for Zone 0/1/2 (Ex ia IIC) without external barriers when used with IS field devices, reducing installation costs by 30% versus conventional solutions.
High Noise Immunity: Class A EMI immunity (10V/m @ 80MHz–1GHz) and 4kV surge protection (IEC 61000-4-5) ensure stable operation in electrically noisy environments like switchyards or motor control centers.
Zero Configuration Hot-Swap: Module replacement requires no software intervention. Mechanical keying prevents incorrect insertion, while automatic parameter restoration via SD card minimizes downtime to <3> Condition Monitoring: Real-time channel diagnostics report contact wear (switch bounce count), insulation resistance degradation, and sensor supply health through HIMatrix® software, enabling predictive maintenance.

Application Field

The HIMA X-DI1601 985210222 is mission-critical in industries requiring fail-safe signal acquisition:
Offshore Oil & Gas: Monitors ESD pushbuttons, flame detectors, and HIPPS (High Integrity Pressure Protection) valve positions on FPSOs with SIL 3 reliability.
Chemical Processing: Acquires signals from safety interlocks on reactor agitators, chlorine gas detectors, and emergency deluge systems in corrosive atmospheres.
Power Generation: Interfaces turbine overspeed switches (≥ SIL 3) and hydrogen cooler leak detectors in Ex ia areas of combined-cycle plants.
Pharmaceutical Manufacturing: Validates door locks and pressure interlocks on sterile isolators per GAMP 5 guidelines.
Railway Signaling: Processes vital track circuit and point machine statuses with -40°C cold-start capability.

Related Products

X-DI0801 985210221: 8-channel SIL 3 digital input module for space-constrained cabinets.

X-DO1613 985210234: 16-channel digital output module for ESD valve control.

H50q HIMax® CPU: SIL 4-certified controller for processing X-DI1601 signals.

X-BLK01 632590802: Termination block for IS field wiring.

HS4 Max Remote I/O Head: Extends HIMax® I/O to Zone 0 locations.

HIMatrix® V10.1: Engineering suite for configuration and diagnostics.

F35 DI Module: Legacy module compatible via adapter plates.

PS960 Power Supply: Redundant 24VDC source for safety systems.

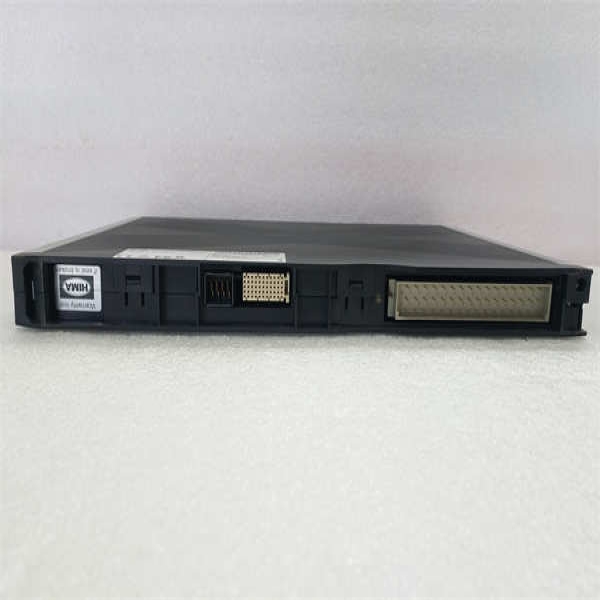

HIMA X-DI1601 985210222

Installation and Maintenance

Pre-installation preparation: Verify backplane compatibility (HIMax® BUxx series). De-energize the rack before inserting the X-DI1601 985210222. Use shielded twisted-pair cables (e.g., Belden 8761) for field connections. For Ex ia circuits, confirm field device parameters match certificate (Ui ≤ 30VDC, Ii ≤ 100mA). Apply HIMA-approved terminal ferrules (e.g., Phoenix Contact AI 0,5-4 WH).
Maintenance recommendations: Monitor channel status LEDs (green = healthy, red = fault) during rounds. Perform quarterly contact resistance tests via HIMatrix®. Replace after 500,000 switching cycles in high-usage applications. Update firmware during planned shutdowns using HIMatrix® Boot Manager. Never mix IS and non-IS circuits on the same X-DI1601.
