Description

The HIMA X-DO1201 985210204 is a SIL 3-certified 12-channel digital output module for HIMax® safety systems, engineered to execute critical shutdown commands in safety instrumented functions (SIF). Designed to IEC 61508/61511 standards, this module drives actuators for emergency valves, fire dampers, and turbine trip solenoids with failsafe reliability. Each channel features dual redundant switching elements (semiconductor + mechanical relay) and continuous diagnostics for dangerous fault detection. The X-DO1201 985210204 supports both high-current (5A) and intrinsically safe (Ex ia) outputs, enabling direct control in Zone 0/1 hazardous areas. With galvanic isolation (1500V), automatic load monitoring, and hot-swappable architecture, this module ensures deterministic response (<15ms>

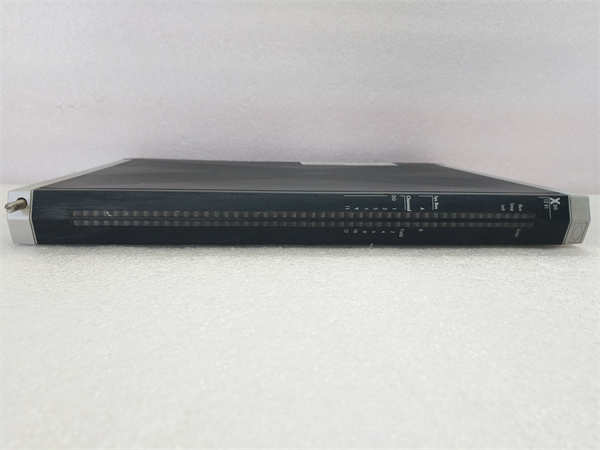

HIMA X-DO1201 985210204

Technical Specifications

Main Features and Advantages

Dual-Element Safety Architecture: Each channel combines a fast semiconductor output (for immediate trip) with a fault-tolerant relay (for galvanic isolation). Cross-monitoring detects contact welding or MOSFET failures within 50ms.
Explosion-Protected Operation: Semiconductor outputs carry ATEX/IECEx Ex ia certification, enabling direct control of IS solenoids in Zone 0 without external barriers. Relay outputs handle non-IS loads up to 5A.
Load Diagnostics: Real-time monitoring detects open-circuit, short-circuit, and overload conditions. Predictive analytics in HIMatrix® software track contact erosion in relays based on switching cycles.
Fail-Safe De-energization: Implements HIMA’s “Safe Disconnection” principle: On fault detection, both semiconductor and relay outputs force de-energized state independently.
Maintenance Optimization: Hot-swappable with automatic configuration restore via SD card. Mechanical keying prevents insertion into incompatible slots. Channel-level diagnostics reduce troubleshooting time by 70%.

Application Field

The HIMA X-DO1201 985210204 is deployed where safety actions demand absolute reliability:
Oil & Gas Platforms: Triggers ESD valves, wellhead shutdowns, and F&G suppression systems on SIL 3-certified HIPPS.
Chemical Plants: Commands reactor quench systems, emergency venting, and toxic gas scrubber activation.
Power Generation: Executes turbine trips, fuel shutoff, and hydrogen purge during overspeed/vibration events.
Pharmaceutical: Controls isolation dampers in containment labs and emergency steam shutoff for autoclaves.
Tunnel Safety Systems: Activates jet fans and fire doors in road/rail tunnels per EN 50545.

Related Products

X-DO0801 985210203: 8-channel version for space-limited cabinets.

X-DI1601 985210222: Complementary 16-channel digital input module.

H50q HIMax® CPU: SIL 4 controller for processing X-DO1201 commands.

X-BLK01 632590802: Termination block for IS field wiring.

PS960 Power Supply: Redundant 24VDC source with SIL 3 certification.

HIMatrix® V10.1: Configuration/diagnostics software.

F35 DO Module: Legacy output module compatible via adapters.

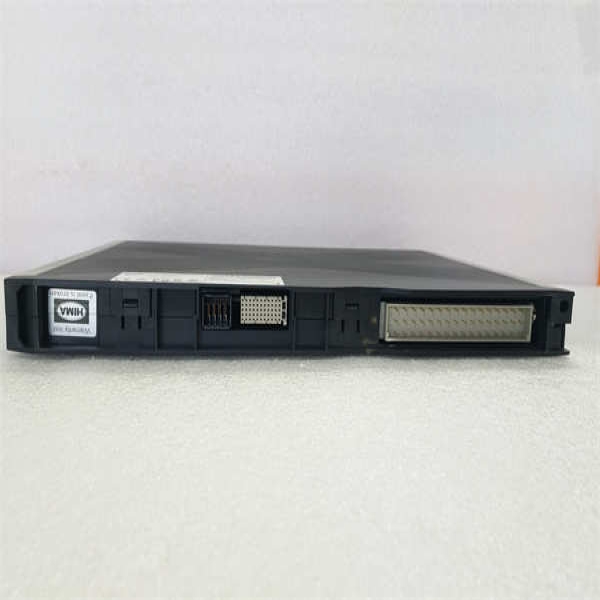

HIMA X-DO1201 985210204

Installation and Maintenance

Pre-installation preparation: Verify backplane compatibility (HIMax® BUxx series). De-energize rack before insertion. For Ex ia circuits, calculate cable parameters (L₀/C₀) per certificate 19 ATEX 029U. Use separate conduits for IS/non-IS wiring. Tighten terminals to 0.6 Nm with HIMA-approved ferrules.
Maintenance recommendations: Test output functionality quarterly via forced commands in HIMatrix®. Monitor relay contact cycles – replace after 100,000 operations. Clean dust from heatsinks annually. Verify semiconductor output current (<100mA>
