Description

The HIMA X-FAN1003 993201013 is a critical thermal management component engineered for HIMax® safety system cabinets, ensuring optimal operating temperatures for SIL 3/4-certified controllers and I/O modules in demanding industrial environments. This redundant cooling module actively monitors and regulates airflow within HIMA safety system enclosures, preventing overheating that could compromise safety instrumented functions (SIF). Designed for continuous 24/7 operation, the X-FAN1003 993201013 features dual brushless DC fans with automatic load-sharing and failover capabilities, maintaining airflow even during single-fan failure. Its integrated differential pressure sensors detect filter clogging, while speed monitoring provides real-time health data to the HIMax® diagnostics system. With IP54-rated construction, vibration-resistant mounting, and compliance with industrial EMC standards, the HIMA X-FAN1003 993201013 delivers mission-critical thermal stability for safety systems protecting refineries, power plants, and other high-hazard processes.

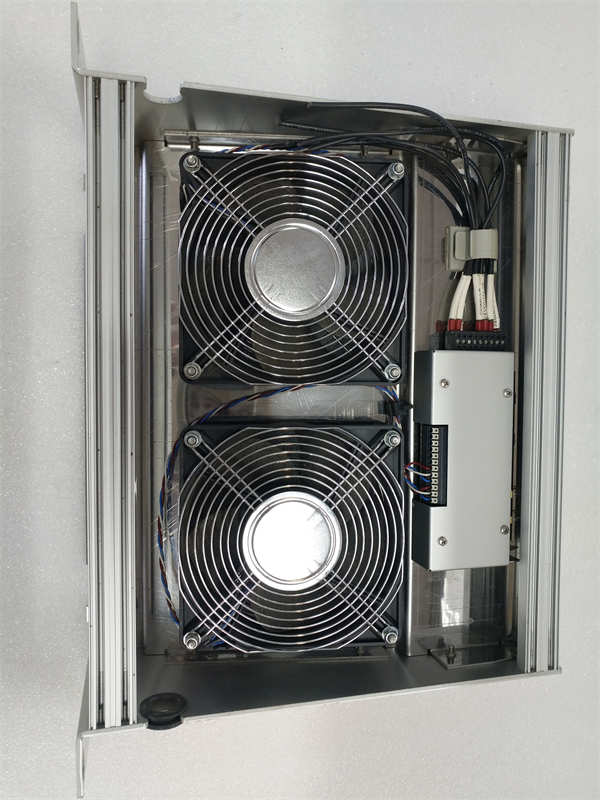

HIMA X-FAN1003 993201013

Technical Specifications

Main Features and Advantages

Redundant Cooling Architecture: Dual fans operate in parallel with automatic load balancing. If one fan fails, the second immediately ramps to 100% speed while triggering a maintenance alarm – ensuring continuous thermal management without safety system interruption.
Predictive Maintenance Capabilities: Real-time monitoring of fan speed (via PWM) and filter status (via ΔP sensor) enables condition-based maintenance. Data integrates directly into HIMax® diagnostics through dedicated input channels on safety controllers.
Vibration-Optimized Design: Anti-resonance mounts and dynamic balancing eliminate harmonic vibrations that could damage adjacent electronic components, crucial for installations near rotating machinery.
Easy Serviceability: Tool-less fan cartridge replacement allows maintenance without cabinet shutdown. Color-coded airflow indicators confirm correct installation orientation.
EMC Compliance: Meets EN 61326-3-1 for industrial electromagnetic compatibility, preventing interference with sensitive safety logic solvers. Filter retainers suppress RF emissions from brushless motors.

Application Field

The HIMA X-FAN1003 993201013 is deployed wherever safety system integrity depends on thermal stability:
Offshore Platforms: Maintains HIMax® cabinet temperatures in FPSO engine rooms subject to +55°C ambient heat.
Gas Compression Stations: Prevents dust-induced overheating in remote unmanned facilities with SIL 3 ESD systems.
Power Generation: Cools turbine protection cabinets in combined-cycle plants where concrete vibrations demand robust mounting.
Chemical Plants: Ensures reliable operation in corrosive atmospheres with IP54 sealing and stainless steel fasteners.
Mining Operations: Handles coal dust loading with replaceable ISO Coarse 70% efficiency particulate filters.

Related Products

PS960 985120001: SIL 3-certified power supply with integrated cooling supervision.

X-FILTER01 993201015: Replacement particulate filter kit for X-FAN1003.

BU20-MAX: 20-slot backplane requiring active cooling for high-density configurations.

H50q CPU: Primary safety controller cooled by X-FAN1003.

X-TEMP01 993201017: Cabinet temperature monitor with MODBUS RTU output.

HS4 Max Remote I/O Head: Field unit with passive cooling for Zone 2 areas.

Rack-Mounting Kit RK-4: Vibration-damped rails for seismic zones.

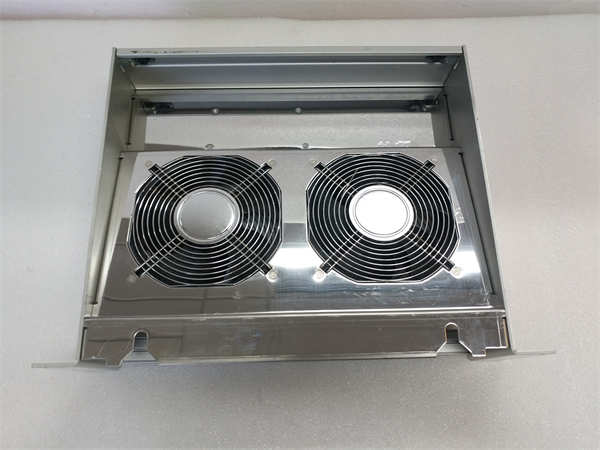

HIMA X-FAN1003 993201013

Installation and Maintenance

Pre-installation preparation: Verify cabinet cutout dimensions (typically 120x120mm). Ensure minimum 75mm clearance behind module for airflow. Route power cables away from signal wiring. Configure HIMax® controller to monitor fan status inputs (Ch1: Fan1 Speed, Ch2: Fan2 Speed, Ch3: ΔP Filter).
Maintenance recommendations: Replace particulate filters every 6 months in dusty environments (trigger at 150 Pa ΔP). Clean fan blades quarterly with non-static brush. Test redundancy monthly by manually stopping one fan while verifying the second accelerates. Replace both fans after 5 years or 60,000 hours – even if operational – to prevent wear-induced failures. Store spare fan cartridges in anti-static packaging.
