Description

The MTL 8502-BI-DP is a galvanically isolated barrier designed for DeviceNet networks in hazardous industrial environments. Manufactured by MTL Instruments (part of Eaton), this module enables safe communication between field devices in explosive atmospheres and control systems in non-hazardous areas. Certified for Zone 1/2 and Division 2 locations, the MTL 8502-BI-DP ensures signal integrity while preventing energy transmission that could ignite flammable gases or dust. It supports up to 64 nodes on a single DeviceNet segment with a 500 kbps baud rate, making it ideal for real-time safety-critical applications.

As a key component in MTL’s 8000 series, the MTL 8502-BI-DP features dual power inputs for redundancy and surge protection up to 1.5 kV. Its DIN-rail mounting design simplifies installation in control cabinets, while screw terminals accommodate 0.2–2.5 mm² wiring. The module’s SIL 3 certification (IEC 61508) ensures compliance with functional safety standards, enabling deployment in emergency shutdown systems (ESD) and fire/gas detection networks where signal reliability is non-negotiable.

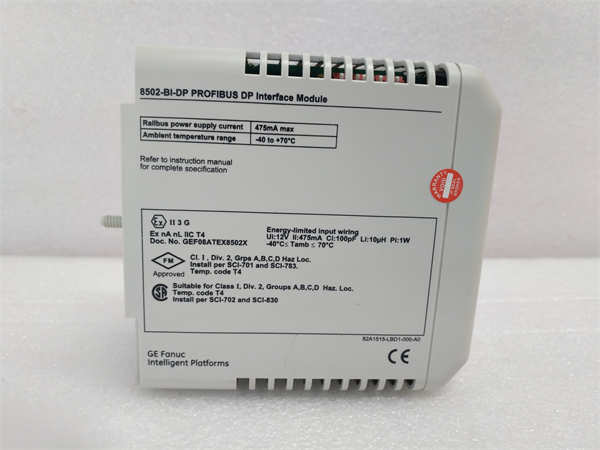

MTL 8502-BI-DP

Technical Specifications

Main Features and Advantages

Hazardous area safety:
The MTL 8502-BI-DP provides galvanic isolation and energy limitation to meet ATEX/IECEx requirements for Zone 1/2. Its patented “entity concept” design ensures intrinsically safe (IS) operation without external isolators, preventing ignition risks in petrochemical or pharmaceutical facilities.

Network reliability:
With CAN-based signal replication and 500 kbps data throughput, the barrier maintains DeviceNet communication integrity across long distances (up to 500m). Dual power inputs with reverse polarity protection eliminate single-point failures, while built-in surge suppression (1.5 kV) shields against lightning strikes.

Operational efficiency:
Hot-swappable modules allow maintenance without network shutdown. The MTL 8502-BI-DP’s LED status indicators simplify troubleshooting, and its DIN-rail form factor reduces cabinet space by 40% versus conventional isolators. SIL 3 certification streamplicates safety validation for IEC 61511-compliant SIS.

Application Field

The MTL 8502-BI-DP is deployed where DeviceNet networks interface with hazardous areas. In oil refineries, it isolates tank-level switches and gas detectors for fire/gas systems. Pharmaceutical plants use it for SIL 3-rated valve position feedback in solvent-handling zones.

Mining operations leverage the barrier for conveyor belt fault signaling in methane environments. Automotive manufacturing relies on it for robotic emergency stops in paint spray booths (Zone 1). The MTL 8502-BI-DP also enables safety interlocks in grain silos, where combustible dust requires ATEX-certified isolation.

Related Products

MTL 8380-BI-DP: High-density DeviceNet barrier for 8 channels.

MTL 7781: Zener barrier for analog signals (4–20 mA).

MTL 5502-BI-PROF: PROFIBUS DP isolator for Zone 2.

MTL 8382-BI-FF: Foundation Fieldbus H1 isolator.

MTL 4512: Surge protector for Ethernet/IP networks.

MTL 5041: DIN-rail power supply for isolator systems.

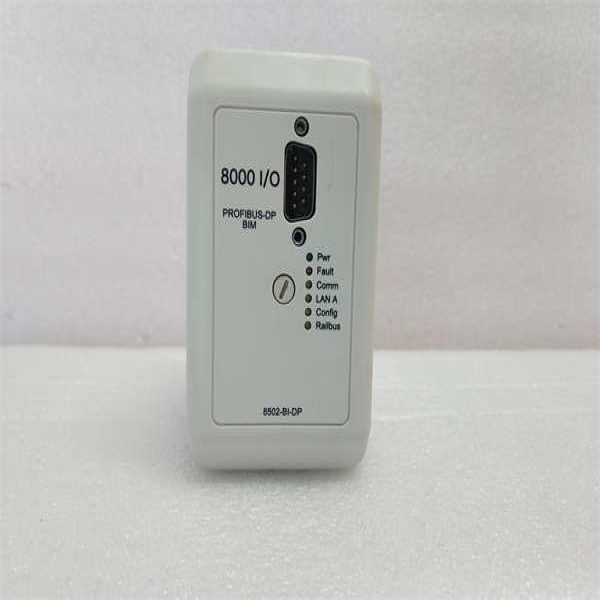

MTL 8502-BI-DP

Installation and Maintenance

Pre-installation preparation: Verify DeviceNet network termination (120 Ω resistors) and baud rate consistency. Ensure earth bonding continuity (<0>MTL 8502-BI-DP’s ground terminal and the central earth point using 4 mm² cable. De-energize all connected devices before wiring.

Maintenance recommendations: Monitor LED status indicators monthly (green = normal; red = fault). Perform annual insulation resistance tests (>100 MΩ at 500 V DC). Replace every 10 years or after surge events. Use MTL’s NetAlert software for real-time network diagnostics. Never modify internal jumpers – recalibration voids certification.
