The ABB PM866K01 3BSE050198R1 is a high-availability controller for ABB’s flagship AC 800M Distributed Control System (DCS), engineered for mission-critical process automation. As a Premium Automation Controller (PM866 variant), this unit features dual-core Intel® processors with hardware redundancy support, delivering deterministic control for complex industrial processes. The ABB PM866K01 executes safety and process applications up to SIL 3 (IEC 61508) and AK6 (IEC 62264), managing up to 300,000 I/O points across redundant ControlNet or Ethernet networks. Its integrated cybersecurity protocols (OPC UA encryption, role-based access) protect against unauthorized access in interconnected OT/IT environments.
Designed for 24/7 operation, the module supports hot-swap maintenance and automatic bumpless failover (<100>ABB PM866K01 3BSE050198R1 integrates with ABB’s 800xA extended automation platform, enabling advanced diagnostics, asset optimization, and digital twin integration. With extended temperature tolerance (-40°C to +70°C) and Class 1 Div 2/ATEX Zone 2 certification, it serves extreme environments from arctic oil fields to tropical chemical plants.

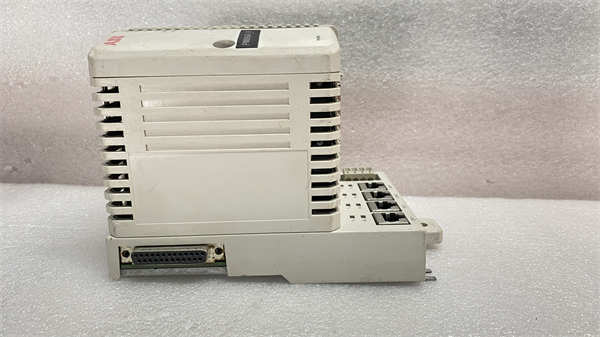

ABB PM866K01 3BSE050198R1
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | PM866K01 3BSE050198R1 |
| Manufacturer | ABB |
| Product Type | Process Automation Controller |
| Processor | Dual-core Intel® Atom E3826 1.46 GHz |
| Memory | 4 GB DDR3 RAM / 16 GB Flash |
| Safety Certification | SIL 3 (IEC 61508), SCAN 3 (PNO) |
| Redundancy | <100> |
| Max I/O Capacity | 300,000 points |
| Communication | 2x Gigabit Ethernet, 1x ControlNet, 1x USB |
| Backplane Interface | PCI Express (5 Gbps) |
| Power Supply | 24 V DC (redundant inputs) |
| Power Consumption | 35 W (max) |
| Operating Temperature | -40°C to +70°C |
| Relative Humidity | 5–95% (non-condensing) |
| Vibration Resistance | 1 g (5–150 Hz) |
| Certifications | ATEX Zone 2, UL/cUL Class I Div 2 |
Main Features and Advantages
Mission-critical reliability:
Triple-redundant hot-backup architecture ensures <1>
Advanced performance:
Dual-core processor handles 200+ control loops simultaneously with 50 ms scan times. Integrated OPC UA Pub/Sub supports Industry 4.0 data streaming to MES/ERP systems. Hardware-assisted virtualization runs legacy and modern applications on isolated partitions.
Cybersecurity and diagnostics:
TÜV-certified secure boot and encrypted firmware updates prevent tampering. Integrated System 800xA Diagnostics generates predictive maintenance alerts for CPU load, memory leaks, or network congestion.
Application Field
The ABB PM866K01 3BSE050198R1 dominates critical infrastructure control. In power generation, it manages turbine sequencing, grid synchronization, and emissions monitoring for combined-cycle plants. Oil refineries deploy it for catalytic cracker control and flare gas recovery.
Pharmaceutical batch processes leverage its FDA 21 CFR Part 11 compliance for electronic batch records. Mining operations use it for autonomous haulage system coordination. The ABB PM866K01 also controls cross-country pipelines with hydraulic modeling and leak detection algorithms.
Related Products
ABB PM856K01: Compact controller for mid-range applications
ABB CI867: PROFINET I/O Controller module
ABB SD822: Redundancy module for PROFIBUS DP networks
ABB SAFE 800xA: SIL 3-certified safety application suite
ABB TU847: ControlNet communication interface
ABB CP635: Local HMI for controller diagnostics
ABB 3BSE050367R1: Redundant power supply for PM866K01
ABB PM866K01 3BSE050198R1
Installation and Maintenance
Pre-installation preparation: Verify rack compatibility (PM8xx series). Maintain 50 mm clearance above/below for airflow. Use ABB-recommended grounding kits (3BSE019297R1) for <0>
Maintenance recommendations: Perform quarterly Condition Monitoring reports via 800xA. Update firmware during planned shutdowns using System Installer. Replace cooling fans every 60,000 hours. Validate SIL functions annually per IEC 61511. Store configuration backups on secure SD cards.
