The PROSOFT 5304-MBP-PDPM is a high-performance protocol gateway that seamlessly bridges PROFIBUS DP networks with Schneider Electric’s Modbus Plus (MB+) industrial networks. Designed for bi-directional data exchange in multi-vendor automation environments, this module enables real-time communication between PROFIBUS DP masters (e.g., Siemens PLCs) and Modbus Plus devices (e.g., Modicon Quantum). The PROSOFT 5304-MBP-PDPM operates as a PROFIBUS DP slave and Modbus Plus master, translating up to 1,000 registers with configurable mapping. Its rugged DIN-rail design features 2.5 kV optical isolation between networks, eliminating ground loops while supporting PROFIBUS DP baud rates up to 12 Mbps and MB+ at 1 Mbps.
With dual independent processors and non-volatile memory, the PROSOFT 5304-MBP-PDPM maintains configuration during power loss. Diagnostic LEDs and web-based management simplify troubleshooting. Certified for -40°C to +85°C operation with 30g shock resistance, it withstands harsh substations, oil rigs, and manufacturing floors where protocol interoperability is critical for SCADA integration.

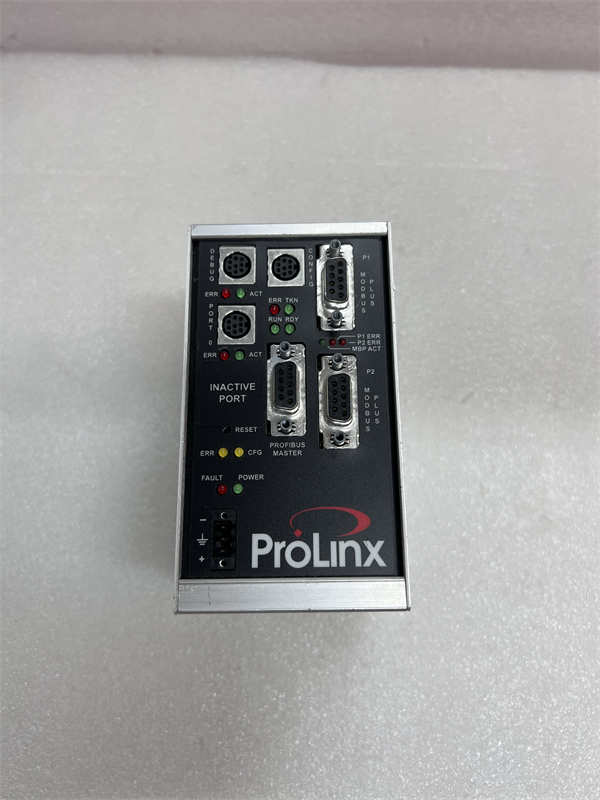

PROSOFT 5304-MBP-PDPM
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | 5304-MBP-PDPM |
| Manufacturer | ProSoft Technology |
| Product Type | Protocol Gateway (PROFIBUS DP ↔ Modbus Plus) |
| PROFIBUS DP Role | Slave (IEC 61158/61784) |
| Modbus Plus Role | Master |
| Max Data Exchange | 1,000 registers (2,000 bytes) |
| PROFIBUS DP Speed | 9.6 kbps – 12 Mbps (auto-sensing) |
| Modbus Plus Speed | 1 Mbps |
| Isolation | 2.5 kV optical (between networks) |
| PROFIBUS DP Interface | 9-pin D-Sub (RS-485) |
| Modbus Plus Interface | RJ45 token-passing network |
| Power Supply | 24 V DC (18–32 V) |
| Power Consumption | 6 W |
| Operating Temperature | -40°C to +85°C |
| Humidity Tolerance | 5–95% non-condensing |
| Certifications | CE, UL, cULus, DNV-GL |
| Dimensions (HxWxD) | 150 x 110 x 70 mm |
Main Features and Advantages
Seamless protocol translation:
Intelligent mapping engine converts PROFIBUS DP cyclical data to Modbus Plus %M and %I registers without scripting. Supports Siemens S7-compatible data blocks and Modicon network variables.
Robust diagnostics:
Dual-color LEDs monitor network status, data flow, and errors. Built-in web server provides real-time traffic analysis and packet decoding. Non-volatile memory logs 1,000 error events.
Deployment flexibility:
Hot-swappable design allows module replacement without network restart. Auto-baud detection on PROFIBUS DP simplifies commissioning. MB+ token hold time optimization prevents network timeouts.
Application Field
The PROSOFT 5304-MBP-PDPM integrates legacy and modern control systems:
Power Generation: Bridges Siemens T300 turbine controls with Modicon-based balance-of-plant SCADA
Water Treatment: Connects PROFIBUS DP flowmeters to Modicon PLCs for pump station control
Oil & Gas: Links subsea PROFIBUS DP I/O to topside Modbus Plus safety systems
Manufacturing: Synchronizes packaging lines (PROFIBUS drives) with Modicon batch reactors
Mining: Integrates conveyor PROFIBUS motor starters into Modbus Plus asset management systems

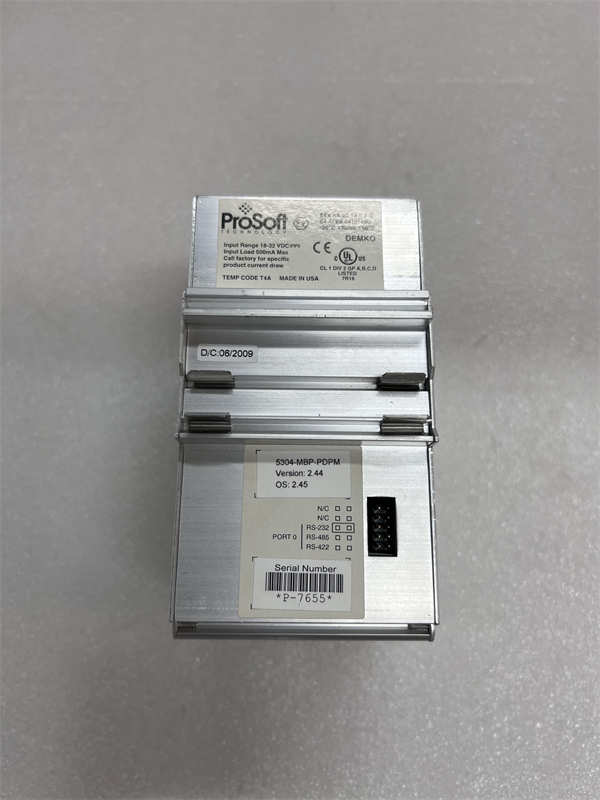

PROSOFT 5304-MBP-PDPM
Related Products
PROSOFT PLX31-MBTCP: Modbus TCP to PROFIBUS DP gateway
PROSOFT 5204-MBS-PDPMV2: Modbus Serial to PROFIBUS DP version
PROSOFT MVI56E-MBP: Modbus Plus interface for ControlLogix
PROSOFT ILX56-PDPM: PROFIBUS DP master for CompactLogix
PROSOFT PS-AC-12: DIN-rail power supply for gateways
Installation and Maintenance
Pre-installation preparation: Terminate PROFIBUS DP ends with 220Ω resistors. Verify MB+ network termination resistors (120Ω) at both ends. Ground shield wires at one point only. Isolate 24V power from noisy sources.
Maintenance recommendations: Update firmware annually via ProSoft Configuration Builder. Monitor “Heartbeat” LED for communication health. Clean RJ45 contacts biannually with electrical contact cleaner. Replace after 10 years or if error logs show CRC failures.
