Description

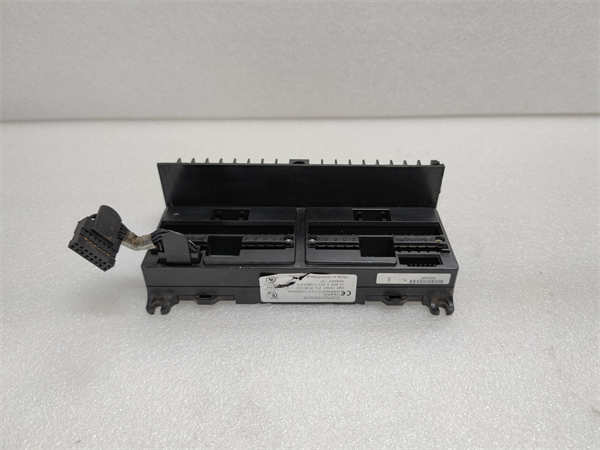

The GE IC670CHS001E is a high-performance Profibus DP Slave Interface Module designed for GE’s VersaMax PLC and PACSystems platforms, enabling seamless integration with Profibus-DP networks in industrial automation environments. This module acts as a critical communication gateway, allowing VersaMax I/O stations to exchange data with Profibus master devices like Siemens PLCs, ABB drives, or SCADA systems at speeds up to 12 Mbps. The GE IC670CHS001E supports up to 244 bytes of input/output data per node and features automatic baud rate detection, simplifying network configuration. Its ruggedized design includes galvanic isolation (1500V AC) and integrated diagnostics LEDs for real-time network status monitoring. As part of GE’s VersaMax Micro expansion family, the GE IC670CHS001E delivers cost-effective connectivity for distributed control systems in manufacturing and process industries, reducing integration complexity while ensuring deterministic data exchange. The module’s EEPROM retains configuration during power loss, ensuring rapid recovery – a critical feature for continuous process operations.

GE IC670CHS001E

Technical Specifications

Main Features and Advantages

Network Integration Excellence: The GE IC670CHS001E features automatic address learning and plug-and-play configuration via GSD file import, reducing commissioning time by 40% compared to manual setups. Its dual-processor architecture separates backplane and Profibus communications, ensuring deterministic performance even during network storms. Diagnostic Capabilities: Front-panel LEDs provide instant visibility into power, active connection, data exchange, and fault states, while detailed error codes are accessible through the controller for predictive maintenance.

Robust Connectivity: Supports up to 32 I/O modules per node with configurable watchdog timers and automatic baud rate synchronization. The module’s galvanic isolation protects controllers from ground loops and voltage surges, critical in electrically noisy environments like steel mills. Hot-swappable design enables module replacement without network shutdown when used in redundant configurations. The GE IC670CHS001E also supports Profibus-DPV1 extended diagnostics for advanced asset management integration.

Application Field

The GE IC670CHS001E enables hybrid automation solutions in automotive manufacturing, where it interfaces GE VersaMax safety controllers with Profibus-enabled robotic arms (e.g., KUKA, ABB) for coordinated assembly operations. In pharmaceutical plants, it connects environmental monitoring sensors to central DCS systems for FDA-compliant data logging.

For water treatment facilities, the module bridges GE flowmeters and valve controllers to Siemens PCS7 SCADA networks across distributed pumping stations. In packaging machinery, the GE IC670CHS001E synchronizes servo drives from multiple vendors on high-speed filling lines. Energy sector applications include wind turbine farms, where it integrates GE condition monitoring I/O with third-party turbine controllers via fiber-optic Profibus repeaters. The module’s -20°C operational rating makes it suitable for cold storage logistics control panels.

GE IC670CHS001E

Related Products

GE IC670CHS002: Profibus-DP Master module for VersaMax CPUs

GE IC670PBI001: Profibus interface cable (9-pin to terminal block)

GE IC200CPU001: VersaMax Micro CPU compatible with CHS001E

GE IC670ALG320: Analog input module for CHS001E-backed systems

GE IC670MDL240: 16-point digital input module

GE IC693CBL733: Backplane extension cable for distributed I/O

GE VersaMax EPU001: Expansion Power Unit for additional racks

GE Proficy Machine Edition: Configuration software for CHS001E

Installation and Maintenance

Pre-installation preparation: Verify controller compatibility (requires Series 90-30 or VersaMax CPU with firmware 8.0+). Configure the GSD file in your Profibus master software before physical installation. Set the node address via rotary switches (1-99). Maintenance recommendations: Monitor “SYNC/Freeze” diagnostic counters in Proficy ME for network health. Clean D-sub connectors annually with isopropyl alcohol. When replacing the GE IC670CHS001E, upload configuration from EEPROM first using PBI cable. Avoid bending radius<50mm>
