The Vibro-meter VM600 MPC4 200-510-041-021 200-510-111-021 are high-integrity vibration monitoring processor cards designed for Baker Hughes’ VM600 Machinery Protection System, delivering SIL 2-certified safety for critical rotating equipment. These modules process signals from proximity probes, accelerometers, and speed sensors to detect machinery faults like imbalance, misalignment, and bearing wear in real-time. The VM600 MPC4 200-510-041-021 (standard version) and 200-510-111-021 (enhanced diagnostic variant) feature quad-channel processing with 24-bit resolution, executing advanced algorithms including orbit plots, phase analysis, and custom transient detection. Engineered for gas turbines, compressors, and steam turbines in energy and process industries, these cards support dual-redundant backplane communication while operating in -40°C to +85°C environments.

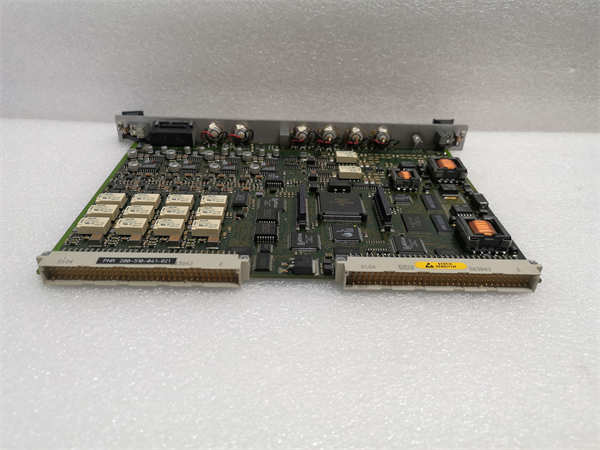

Vibro-meter 200-510-041-021 200-510-111-021 VM600 MPC4
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | VM600 MPC4 200-510-041-021 / 200-510-111-021 |
| Manufacturer | Baker Hughes (formerly Vibro-meter) |
| Product Type | Vibration Processor Card |
| Channels | 4 (simultaneous acquisition) |
| Input Types | Eddy current probes (5-25V RMS), IEPE accelerometers (2-25mA), Tachometer |
| Signal Resolution | 24-bit ADC @ 51.2 kHz/channel |
| Dynamic Range | 120 dB |
| Processing Capability | Real-time FFT (up to 12,800 lines), Waveform, Orbit, Phase |
| Algorithms | ISO 10816/20816, API 670 custom |
| Safety Certification | SIL 2 (IEC 61508) |
| Communication | Dual-redundant VMIPC (25 Mbps) |
| Operating Temperature | -40°C to +85°C |
| Power Supply | +5 VDC ±5% (3.5W max) |
| MTBF | 250,000 hours |
| Certifications | ATEX/IECEx Zone 2, cCSAus |
Main Features and Advantages
Advanced Diagnostic Engine: The VM600 MPC4 200-510-111-021 adds model-based fault detection using digital twins for early warning of sub-synchronous vibrations. Both cards perform automatic sensor validation (ASV) to detect probe degradation before failures occur.
Safety-Critical Architecture: Hardware-based voting logic meets SIL 2 requirements for turbine protection systems. Dual-channel isolation prevents cross-talk during events like surge-induced vibrations. The VM600 MPC4 200-510-041-021 executes 500+ protective logic functions with 1ms response time.
Cyber-Secure Operation: Signed firmware updates and role-based access control (per ISA/IEC 62443) prevent unauthorized configuration changes. Continuous self-monitoring triggers alerts for PCB deformation or clock drift.
Application Field
The VM600 MPC4 200-510-041-021 protects centrifugal compressors in LNG liquefaction trains, detecting dry-gas seal instabilities via orbit analysis. Combined-cycle power plants use it for steam turbine blade resonance monitoring during fast startups. In offshore platforms, the 200-510-111-021 variant predicts pump cavitation through real-time demodulation of high-frequency bearing signals.
Wind turbine gearbox monitoring leverages its 51.2 kHz sampling to capture tooth mesh frequencies. Petrochemical applications include turboexpander protection where phase measurements prevent rotor instability during load changes.
Related Products
VM600 RST 200-580-002-040: Rack for MPC4 card installation
VM600 AIF 200-550-001-021: Analog interface module
VM600 DIO 200-530-001-021: Digital I/O companion card
VM600 CMS4 200-520-101-021: Communication system module
Vibro-meter CXM 010-905-001: Proximitor power supply
Vibro-meter CXM 002-900-001: 8mm Eddy current probe
Vibro-meter VM600 CMC 016: Configuration software
Vibro-meter 200-510-041-021 200-510-111-021 VM600 MPC4
Installation and Maintenance
Pre-installation preparation: Verify rack compatibility (requires VM600 RST series). Ground chassis to <1>VM600 MPC4 200-510-111-021, update digital twin models after major machinery overhauls.
