Description

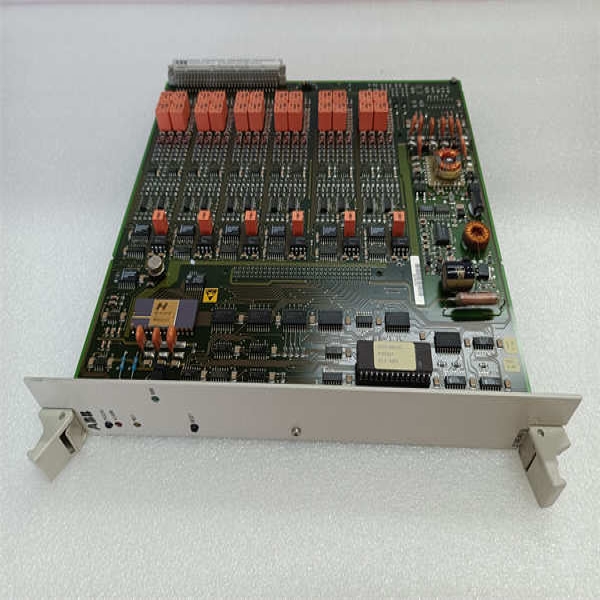

The ABB 216EA61b is a high-precision 8-channel analog input module for ABB’s Advant Controller 400 (AC400) DCS, engineered to process critical process variables in demanding industrial environments. Designed for reliability in power generation, chemical processing, and heavy manufacturing, this module converts field signals from transmitters (4–20 mA, 0–10 V DC) and RTD sensors into digital data with exceptional accuracy (±0.1% of span). The 216EA61b features galvanic isolation (channel-to-channel and channel-to-backplane) to eliminate ground loops and ensure signal integrity in electrically noisy settings. Integrated diagnostics monitor open-wire conditions, overrange events, and module health, while hot-swap capability allows maintenance without system shutdown. As part of ABB’s legacy AC400 platform, it interfaces seamlessly with Master Piece 200/300 software for configuration and real-time data visualization, supporting SIL 2 safety applications when used in redundant configurations.

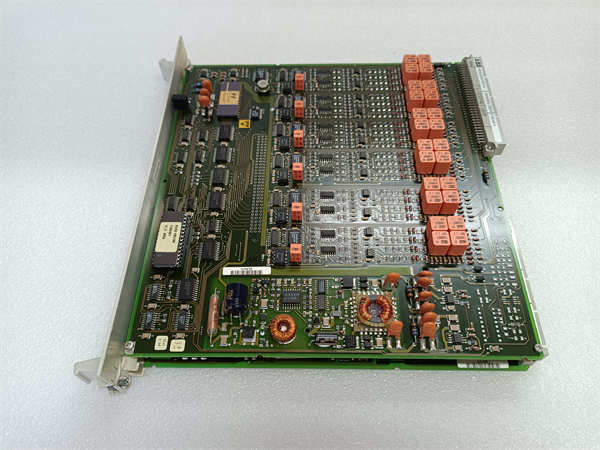

ABB 216EA61b

Technical Specifications

Main Features and Advantages

Multi-signal flexibility: Each channel of the ABB 216EA61b independently configures for current, voltage, or RTD inputs via software – eliminating jumpers or hardware changes. This streamlines integration for hybrid process applications (e.g., temperature + pressure monitoring).

Advanced diagnostics: Continuous monitoring detects broken wires, sensor shorts, and signal saturation. Faults trigger controller alarms and illuminate per-channel LEDs (green/red), enabling rapid troubleshooting.

Noise immunity: Triple-shielded isolation and integrated EMI filters reject interference from VFDs, motors, and switching power supplies, ensuring stable readings in substations or furnace control panels.

Safety compliance: SIL 2 certification allows deployment in safety instrumented systems (SIS) for critical functions like reactor temperature monitoring or turbine overspeed protection.

Application Field

The ABB 216EA61b excels in processes requiring high-fidelity analog monitoring:

Power Generation: Boiler drum level (4–20 mA dp cells), turbine bearing temperatures (RTD), generator hydrogen purity (voltage signals).

Chemical Plants: Reactor pressure/temperature loops, batch dosing control, corrosion monitoring.

Water Treatment: Filter differential pressure, pH/ORP electrode signals, sludge temperature profiles.

Oil & Gas: Pipeline pressure transmitters, separator interface levels, compressor discharge temperatures.

HVAC: Chilled water flow rates, steam valve position feedback.

Related Products

ABB 216AB61: 16-channel digital input module (complements 216EA61b for hybrid control)

ABB 216MB61: Analog output module (closes control loops with 216EA61b)

ABB 216TB61: 24V DC power supply for AC400 racks

ABB S800 AI810: Modern 8-channel analog input successor (compatible via migration kits)

ABB CI871: Ethernet/IP gateway (bridges AC400 to modern networks)

ABB CPT600: Signal conditioner (pre-processes field signals for 216EA61b)

ABB 216EA61b

Installation and Maintenance

Pre-installation preparation: Verify AC400 rack slot compatibility (200/300-series bases). Use shielded twisted-pair cables grounded at one end for analog signals. For RTDs, employ 3-wire configuration to compensate lead resistance. Ensure ambient temperature stays within -25°C to +70°C.

Maintenance recommendations: Perform annual calibration checks using certified reference sources. Clean terminal blocks with contact cleaner to prevent oxidation. Monitor “Module OK” LED; persistent red indicates AF100 bus faults. Replace only during planned outages using ABB’s hot-swap procedure. Update firmware via Master Piece software to access enhanced diagnostics.
