Description

The ABB 216VC62a is a high-performance Profibus DP-V1 slave communication module for ABB’s Advant Controller 400 (AC400) DCS, enabling seamless integration of legacy control systems with modern industrial networks. Designed as a critical interoperability gateway, this module bridges AC400 racks to Profibus DP master devices (e.g., Siemens PLCs, SCADA systems) while supporting cyclic data exchange up to 12 Mbps. The 216VC62a features dual-redundant Profibus ports with automatic bus termination and optical isolation (1500V AC), ensuring noise-immune communication in electrically harsh environments like substations or steel mills. Its onboard microcontroller handles protocol conversion autonomously, offloading processing from AC400 CPUs and supporting up to 244 bytes of input/output data per node.

As a key component in hybrid automation architectures, the ABB 216VC62a allows real-time exchange of process variables, alarms, and diagnostics between AC400 controllers and third-party systems. The module supports Profibus DP-V1 enhancements including acyclic data access for parameterization and alarm reporting, enabling predictive maintenance integration. Hot-swappable design minimizes downtime during upgrades, while ABB’s dedicated GSD file (General Station Description) ensures plug-and-play configuration in engineering tools like TIA Portal or PCS .

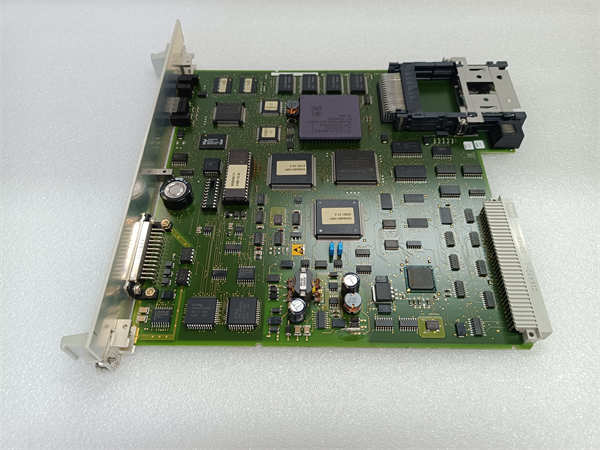

ABB 216VC62a

Technical Specifications

Main Features and Advantages

Hybrid system integration: The ABB 216VC62a enables AC400 systems to function as intelligent Profibus slaves, exchanging data with Siemens S7 PLCs, DCS nodes, or HMI stations without costly controller replacements. Supports 32 devices per segment via dual ports.

Advanced diagnostics: Real-time monitoring of bus load, station status, and telegram errors via AF100 backplane. Module LEDs and Profibus master diagnostics pinpoint faults (e.g., cable breaks, slave timeouts).

Demand-driven data handling: Profibus DP-V1 functionality allows acyclic access for calibration parameters or device-specific diagnostics – critical for integrating legacy instruments into modern IIoT frameworks.

Robust connectivity: Integrated surge protection (IEC 61000-4-5) and automatic baud rate detection withstand voltage spikes in switching plants. Redundant ports enable daisy-chained topologies without external repeaters.

Application Field

The ABB 216VC62a unlocks legacy AC400 data in multi-vendor environments:

Power Generation: Integrates turbine control (AC400) with plant-wide Siemens PCS7 SCADA for unified performance monitoring.

Manufacturing: Connects AC400-based production lines to Profibus-enabled robotic cells (KUKA/ABB robots) for synchronized assembly.

Water Treatment: Bridges chemical dosing controllers (AC400) to regional Siemens WinCC supervision centers.

Oil & Gas: Interfaces wellhead safety systems with central Emerson DeltaV via Profibus PA linking devices.

Legacy Modernization: Acts as migration path for AC400-to-S800 transitions by enabling parallel operation during cutovers.

Related Products

ABB CI867: Profinet IO Controller module (modern successor to 216VC62a)

ABB SD822: Redundant Profibus DP master module (for AC400 as master systems)

ABB COMZ: AF100 communication module (redundant backplane backbone)

ABB 216TB61: 24V DC power supply (for AC400 rack)

ABB S800 PB801: Profibus DP interface (for newer S800 I/O systems)

Siemens CP 443-5: Profibus master module (typical counterpart device)

ABB DSDI130: Diagnostic tool (tests Profibus segment integrity)

ABB 216VC62a

Installation and Maintenance

Pre-installation preparation: Verify AC400 rack slot compatibility (requires AF100-capable base). Set unique Profibus node address via rotary switches (1-126). Install ABB’s GSD file in master configuration tool. Use shielded PROFIBUS cable (Type A) with 90Ω impedance; ground shield at one end only.

Maintenance recommendations: Monitor “Bus Error” LED for consistent faults (indicates cable/terminator issues). Quarterly clean D-Sub connectors with electronic contact cleaner. Verify firmware version compatibility with Profibus master (update via Master Piece if required). Maintain spare 216VC62a modules with pre-configured node addresses for rapid replacement.
