Description

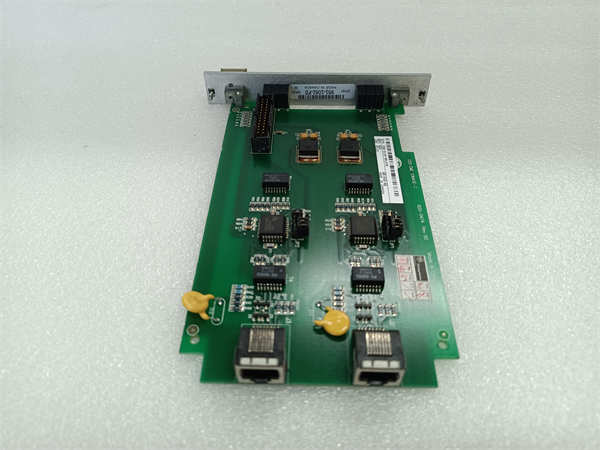

The GE D20 EME is a high-reliability I/O communication module from GE’s legacy D20 Controller series, designed for critical data acquisition and control in industrial automation environments. Serving as an Ethernet interface module, it bridges GE’s D20 Distributed Processing Units (DPUs) with modern supervisory systems using 10BASE-T connectivity. The GE D20 EME enables real-time data exchange between D20 controllers and SCADA/HMI systems via Modbus TCP, extending the lifecycle of existing D20 installations while supporting migration to contemporary networks.

Engineered for harsh environments, this module operates flawlessly in temperatures ranging from -40°C to +85°C, making it ideal for power substations, water/wastewater facilities, and remote oilfield applications where legacy systems require Ethernet modernization. The GE D20 EME features dual RJ45 ports for daisy-chaining devices without additional switches, reducing network complexity. Its non-volatile memory retains configuration during power loss, while LED status indicators provide instant diagnostics for rapid troubleshooting in mission-critical operations.

GE D20 EME

Technical Specifications

Main Features and Advantages

Robust Connectivity: The GE D20 EME provides deterministic Modbus TCP communication with<2ms>

Extreme Environment Operation: Engineered for industrial resilience, the GE D20 EME maintains full functionality across Arctic-to-desert temperature ranges without derating. Conformal-coated PCBs resist humidity, dust, and chemical corrosion (per ISA-71.04 Class G3). Shock/vibration tolerance (5g @ 10-150Hz) ensures reliability in mobile or seismic-prone installations.

Legacy System Integration: Unique protocol conversion capabilities allow seamless data mapping between D20 DPUs and modern PLCs/SCADA. The module’s non-volatile memory stores configuration independently, enabling plug-and-play replacement. Built-in diagnostics monitor packet integrity, voltage fluctuations, and thermal conditions.

Application Field

In electrical substations, the GE D20 EME modernizes legacy protection relays by streaming real-time fault records via Modbus TCP to central load dispatch centers, enabling rapid grid recovery. Water treatment plants utilize it to integrate aging D20-based chemical dosing systems with modern HMIs, maintaining precise pH control while avoiding full system replacement.

For offshore platforms, the module’s -40°C cold-start capability ensures reliable communication between wellhead safety systems and central control rooms. Mining operations deploy the GE D20 EME in conveyor control networks, where its vibration resistance prevents disconnections in crushing facilities. Pipeline SCADA systems leverage its dual-port design to create fault-tolerant Ethernet rings spanning remote compressor stations.

GE D20 EME

Related Products

GE D20 CPU: Main processor module for D20 controllers

GE IC693CMM321: Serial communication module for D20

GE D20 EME-F: Fiber-optic variant for EMI-heavy environments

GE D20 RIO: Remote I/O scanner for distributed systems

GE RX3i IC695ETM001: Modern Ethernet module for migration

GE VersaMax IC200ENI001: Compact Ethernet interface

GE D20 PSU: Redundant power supply unit

Installation and Maintenance

Pre-installation preparation: Verify DC power source stability (±10% tolerance) and ensure proper grounding (<1>GE D20 EME.

Maintenance recommendations: Monitor communication LEDs quarterly – amber status indicates packet errors requiring cable inspection. Clean air vents annually using low-pressure air (<15>GE D20 EME, maintain configuration backups on SD cards; replace electrolytic capacitors after 80,000 operational hours. Update firmware only during planned downtime using GE’s Proficy Machine Edition software.
