Description

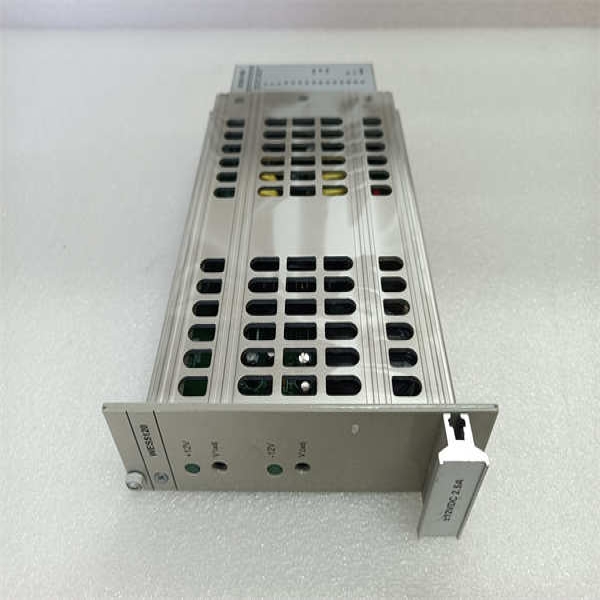

The GE WES5120 5120-1106 is a high-performance multi-parameter water quality monitoring controller from GE’s Water & Environmental Solutions (WES) platform, designed as the central brain for complex analytical systems. This advanced unit integrates inputs from up to 8 sensors (conductivity, pH, ORP, dissolved oxygen, turbidity, etc.), enabling comprehensive water management in critical industrial processes. The GE WES5120 5120-1106 processes real-time data with dual-processor architecture, executing control algorithms for chemical dosing, blowdown control, or purification system automation while providing extensive diagnostics. Its modular design supports flexible configurations for power plants, semiconductor fabs, and wastewater facilities, featuring a high-visibility LCD and intuitive menu navigation for onsite operations.

Engineered for 24/7 reliability, the GE WES5120 5120-1106 offers dual-channel communication (Modbus RTU/TCP, Ethernet/IP) for seamless DCS/SCADA integration and remote access. The “-1106” suffix denotes specific I/O capabilities, including 4-20mA inputs for external instruments and relay outputs for alarm/control actions. With its NEMA 4X/IP66-rated stainless steel enclosure, the controller withstands corrosive environments and temperature extremes. The GE WES5120 5120-1106 reduces operational complexity by centralizing calibration management, data logging, and compliance reporting – making it a cornerstone for automated water quality assurance.

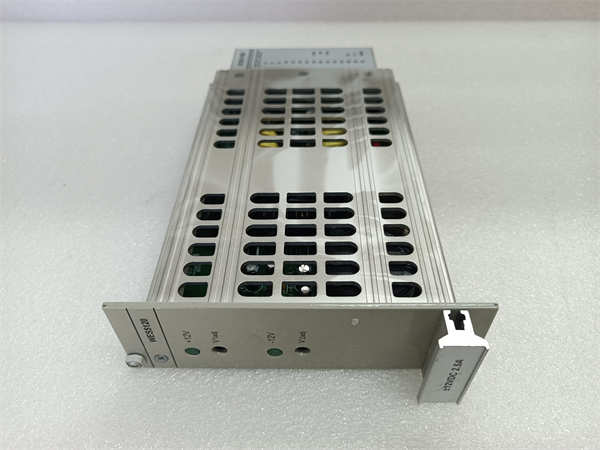

GE WES5120 5120-1106

Technical Specifications

Main Features and Advantages

Centralized Multi-Parameter Control: The GE WES5120 5120-1106 eliminates standalone transmitters by consolidating up to 8 sensor inputs into one robust controller. Its dual-processor design separates measurement processing from control logic execution, ensuring precise PID control for chemical feed pumps or valve actuators even during data-intensive tasks. The system auto-detects GE Smart Sensors, streamlining commissioning and calibration.

Advanced Diagnostics and Compliance: Real-time health monitoring of connected sensors (e.g., electrode impedance, cable integrity) enables predictive maintenance. The controller generates audit trails for 21 CFR Part 11 compliance, storing 50,000 time-stamped records of measurements, calibrations, and alarm events. Password-protected access tiers prevent unauthorized configuration changes.

Robust Connectivity: With dual industrial Ethernet ports and Modbus support, the GE WES5120 5120-1106 interfaces seamlessly with PLCs (Allen-Bradley, Siemens) and SCADA systems. Its web server capability allows remote visualization via standard browsers, reducing onsite inspections. The stainless steel enclosure and conformally coated electronics ensure reliability in humid, chemically exposed, or washdown environments – critical for pharmaceutical or offshore applications. Backward compatibility with legacy GE sensors protects existing investments while enabling future expansion.

Application Field

The GE WES5120 5120-1106 excels in industries requiring centralized water quality management and regulatory compliance. In power generation, it monitors boiler feedwater, cooling tower blowdown, and wastewater discharge – controlling phosphate/amine dosing to prevent corrosion and optimizing cycles of concentration. Semiconductor fabs deploy it for UPW (Ultra-Pure Water) loop management, integrating resistivity, TOC, and particle counters to maintain sub-ppb purity at tool points-of-use.

Municipal wastewater plants utilize the GE WES5120 5120-1106 for influent/effluent monitoring, coordinating pH adjustment, chlorination, and turbidity compliance across process stages. In food & beverage production, it automates CIP (Clean-in-Place) rinse water conductivity checks and beverage blending quality control. Offshore platforms rely on its ATEX-rated versions for produced water treatment and ballast water management system (BWMS) compliance reporting. The controller’s data logging capability is indispensable for environmental permit documentation across all sectors.

Related Products

GE WES13-3 Conductivity Module: Sensor-specific module compatible with WES5120 for ultrapure water monitoring.

GE SE 600 Smart pH/ORP Sensor: Digital probe with automatic temperature compensation for direct WES5120 integration.

GE WESDOME-3 Controller: Predecessor model with reduced I/O capacity, often upgraded to WES5120 5120-1106.

GE WESLAN Network Gateway: Extends WES5120 data to plant-wide LAN/WAN systems.

Emerson 1056 Water Analyzer: Post-acquisition successor platform with enhanced cybersecurity.

GE WES5000 Calibration Station: Automated calibration tool for sensors connected to WES5120.

GE WESRelay Expansion Module: Adds 8 relay outputs for complex control scenarios.

GE S800 Smart Chlorine Sensor: Amperometric sensor for disinfection monitoring via WES5120.

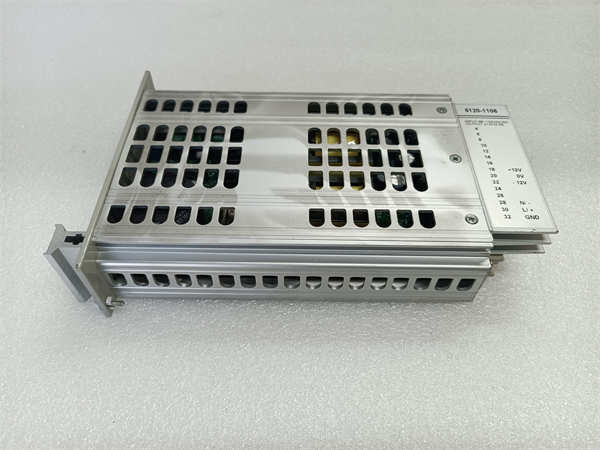

GE WES5120 5120-1106

Installation and Maintenance

Pre-installation preparation: Verify mounting surface stability and ambient temperature compliance. Ensure conduit entries comply with NEMA 4X sealing requirements. Separate high-power cables from sensor leads (>15cm spacing). Pre-load configuration software (GE iService Tools) for initial setup. Confirm sensor compatibility and prepare calibration solutions. Allocate IP addresses for network integration if using Ethernet.

Maintenance recommendations: Perform quarterly touchscreen calibration and backup configuration files monthly. Clean air vents annually to prevent dust accumulation. Test relay operations semi-annually under simulated alarm conditions. Replace internal backup battery every 3 years to preserve logs. Validate sensor calibrations per process criticality (e.g., monthly for USP water systems). Monitor communication diagnostics for signal integrity issues. For firmware updates, disconnect control outputs and follow GE’s step-by-step guides.
