Description

The GE WES5162-9101 is an ultra-reliable, high-availability water quality controller engineered for mission-critical applications requiring zero-downtime operation. As the flagship model in GE’s WES5000 series, this dual-redundant system integrates 24 sensor channels for comprehensive monitoring (pH, ORP, conductivity, dissolved oxygen, turbidity, TOC, etc.) while executing synchronized control loops across geographically separated equipment. The GE WES5162-9101 features hot-swappable power supplies and processors with automatic failover (<100ms>

Unlike standard controllers, the GE WES5162-9101 employs deterministic Ethernet (IEC 61850-3) for time-synchronized data acquisition across distributed nodes, enabling plant-wide water balance calculations and predictive scaling algorithms. The “-9101” suffix denotes integrated cybersecurity compliant with ISA/IEC 62443 Level 3, featuring hardware-trusted platform modules (TPM) for encrypted communications (OPC UA PubSub) and firmware integrity verification. The GE WES5162-9101 reduces lifecycle costs through AI-driven sensor health forecasting and automated calibration validation, while its modular architecture supports field upgrades to future Emerson platforms.

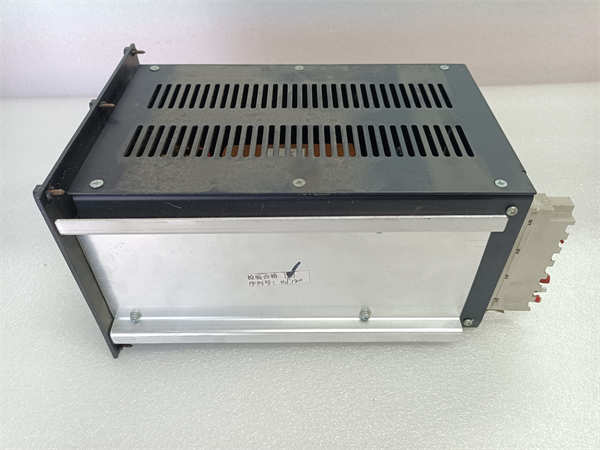

GE WES5162-9101

Technical Specifications

Main Features and Advantages

Continuous Operation Architecture: The GE WES5162-9101 delivers >99.999% uptime through redundant subsystems with bumpless transfer. Critical components (CPUs, PSUs, network interfaces) feature front-access hot-swap design, enabling maintenance without process interruption. Dual watchdogs monitor application execution, triggering automatic failover during software faults.

Deterministic Performance: Precision time protocol (PTP) synchronization enables coordinated control across multiple WES5162-9101 units up to 10km apart, essential for multi-plant water networks. Each I/O scan completes within 50ms, with time-stamped data for regulatory compliance.

Industrial Cybersecurity: Hardware-based secure boot and runtime intrusion detection prevent malicious firmware modification. Communication channels use AES-256-GCM encryption with automatic key rotation. Role-based access integrates with Active Directory/LDAP for enterprise-scale deployment.

Predictive Analytics: Embedded machine learning models analyze sensor degradation patterns, forecasting calibration needs with 95% accuracy. Automated validation sequences perform NIST-traceable checks without manual intervention.

Migration Flexibility: Compatibility modules enable direct use of legacy GE sensors (SE 100/800 series), while containerized software architecture supports Docker-based application upgrades.

Application Field

The GE WES5162-9101 dominates industries where water system failures risk catastrophic financial or safety consequences:

Nuclear Power: Primary coolant loop monitoring with NRC-compliant data integrity, coordinating boron concentration control across redundant trains.

Semiconductor Mega-Fabs: UPW (Ultra-Pure Water) management at >30,000 wafers/hour, detecting ppb-level contaminants while synchronizing polishing loop regeneration.

Pharma Bio-Reactors: GMP-compliant WFI (Water-for-Injection) control with 21 CFR Part 11 electronic records, ensuring continuous bioprocess sterilization.

Desalination Plants: High-pressure RO membrane protection via coordinated pressure/conductivity monitoring across 20km pipeline networks.

Mining Operations: Real-time cyanide destruction verification with SIL 2-rated emergency neutralization controls.

Related Products

GE WES-RM-1000 Redundancy Manager: Extends WES5162-9101 redundancy to third-party PLCs.

Emerson 5162S High-Availability Controller: Post-acquisition enhanced version with SIL 3 support.

GE FOS-24 Fiber Optic Splitter: Enables long-distance I/O expansion for WES5162-9101.

GE WES5160-7100 Controller: Base model without redundancy for non-critical processes.

GE SD-700 Secure Data Diode: Enforces one-way data flow from WES5162-9101 to cloud.

GE WES-CAL Validation Station: Automated calibration tool for 24-channel systems.

GE TOC-2600Ex Analyzer: Hazardous-area TOC sensor for integration with WES5162-9101.

GE WES5162-9101

Installation and Maintenance

Pre-installation preparation: Verify seismic mounting compliance using GE-supplied brackets. Pre-test fiber-optic terminations with OTDR. Initialize secure enclaves using factory-provided HSM (Hardware Security Module). Validate PTP grandmaster clock synchronization before commissioning.

Maintenance recommendations: Perform annual failover tests under simulated fault conditions. Replace air filters quarterly in dusty environments. Validate cryptographic keys biannually using GE Key Manager. Conduct full cybersecurity audit every 24 months per ISA 62443. Rotate hot-spare modules quarterly to prevent capacitor aging.
