Description

The GE WES5302-150 is a critical safety relay module engineered for high-integrity emergency shutdown (ESD) and fire & gas (F&G) systems within hazardous industrial environments. As part of GE’s Wellhead Equipment Safety (WES) product line, this robust module provides fail-safe isolation and switching capabilities for critical safety instrumented functions (SIFs). The WES5302-150 integrates seamlessly with GE Mark VIe safety controllers, enabling reliable de-energization of actuators or valves during process deviations. Its design emphasizes SIL 2/SIL 3 compliance (IEC 61508) and features dual-channel redundancy, fault diagnostics, and galvanic isolation to prevent spurious trips while ensuring operational continuity. The module’s 150V DC rating makes it ideal for high-voltage applications in oil & gas wellheads, pipelines, and refining units. With ATEX/IECEx certifications for explosive atmospheres, the GE WES5302-150 delivers uncompromising protection for personnel, assets, and the environment. Its hardened construction withstands extreme temperatures (-40°C to +85°C) and vibration, cementing the GE WES5302-150 as a cornerstone of modern functional safety architectures.

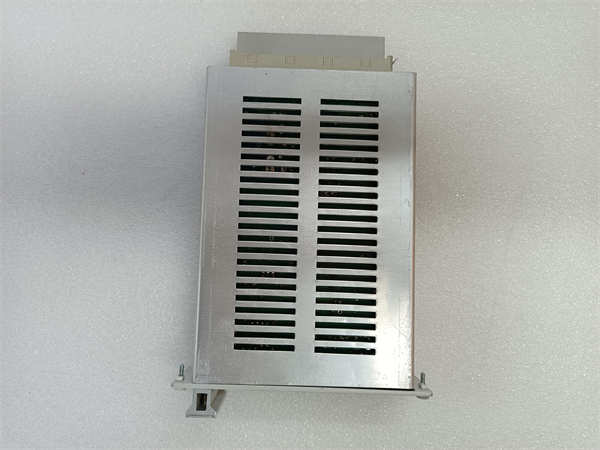

GE WES5302-150

Technical Specifications

Main Features and Advantages

Intrinsic Safety Design: The GE WES5302-150 incorporates galvanic isolation and redundant contact technology, eliminating single-point failures and preventing false trips in volatile environments. Its ATEX/IECEx certification ensures safe operation in Zone 1/Division 1 hazardous areas.
High Diagnostic Coverage: Advanced self-monitoring circuits detect contact welding, coil failures, and internal faults, providing >90% diagnostic coverage to meet SIL 3 requirements. Status LEDs offer real-time health visibility.
Extreme Environment Resilience: Engineered with stainless-steel housing and IP67 sealing, the WES5302-150 resists corrosion, moisture, dust, and mechanical stress. Its wide temperature range (-40°C to +85°C) suits Arctic drilling or desert installations.
Seamless Integration: Designed for GE’s Mark VIe platform, the module supports quick-connect terminals and DIN rail mounting, reducing commissioning time. Backplane isolation prevents ground loops in complex safety loops.
Regulatory Compliance: Full traceability to IEC 61508/61511 and FMEDA reports simplify SIL validation, accelerating safety lifecycle management for the GE WES5302-150.

Application Field

The GE WES5302-150 is indispensable in high-risk industries requiring fail-safe control. In upstream oil & gas, it secures wellhead blowout preventers (BOPs), shutting down flows during overpressure or gas leaks. Pipeline operators deploy the WES5302-150 for emergency valve isolation at pumping stations to prevent spills. Refineries leverage its SIL 3 capability for furnace flameout protection and compressor surge control. Petrochemical plants integrate the module into burner management systems (BMS) to halt fuel supply during flame failure. Offshore platforms rely on the WES5302-150 for fire & gas ESD loops, triggering deluge systems upon hydrocarbon detection. Power generation facilities use it for turbine overspeed protection. The module’s ruggedness also extends to mining ventilation shutdowns and LNG terminal custody transfer safety.

Related Products

WES5302-110: 110V DC variant of the same safety relay module.

WES5100-001: Safety power supply for WES series modules.

IC693PWR321: Redundant power module for GE VersaMax controllers.

IS420ESWBH3A: Mark VIe safety controller for integrated SIF execution.

DS200DCFBG1B: Diagnostic communication board for WES system monitoring.

WES5310-150: Dual-channel safety relay with timer functionality.

IC697PWR711: 120V AC/DC power supply for legacy GE safety systems.

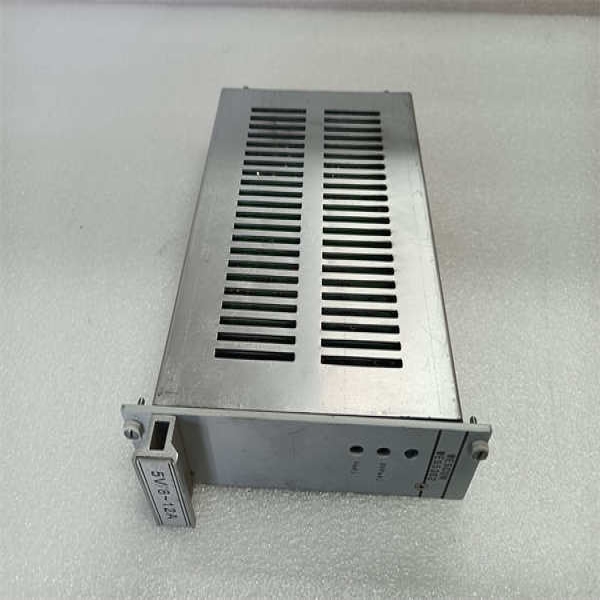

GE WES5302-150

Installation and Maintenance

Pre-installation preparation: Verify environmental compliance (temperature, hazardous area certification) and ensure proper grounding per GE guidelines. Inspect the WES5302-150 for shipping damage and confirm DIN rail clearance. Use shielded cables for signal wiring with separation from AC power lines (>200mm).
Maintenance recommendations: Perform quarterly functional tests via forced diagnostics. Annually check terminal tightness and contact resistance using calibrated tools. Monitor LED status indicators during operation; replace the module if fault LEDs persist after reset. Maintain spares for critical loops to minimize downtime.
