Description

The GE WESCOM D200 VME is a high-availability communication processor module designed for GE’s legacy Mark IV and Mark V turbine control systems, serving as the backbone for real-time data exchange in mission-critical power generation applications. Operating within VMEbus (VITA 1.1) architectures, this robust module facilitates deterministic communication between turbine controllers, I/O subsystems, and operator interfaces via proprietary protocols like RM3 and CCM2. The WESCOM D200 VME integrates dual-redundant Ethernet ports (10Base-T) and serial interfaces to synchronize control logic across distributed nodes while maintaining sub-millisecond latency. Its industrial-grade design features error-correcting memory, watchdog timers, and hot-swap capability – ensuring continuous operation during grid disturbances or maintenance. As a cornerstone of GE’s “Speedtronic” turbine management ecosystem, the WESCOM D200 VME delivers 99.999% uptime for combined-cycle plants, hydroelectric facilities, and industrial cogeneration sites. Engineers leverage this module for its backward compatibility with GE’s DS200 I/O cards and seamless integration with HMI systems like CIMPLICITY.

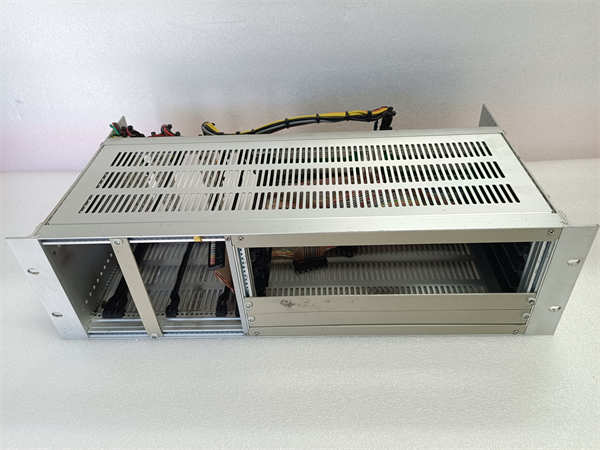

GE WESCOM D200 VME

Technical Specifications

Main Features and Advantages

Deterministic Data Exchange: The WESCOM D200 VME employs GE’s RM3 protocol for time-synchronized communication across 128 nodes, enabling precise turbine control loop execution with<1ms>Fault-Tolerant Architecture: Dual hot-swappable modules operate in active/standby mode with automatic failover. Watchdog circuits and ECC memory prevent data corruption during voltage transients.
Legacy System Integration: Direct compatibility with GE’s Mark IV/V control cards (e.g., DS200 series) and workstation software (CIMPLICITY) eliminates protocol conversion delays.
Rugged Industrial Design: Conformal-coated PCB withstands humidity, dust, and vibration in turbine halls. Wide operating temperature range (-25°C to +70°C) ensures reliability in peaking plants.
Diagnostics Capabilities: Front-panel LEDs provide real-time status for CPU load, network traffic, and failover events. Built-in diagnostics detect >95% of potential failures before impacting operations.

Application Field

The WESCOM D200 VME excels in power generation and heavy industrial control. In gas turbine plants, it orchestrates fuel/air ratio control by synchronizing Mark V controllers with exciter systems. Hydroelectric facilities use it to coordinate governor logic across multiple units for grid frequency stabilization. For combined-cycle plants, the module integrates HRSG pressure control with steam turbine sequencing. Industrial applications include compressor station load-sharing in pipelines and rolling mill torque coordination in steel plants. The WESCOM D200 VME is also deployed in marine propulsion control and district heating systems where deterministic communication is critical.

Related Products

D200P: Primary processor module for Mark V systems with enhanced memory.

DS200DCFBG1B: VME backplane interface card for I/O expansion.

IS200ERAH1A: Redundant Ethernet module for Mark VIe systems.

IC660BBA101: Legacy VME I/O communication interface.

CIMPLICITY HMI: GE’s supervisory control software for turbine visualization.

VME-7750: Ruggedized VME chassis for harsh environments.

DS200TCEAG1A: Terminal control card compatible with D200 networks.

GE WESCOM D200 VME

Installation and Maintenance

Pre-installation preparation: Verify VME backplane compatibility (J1/J2 connectors) and ensure chassis grounding<1>WESCOM D200 VME pairs. Prepare static-safe workspace and GE-approved extraction tool.
Maintenance recommendations: Monitor front-panel STATUS LED (green=normal, amber=fault). Annually clean card-edge connectors with isopropyl alcohol and inspect for corrosion. Replace cooling fans every 5 years. Maintain firmware revisions per GE Technical Information Letter (TIL) updates.
