Description

The National Instruments SCXI-1000 is a rugged 4-slot chassis designed for high-channel-count signal conditioning in demanding industrial and laboratory environments. As the foundational component of NI’s legacy SCXI (Signal Conditioning eXtensions for Instrumentation) modular system, this enclosure provides power, cooling, and communication infrastructure for SCXI modules that amplify, isolate, filter, and multiplex sensor signals before digitization. The SCXI-1000 interfaces seamlessly with NI DAQ devices (e.g., PCI-6036E, PXI-6229) via shielded cables, enabling precise measurements of thermocouples, strain gauges, and high-voltage signals while protecting sensitive instrumentation from electrical noise and ground loops. Its robust steel construction withstands 50g operational shock and features integrated cooling fans for stable performance in -20°C to +55°C environments. Engineers rely on the SCXI-1000 for scalable data acquisition systems in test stands, structural health monitoring, and process validation – delivering laboratory-grade accuracy in industrial settings through NI’s proven signal conditioning technology.

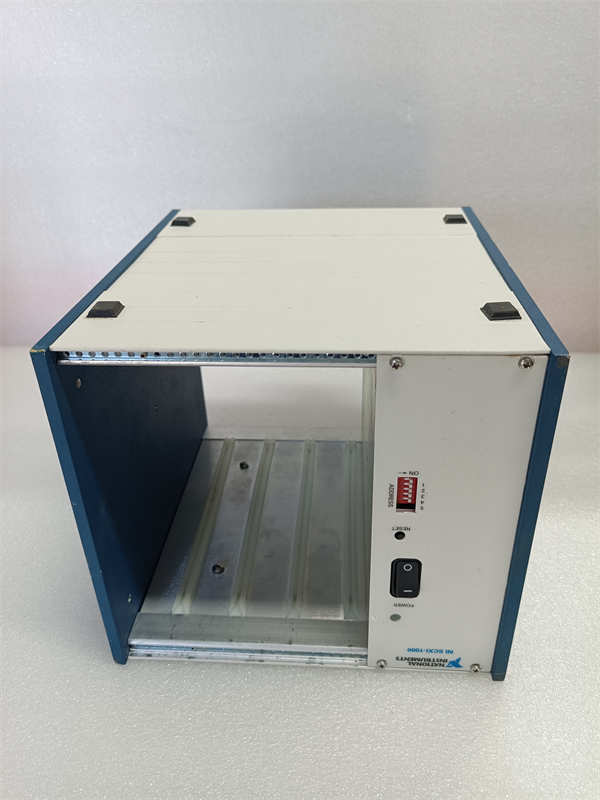

NI SCXI-1000

Technical Specifications

Main Features and Advantages

Modular Signal Conditioning: The SCXI-1000 supports any combination of SCXI modules (amplifiers, multiplexers, filters) in its 4 slots, enabling customized conditioning for thermocouples, RTDs, strain gauges, and ±60V analog signals.
Enhanced Measurement Integrity: Backplane-powered optical isolation (up to 300Vrms) and guarded connections eliminate ground loops, while EMI-shielded design reduces noise in electrically noisy industrial environments.
Seamless DAQ Integration: Direct control of SCXI modules via NI-DAQmx drivers allows synchronized sampling with host DAQ devices. LabVIEW integration enables automated calibration and diagnostics.
Rugged Industrial Design: Reinforced steel housing meets IP50 dust protection standards. Vibration-resistant card retainers and thermal management ensure reliability in manufacturing test cells.
Scalable Architecture: Daisy-chain multiple SCXI-1000 chassis using SCXI-1349 cables for 1,000+ channel systems without signal degradation.

Application Field

The SCXI-1000 excels in high-channel-count measurement scenarios requiring signal integrity. Automotive test labs deploy it for engine dynamometer strain gauge measurements and EV battery pack thermal monitoring. Aerospace facilities use it for structural stress testing with 350+ strain gauge channels. In energy, it conditions turbine vibration sensor arrays and solar farm RTD networks. Manufacturing leverages the SCXI-1000 for production line end-of-line tests – verifying appliance motor currents and industrial robot joint pressures. Research institutions utilize it for seismic monitoring arrays and material fatigue studies. Its isolation capabilities make it ideal for medical device HV leakage testing and semiconductor equipment electrostatic discharge monitoring.

Related Products

SCXI-1001: 12-slot chassis for large-scale systems.

SCXI-1121: 32-channel differential voltage input module.

SCXI-1102: 32-channel multiplexer for thermocouples/RTDs.

SCXI-1520: Universal strain gauge measurement module.

SCXI-1349: Shielded cable assembly for DAQ device connection.

PCI-6229: 32-bit M Series DAQ card for host control.

NI cDAQ-9188: CompactDAQ Ethernet chassis (modern alternative).

Installation and Maintenance

Pre-installation preparation: Verify stable AC power (with 10A breaker) and clear ventilation space (>100mm clearance). Ground chassis via dedicated earth terminal using <1> Maintenance recommendations: Quarterly clean air intake filters with compressed air. Annually verify torque on power terminal screws (0.5 N·m). Monitor fan operation via audible check; replace if abnormal noise occurs. Reseat modules every 24 months to maintain backplane contact integrity.
