Description

The RELIANCE ELECTRIC WR-D4008 is a heavy-duty AC variable frequency drive (VFD) engineered for precision control of three-phase induction motors in demanding industrial environments. Part of Reliance Electric’s established WR series (now under Rockwell Automation), this drive delivers robust performance in pump, fan, and conveyor applications. The RELIANCE ELECTRIC WR-D4008 combines advanced vector control algorithms with user-friendly programming to optimize energy efficiency and process stability. Its modular design supports flexible integration into both new installations and legacy motor control centers (MCCs), featuring auto-tuning capabilities that adapt to motor characteristics without manual intervention. Designed for continuous operation in harsh conditions, the drive incorporates NEMA 1-rated enclosures with conformal-coated circuit boards for humidity resistance. With built-in PID control and dynamic braking, the RELIANCE ELECTRIC WR-D4008 ensures smooth acceleration/deceleration profiles critical for material handling systems while reducing mechanical stress on driven equipment.

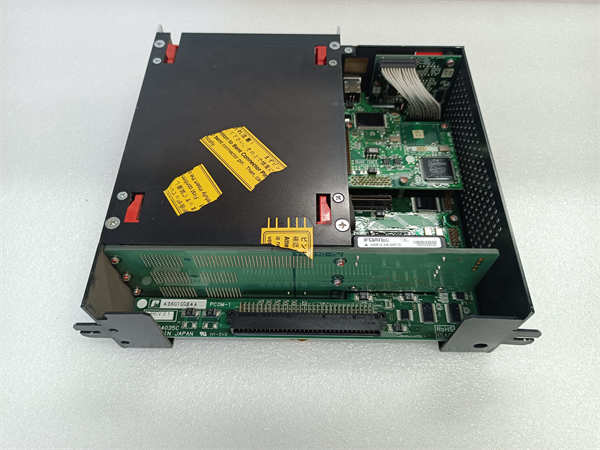

RELIANCE ELECTRIC WR-D4008

Technical Specifications

Main Features and Advantages

Intelligent Motor Control: The RELIANCE ELECTRIC WR-D4008 implements adaptive flux vector technology to maintain ±0.5% speed regulation under variable loads – crucial for centrifugal pumps avoiding cavitation. Its slip compensation automatically adjusts for voltage fluctuations, while built-in electronic thermal overload protection prevents motor burnout.

Energy Optimization: Featuring automatic energy savings mode, the drive reduces power consumption by 25-50% in variable torque applications. The DC choke input suppresses harmonic distortion below 5%, eliminating the need for external filters in most installations.

Operational Resilience: Conformal coating on PCBs enables reliable operation in 95% non-condensing humidity environments. The RELIANCE ELECTRIC WR-D4008 withstands 5g vibration and 50g shock impacts, ideal for mining crushers or vibrating conveyors. Keypad programming stores 10 parameter sets for rapid application switching.

Integration Flexibility: Native Modbus RTU support enables direct PLC communication, while the optional 20-COMM-E Ethernet module integrates with Allen-Bradley Logix platforms. The drive accepts 0-10V/4-20mA analog inputs for process control loops.

Application Field

The RELIANCE ELECTRIC WR-D4008 excels in industrial fluid handling and material transport systems. In water treatment plants, it controls raw water intake pumps with sleep/wake functions to prevent dry running. HVAC installations leverage its PID control to maintain building pressure within ±2 Pa via variable-speed exhaust fans.

For manufacturing, the drive regulates conveyor speeds in automotive assembly lines, synchronizing with Rockwell PowerFlex drives via Modbus. Mining operations deploy the RELIANCE ELECTRIC WR-D4008 on centrifugal blowers for ventilation control, using its flying start feature to restart rotating loads. Food processing facilities benefit from its washdown-ready enclosure options for bottling line conveyors. Crucially, it retrofits seamlessly into existing Reliance Electric Bulldog MCCs without control circuit modifications.

Related Products

WR-D4010: Higher-capacity variant (15 HP)

Reliance Electric 0-54300-2: Dynamic brake resistor kit

Allen-Bradley 20-COMM-E: EtherNet/IP communication module

WR-D4005: Compact 5 HP model

Reliance Electric FlexPak 3000: Multi-drive system

Reliance Electric 57C-FRLN: Compatible induction motor

Rockwell 1305-BA04A: Legacy drive upgrade alternative

RELIANCE ELECTRIC WR-D4008

Installation and Maintenance

Pre-installation preparation: Verify motor nameplate data matches drive rating; perform insulation resistance test (>5MΩ). Install line reactors if supply impedance<1>RELIANCE ELECTRIC WR-D4008 for airflow. Use copper conductors only for power wiring (max 75°C rating).

Maintenance recommendations: Clean air vents quarterly using low-pressure compressed air (<15 annually="" check="" torque="" on="" power="" terminals="" to="" prevent="" overheating.="" monitor="" dc="" bus="" voltage="" deviations="">15V indicate capacitor wear. Before firmware updates, backup parameters via Reliance Electric DriveTools. Always disconnect input power for 10 minutes before servicing – DC bus capacitors require full discharge.<!--15-->
