Description

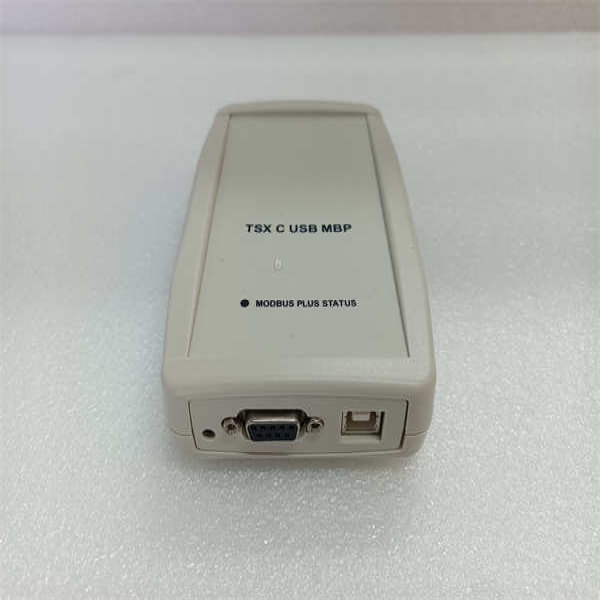

The SCHNEIDER TSXCUSBMBP is a specialized USB communication module designed for seamless integration with Schneider Electric’s Modicon M340 and M580 programmable logic controller (PLC) platforms. Serving as a critical programming and maintenance interface, this adapter enables engineers to connect standard USB ports on laptops or workstations directly to the PLC’s PCMCIA slot, facilitating rapid program uploads/downloads, firmware updates, and real-time diagnostics. Engineered to withstand industrial environments, the TSXCUSBMBP eliminates the need for legacy serial cables and ensures reliable data transfer speeds up to 12 Mbps. Its plug-and-play functionality simplifies commissioning and troubleshooting workflows while maintaining compatibility with Schneider’s Unity Pro software suite.

As a cornerstone of Schneider’s connectivity ecosystem, this module enhances operational efficiency by enabling offline configuration and backup of PLC logic without disrupting live processes. The SCHNEIDER TSXCUSBMBP features robust EMC shielding and a durable housing resistant to vibration (2g @ 15–150 Hz) and electrical noise, making it indispensable for high-interference settings like motor control centers or switchgear rooms. By bridging modern USB interfaces with Schneider’s industrial control architecture, it extends the lifecycle of existing installations and streamlines migration projects. Its driver-free operation reduces IT overhead, while LED status indicators provide instant visual confirmation of communication integrity.

Technical Specifications

Main Features and Advantages

Plug-and-Play Simplicity: The SCHNEIDER TSXCUSBMBP requires no external drivers or configuration software, enabling instant connectivity upon insertion. Technicians can deploy it within seconds to access PLCs via Unity Pro, minimizing commissioning delays during plant startups or line conversions.

Robust Industrial Design: Encased in reinforced polycarbonate with IP20-rated protection, this adapter withstands dust, humidity (up to 95% non-condensing), and mechanical stress common in cabinet-free installations. Gold-plated USB/PCMCIA connectors ensure corrosion-resistant, high-fidelity signal transmission even after 10,000+ mating cycles.

Enhanced Security and Diagnostics: Built-in protocol encryption safeguards against unauthorized access during program transfers. Dual-color LEDs provide real-time status: green for active USB link, red for communication errors. This allows immediate fault isolation in critical scenarios like batch process interruptions.

Backward Compatibility: Unlike generic USB adapters, the TSXCUSBMBP guarantees seamless operation with legacy PCMCIA memory cards (e.g., TSXMRPP128K) and older M340 firmware revisions. It also supports firmware recovery modes for bricked CPUs, reducing replacement costs.

Optimized Data Throughput: Engineered USB controllers prevent data collisions during multi-tasking operations, enabling simultaneous program edits and HMI data logging without latency – crucial for high-speed packaging or robotic assembly applications.

Application Field

The SCHNEIDER TSXCUSBMBP is deployed across industries requiring secure, rapid PLC access. In manufacturing, it programs robotic workcells (e.g., automotive welding lines) and configures high-speed bottling machines without halting production. For water treatment plants, technicians use the module to update control logic in remote pump stations using ruggedized field laptops, leveraging its humidity resistance.

Energy sector applications include configuring turbine protection systems in power generation facilities and maintaining SCADA communication gateways in substations. The TSXCUSBMBP’s EMC immunity ensures reliable operation near VFDs and switchyards. In pharmaceutical cleanrooms, its non-shedding design complies with GMP standards for sterile environments, enabling aseptic process adjustments during vaccine production.

Discrete manufacturers utilize this adapter for cloning machine settings across global facilities – transferring programs via USB drives to identical M340 PLCs in electronics assembly lines. Mining operations benefit from its vibration tolerance during dragline controller updates, while food processing plants leverage it for quick recipe changes in batch ovens.

Related Products

TSXMRPP128K – PCMCIA memory card for TSXCUSBMBP-backed program storage.

BMXP341000 – Modicon M340 CPU requiring the TSXCUSBMBP for USB connectivity.

BMXNOE0100 – Ethernet communication module complementing USB access.

TSXPCX3030-C – Redundant power supply for M340 racks hosting TSXCUSBMBP.

BMXXBP0400 – 4-slot rack for compact M340 installations.

BMXEXT1000 – Rack extension cable for distributed modules.

140NOE77101 – Network module for M580 PLCs compatible with TSXCUSBMBP.

USB-RS485-LINK – Alternative USB-serial adapter for legacy devices.

Installation and Maintenance

Pre-installation preparation: Power down the PLC rack before inserting the TSXCUSBMBP into any available PCMCIA slot. Ensure Unity Pro software is updated to V11+ for full compatibility. Verify USB cable integrity (max 3m length recommended) and avoid daisy-chaining hubs.

Maintenance recommendations: Inspect connectors quarterly for bent pins or oxidation; clean with isopropyl alcohol if contaminated. Avoid hot-swapping during active program transfers to prevent data corruption. Store in anti-static bags when unused. Replace units exhibiting intermittent connectivity or persistent LED errors. Firmware updates for the TSXCUSBMBP are deployed via Unity Pro and should be applied during scheduled downtime.
