Description

The WESTINGHOUSE 5X00121G01 is a heavy-duty 32-channel relay output module designed for Emerson’s Ovation DCS, engineered to control high-voltage AC/DC loads in critical industrial environments. Originally developed by Westinghouse and now integrated into Emerson’s Ovation ecosystem, this module drives motors, solenoids, and lighting systems up to 240V AC with exceptional electrical isolation and arc suppression. Featuring electromechanical Form-C relays (SPDT contacts), the 5X00121G01 combines switching versatility with robust fault tolerance – supporting both dry and wet contacts for diverse load types. Its seismic-rated construction (-40°C to 70°C operating range) ensures reliability in nuclear power plants, offshore platforms, and mining operations where vibration and extreme temperatures challenge conventional modules.

Designed for mission-critical safety systems, the module provides per-channel contact health monitoring and integrates with Ovation controllers for predictive maintenance analytics. The WESTINGHOUSE 5X00121G01 offers configurable fail-safe states (energized/de-energized) during system faults and features hot-swappability for zero-downtime maintenance. Arc-quenching circuits extend relay life to >100,000 operations at full load, while redundant backplane communication maintains control during power transients.

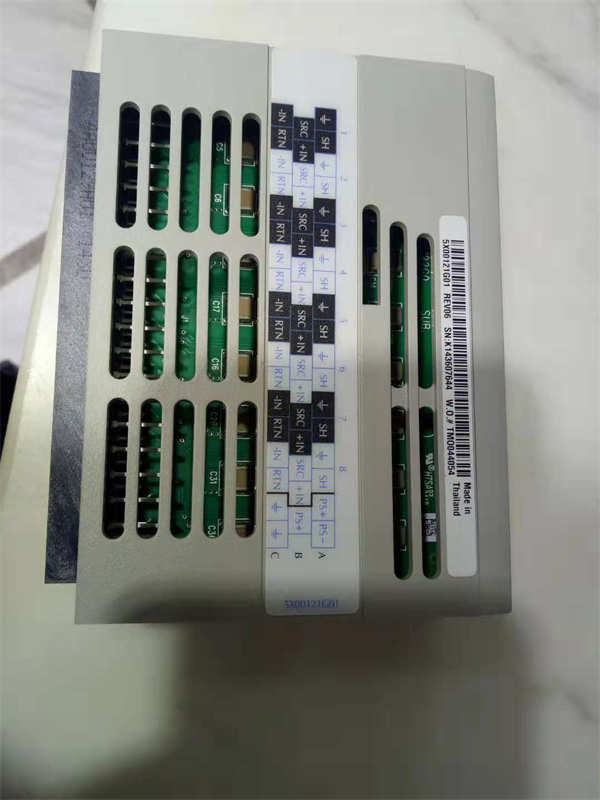

WESTINGHOUSE 5X00121G01

Technical Specifications

Main Features and Advantages

High-Power Switching Capability: The WESTINGHOUSE 5X00121G01 handles 5A continuous loads per channel with 20A inrush tolerance – ideal for motor starter coils or heater contactors. Form-C contacts allow flexible NO/NC configurations without external relays.

Advanced Arc Management: Integrated RC snubber networks and magnet blowout coils suppress arcing during inductive load disconnection, reducing contact erosion and preventing weld failures in critical safety circuits.

Seismic Resilience: Complies with IEEE 344 Class 2 seismic requirements (tested to 5g @ 5-35Hz), ensuring operation during earthquakes in nuclear facilities. Vibration-resistant terminal blocks prevent screw loosening.

Diagnostic Intelligence: Real-time monitoring detects contact welding (via current sensing), coil failures, and over-temperature conditions (>90°C). Front-panel LEDs indicate per-channel status for rapid troubleshooting.

Fail-Safe Flexibility: Each channel independently configures fail-safe state (open/closed) in Ovation Developer Studio software. Redundant command paths ensure command execution during backplane faults.

Application Field

The WESTINGHOUSE 5X00121G01 controls high-energy loads in safety-critical infrastructure:

Nuclear Power: Drives reactor coolant pump auxiliaries and containment spray valves (IEC 61508 SIL 2 certified)

Fossil Generation: Operates sootblower motors, fuel oil igniters, and turbine lube oil pumps in coal/gas plants

Water Management: Controls raw water intake sluice gates and high-voltage chlorination systems

Oil & Gas: Manages pipeline block valve actuators and compressor station ventilation fans

Mining: Switches conveyor belt drives and crusher motor starters in dusty environments

Discrete Manufacturing: Sequences industrial oven heaters and large hydraulic presses

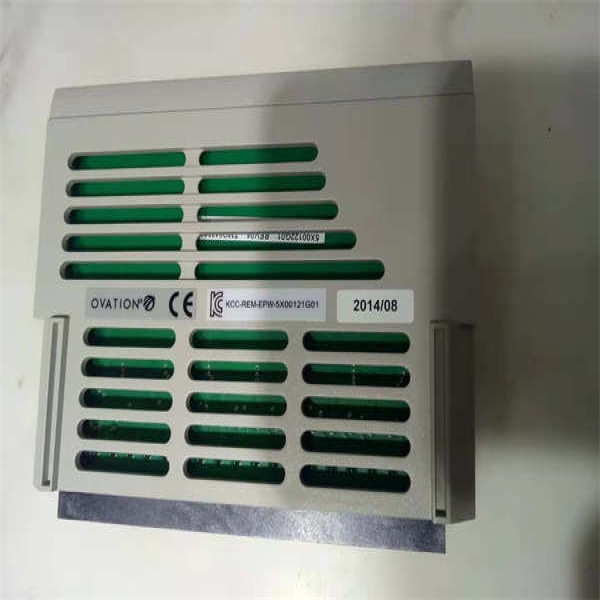

WESTINGHOUSE 5X00121G01

Related Products

5X00119G01 – Solid-state DC output module for high-speed switching

5X00120G01 – 120V AC digital output module

5X00497G01 – Ovation controller for 5X00121G01 command processing

5X00069G01 – 32-point digital input module for feedback monitoring

5X00485G01 – Redundant power supply for Ovation racks

5X00498G01 – Communication processor for DCS integration

5X00122G01 – High-current relay module (10A/channel)

5X00371G01 – I/O termination panel for field wiring

Installation and Maintenance

Pre-installation preparation: Verify rack compatibility (Ovation v3.5+ required). Configure fail-safe states and trip values in Ovation Developer Studio. Use 14-16 AWG wire for >2A loads. Install external fuses (>5A fast-acting) per IEC 60947-4-1 for motor loads.

Maintenance recommendations: Perform annual contact resistance testing (<100m monitor="" contact="" erosion="" via="" s="" predictive="" maintenance="" toolkit.="" replace="" relays="" exhibiting="">50ms operate time or contact chatter. Clean dust buildup quarterly with non-conductive vacuum. Exercise all channels monthly during plant turnarounds.<!--100mω).-->
