Description

The WESTINGHOUSE 5X00594G01 is a high-resolution vibration monitoring module engineered for Emerson’s Ovation DCS, delivering predictive maintenance capabilities for critical rotating machinery in power generation and heavy industries. This specialized module interfaces with IEPE-compliant accelerometers and proximity probes to capture real-time vibration spectra, phase, and bearing condition data with 100 kHz sampling resolution. The 5X00594G01 performs onboard FFT analysis (up to 6400 lines) and integrates with Ovation’s Machinery Health Manager software to detect imbalance, misalignment, cavitation, and rolling element bearing defects before catastrophic failures occur. Designed for SIL 2 safety applications, it provides redundant 4-20mA outputs for alarm tripping and supports Modbus TCP for integration with third-party condition monitoring systems.

Operating in extreme environments (-40°C to 85°C), the module features galvanic isolation (1500V AC) between channels and backplane to eliminate ground loops in turbine halls or compressor stations. Its patented adaptive filtering technology rejects structural resonance and process noise, enabling accurate detection of incipient gearbox failures in wind turbines or pump cavitation in nuclear cooling systems. The WESTINGHOUSE 5X00594G01 combines continuous monitoring with transient capture capabilities, storing 10-second waveform buffers during trip events for forensic analysis.

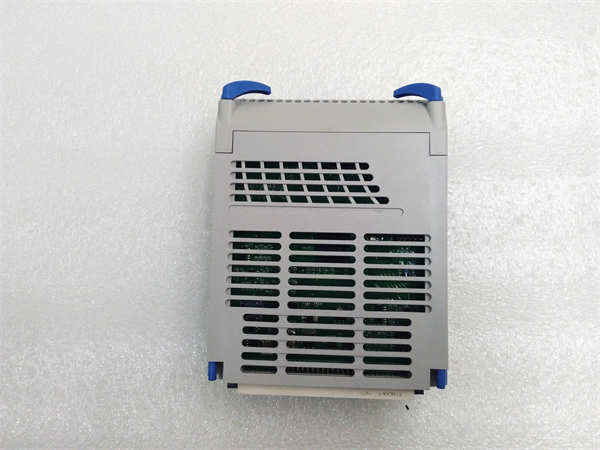

WESTINGHOUSE 5X00594G01

Technical Specifications

Main Features and Advantages

Advanced Diagnostics Engine: The WESTINGHOUSE 5X00594G01 performs real-time envelope detection for early bearing failure warnings and orbital analysis for shaft rub identification. Automated trend correlation compares vibration signatures against historical baselines.

Transient Capture Technology: Triggers on rate-of-change thresholds (0.1 ms resolution) to capture coast-down curves and resonance events. Time-synchronized waveform storage aids root cause analysis after turbine trips.

Environmental Hardening: Operates in high-RF environments (up to 30V/m EMI immunity) near VFDs. Seismic design (IEC 60068-3-3) withstands 5g vibration in hydroelectric plants.

Cybersecurity Integration: Supports Ovation Security Center role-based access and encrypted firmware validation. Audit trails log all configuration changes for compliance.

Calibration Automation: Onboard shunt calibration verifies sensor integrity without physical disconnection. Automatic sensor health diagnostics detect cable degradation or sensitivity drift.

Application Field

The WESTINGHOUSE 5X00594G01 protects high-value rotating assets:

Power Generation: Steam turbine supervisory protection (radial vibration, eccentricity), generator stator core monitoring

Hydrocarbon Processing: Compressor surge detection, pump cavitation monitoring in refineries

Water Management: Cooling tower fan imbalance detection, raw water pump bearing health

Renewables: Wind turbine gearbox diagnostics, solar tracker drive-train monitoring

Mining: Crusher vibration analysis, conveyor drive pulley alignment

Manufacturing: Paper machine roll vibration, steel mill rolling stand harmonics

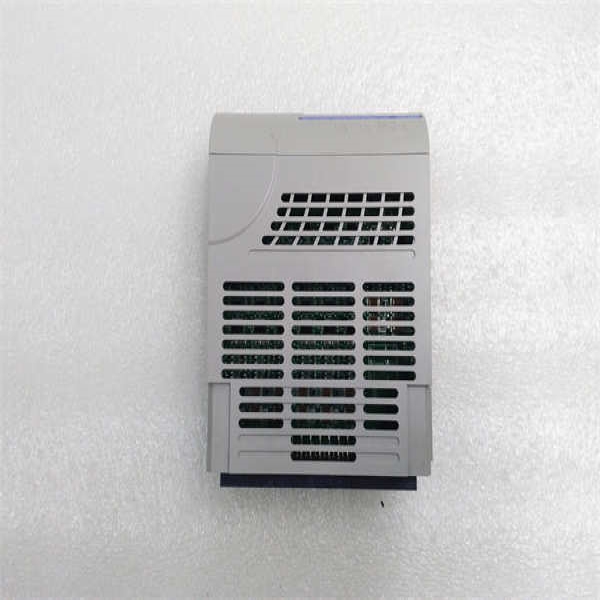

WESTINGHOUSE 5X00594G01

Related Products

5X00593G01 – 16-channel analog input module for auxiliary process signals

5X00595G01 – Tachometer interface module for phase analysis

KIT-004A-01 – IEPE accelerometer kit compatible with 5X00594G01

5X00497G01 – Ovation controller processing vibration analytics

5X00350G01 – DC-UPS backup for uninterrupted monitoring

5X00562G01 – Cybersecurity appliance for protected data transmission

2140-1201 – Proximity probe system (8mm) for shaft displacement

5X00596G01 – Machinery Health Manager software license

Installation and Maintenance

Pre-installation preparation: Verify sensor compatibility (2-20mA IEPE constant current). Route shielded twisted pairs separately from power cables. Establish baseline vibration profiles during commissioning. Configure alarm setpoints per ISO 10816 machine class.

Maintenance recommendations: Perform quarterly sensor calibration verification via shunt test. Monthly review of spectral baselines for deviation. Replace modules showing >3% gain drift. Clean vibration connector contacts annually with electronic-grade cleaner. Store waveform captures for 5 years per asset management policies.
