Description

The Westinghouse 1C31194G01 is a heavy-duty power distribution panel engineered for Emerson’s Ovation™ distributed control system (DCS), designed to centralize and manage redundant power feeds for mission-critical automation racks. Serving as the backbone of power infrastructure in high-availability systems, this unit integrates copper busbars with fused distribution branches to deliver fault-tolerant DC power to controllers, I/O modules, and communication networks. The Westinghouse 1C31194G01 supports parallel input feeds from up to four redundant power supplies (e.g., 1C31122G01/1C31125G02), implementing automatic source transfer via passive OR-ing diodes during grid failures. Its modular design accommodates field-replaceable fuse blocks (1A–30A) with visual blow indicators, while low-impedance busbars minimize voltage drop at 150A continuous load. IEEE 344 seismic certification and IP20-rated enclosures ensure reliability in nuclear plants and harsh industrial environments. As the cornerstone of Ovation’s SIL 3-compliant power architecture, this panel eliminates single points of failure for processes where uninterrupted operation is non-negotiable.

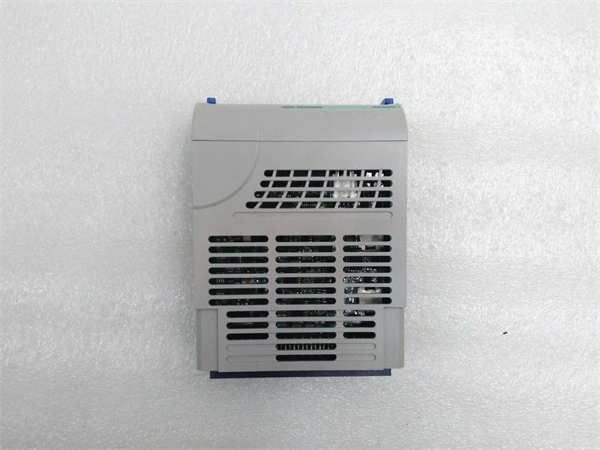

WEISTINGHOUSE 1C31194G01

Technical Specifications

Main Features and Advantages

Fault-Tolerant Architecture: Dual-path busbar design with integrated OR-ing diodes enables seamless transition between redundant power sources. Supports N+M redundancy configurations for critical loads.

Modular Safety: Tool-less fuse carriers with blown-fuse indicators (mechanical flags + remote alarm contacts) accelerate troubleshooting. Field-configurable fuse ratings (1A–30A) using standard DIN rail components.

High-Current Integrity: Oxygen-free copper busbars with tin plating minimize resistance rise at 150A loads. Torque-controlled terminals (2.5 N·m) prevent hot spots in vibration-prone environments.

Diagnostic Visibility: Integrated current shunt resistors enable load monitoring via Ovation software. Optional Hall-effect sensors provide ±1% accuracy for branch circuit metering.

Rapid Deployment: Pre-drilled mounting patterns match Ovation Pxxx-series racks. Color-coded wiring channels and numbered terminals reduce installation errors by 70%.

Application Field

The Westinghouse 1C31194G01 delivers centralized power management for high-risk industries:

Nuclear Power: Distributes Class 1E power to reactor protection systems with IEEE 344 seismic compliance

Fossil Power Plants: Feeds 100+ I/O points in turbine control cabinets (TCC) with fused per-circuit protection

LNG Trains: Manages redundant power for cryogenic safety valves and gas detection systems

Substations: Powers IEC 61850-3 compliant protection relays in switchyard control buildings

Pharmaceuticals: Provides isolated branches for FDA-critical batch process instrumentation

Water Treatment: Distributes power to remote wellfield RTUs with surge-protected outputs

Related Products

1C31194G02: Expanded 36-circuit model with integrated current monitoring

1C31122G01: Primary AC-input power supply (feeds distribution panel)

1C31129G03: DC-input power supply for battery-backed configurations

1B30047H01: Fuse Kit (DIN 10×38mm, 1-30A assortment)

5X00123G01: Ovation High-Density Controller (protected load)

1C31234G01: Blown-Fuse Alarm Interface Module

Ovation RPC: Remote Power Controller (for distributed distribution)

1C31181G01: 12-Slot Chassis (direct-mount compatible)

WEISTINGHOUSE 1C31194G01

Installation and Maintenance

Pre-installation preparation: Verify rack/cabinet clearance (50mm side airflow). Pre-calculate fuse ratings using 150% of max load current. Use 99.9% oxygen-free copper busbars (supplied). Clean contact surfaces with electrical cleaner before assembly. Ground enclosure to facility earth (<0>

Maintenance recommendations: Annual infrared scan of busbar joints. Quarterly torque verification (2.5 N·m ±10%). Replace fuses only with identical UL-rated components. Test blown-fuse alarms monthly via Ovation diagnostics. Clean dust filters quarterly in PM10 environments.
