Description

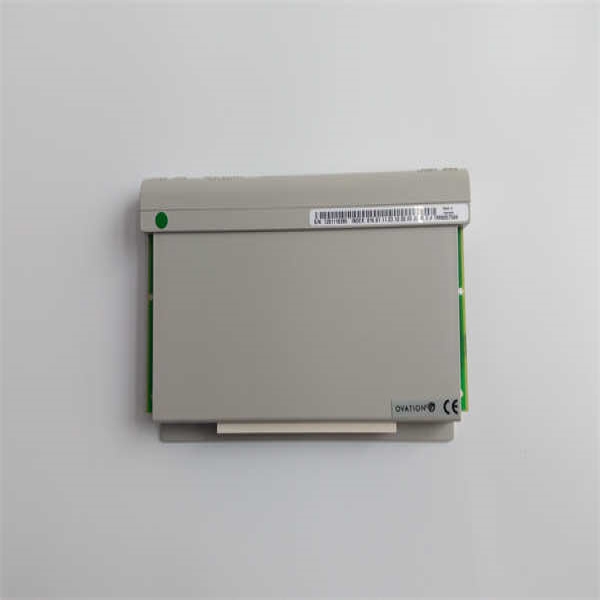

The Emerson Ovation 1C31219G01 is a high-density digital input module designed for Emerson’s Ovation DCS (originally developed by Westinghouse). This industrial-grade module provides 32 isolated contact input channels, engineered for monitoring critical discrete signals like motor statuses, valve positions, and alarm contacts in power generation, oil & gas, and water treatment facilities. As part of Ovation’s modular I/O system, the 1C31219G01 delivers millisecond response times for sequence-of-events (SOE) recording and integrates seamlessly with redundant controllers. Its robust design features per-channel optical isolation and built-in surge protection, ensuring reliable operation in electrically noisy environments.

The module supports both dry and wet contact inputs (120 VAC/VDC) and includes channel-level diagnostics for real-time fault detection. Hot-swappable architecture allows replacement without system shutdown when used in redundant configurations. The Emerson Ovation 1C31219G01 reduces cabinet footprint by 40% compared to legacy modules while maintaining compatibility with existing Ovation baseplates and controllers. Its industrial certifications ensure compliance in hazardous areas, making it ideal for turbine control rooms, substations, and offshore platforms.

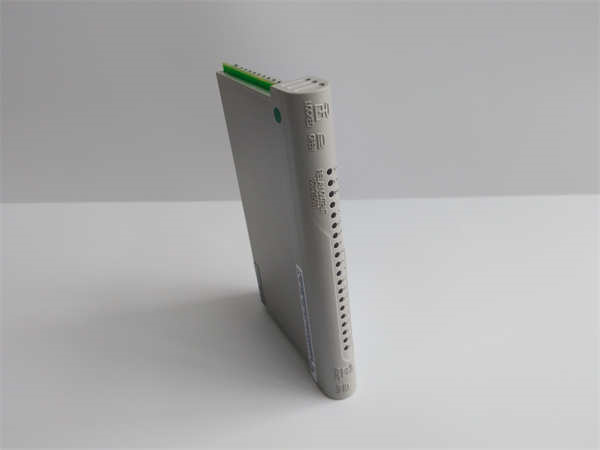

WESTINGHOUSE 1C31219G01

Technical Specifications

Main Features and Advantages

High-Density Monitoring: With 32 isolated channels in a single slot, the Emerson Ovation 1C31219G01 maximizes rack space efficiency while reducing wiring complexity. Critical Event Capture: Sub-millisecond SOE timestamping identifies fault sequences during plant upsets, crucial for root cause analysis in turbine trips or grid events. Intelligent Diagnostics: Per-channel LED status indicators and software-based health monitoring detect contact chatter, stuck inputs, and wiring faults.

Optical isolation eliminates ground loops and suppresses transient voltages up to 4 kV. The module’s wetting voltage support (24 VDC) ensures reliable reading of low-current contacts. Configuration flexibility allows grouping channels for alarm prioritization. Backplane-powered operation reduces external power supplies. Compliant with IEC 61000 EMC standards for surge immunity (4 kV) and ESD protection (8 kV contact discharge).

Application Field

The Emerson Ovation 1C31219G01 is indispensable in power plants for monitoring breaker statuses, protection relays, and emergency shutdown systems. In combined-cycle facilities, it captures turbine vibration alarms and flame detection signals with SOE precision. For water/wastewater SCADA systems, it tracks pump failures, filter-clog alerts, and chemical level switches.

Oil & gas platforms utilize this module for wellhead ESD valve positions and fire/gas detection inputs. In pharmaceutical manufacturing, it monitors cleanroom pressure differentials and safety interlock states. The 1C31219G01’s wide temperature tolerance makes it suitable for desert solar farms (inverter alarms) and arctic pipeline stations (freeze protection triggers).

Related Products

1C31232G01: 32-channel digital output module

1C31224G01: I/O baseplate for module mounting

1C31129G01: Ovation controller processor

1C31203G01: Redundant power supply

1C31194G03: Analog output module (16-channel)

5X00062G01: Terminal board for field wiring

Ovation CIOM: Compact I/O for remote cabinets

WESTINGHOUSE 1C31219G01

Installation and Maintenance

Pre-installation preparation: Verify baseplate compatibility (1C31224G01). Disconnect backplane power. Ground the rack and use ESD wrist straps. Configure channel voltage thresholds via Ovation Engineer Workstation before hardware installation.

Maintenance recommendations: Check contact wetting voltage quarterly using a multimeter. Monitor contact bounce metrics in Ovation Diagnostics Viewer. Replace during planned outages; redundant pairs allow hot-swapping. Clean terminal boards annually to prevent corrosion. Always use Emerson-approved firmware tools for updates.
