Description

The Emerson Ovation 1C31224G01 is a critical I/O baseplate module designed for Emerson’s Ovation DCS (originally Westinghouse technology). This rugged backplane component provides the physical and electrical interface for mounting and interconnecting Ovation I/O modules like the 1C31219G01 digital input or 1C31194G03 analog output. Engineered for high-availability systems, this baseplate delivers power distribution, signal routing, and communication pathways between field devices and Ovation controllers. Its industrial-grade construction supports hot-swapping of modules in redundant configurations, enabling zero-downtime maintenance in power plants and process industries.

The 1C31224G01 accommodates up to 8 I/O modules in a single rack, optimizing control cabinet space while ensuring signal integrity through gold-plated connectors and noise-filtered pathways. Integrated diagnostics monitor backplane health, reporting faults to the Ovation control network. Compatible with legacy Westinghouse WDPF systems, this baseplate simplifies migration to modern Ovation architecture while preserving existing wiring investments. Its vibration-resistant design meets IEEE 1613 standards for substation environments, making it essential for turbine control rooms, boiler management systems, and water treatment SCADA installations.

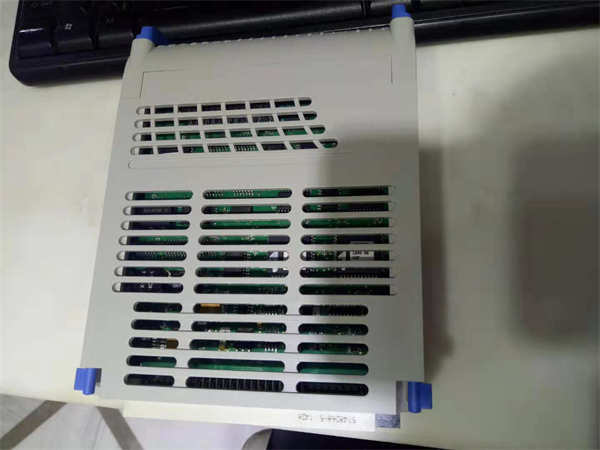

WESTINGHOUSE 1C31224G01

Technical Specifications

Main Features and Advantages

Modular Scalability: The Emerson Ovation 1C31224G01 supports mixed I/O configurations, allowing analog, digital, and specialty modules to coexist in one rack. Hot-Swap Capability: Tool-less module insertion/extraction enables maintenance without system shutdown when paired with redundant controllers. Signal Integrity: EMI/RFI filtering and impedance-controlled traces prevent cross-talk in high-noise environments like turbine halls.

Galvanic isolation between module slots eliminates ground loops. The baseplate’s power supervision circuitry detects under-voltage or over-current conditions, triggering alarms before faults propagate. Backward compatibility with Westinghouse WDPF modules reduces migration costs. Front-accessible diagnostic LEDs provide instant visual status of each slot. Conformal coating protects against corrosive atmospheres in coastal or chemical plants.

Application Field

The Emerson Ovation 1C31224G01 serves as the backbone for control systems in coal/gas power plants, hosting turbine governor I/O and burner management modules. In hydroelectric facilities, it integrates dam gate positioners and generator monitoring cards. For offshore oil platforms, this baseplate withstands salt spray while connecting safety shutdown system I/O.

Water treatment plants utilize it to centralize pump control and pH monitoring modules. In pharmaceutical manufacturing, it ensures GMP compliance by enabling validated module swaps during batch changes. The 1C31224G01’s extended temperature range supports desert solar farms (inverter control) and arctic LNG terminals (freeze protection systems).

Related Products

1C31219G01: 32-channel digital input module for baseplate

1C31194G03: 16-channel analog output module

1C31203G01: Dual power supply for baseplate

1C31129G01: Ovation controller processor

5X00062G01: Field termination assembly

1C31232G01: 32-point digital output module

Ovation CIOM: Compact baseplate for remote I/O

1C31227G01: Communication gateway module

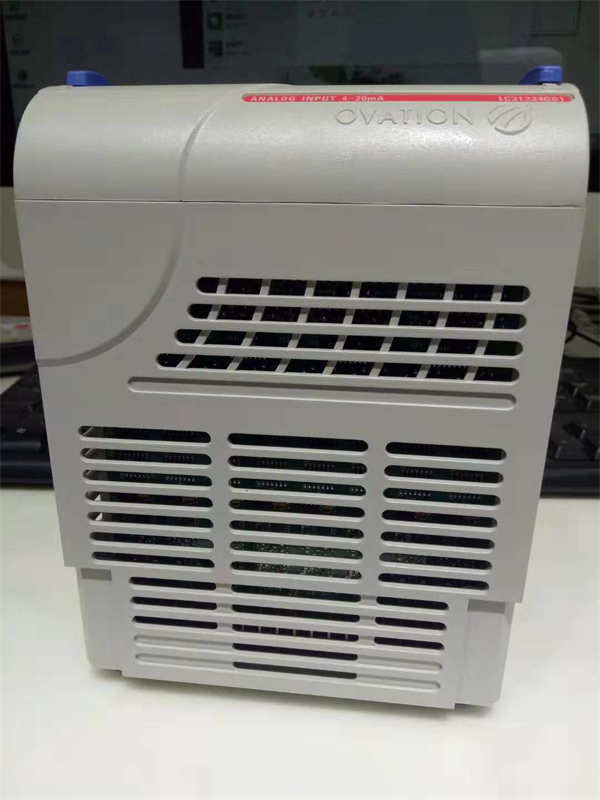

WESTINGHOUSE 1C31224G01

Installation and Maintenance

Pre-installation preparation: Verify rack grounding (≤5 Ω resistance). Disconnect all power sources. Use ESD-safe tools and wrist straps. Confirm compatible module firmware versions. Ensure ambient temperature within operating range before power-up.

Maintenance recommendations: Inspect backplane connectors annually for oxidation. Monitor slot diagnostics via Ovation Health Manager software. Clean air filters quarterly to prevent overheating. Replace only with Emerson-certified components. Before module insertion, verify alignment guides and connector engagement.
